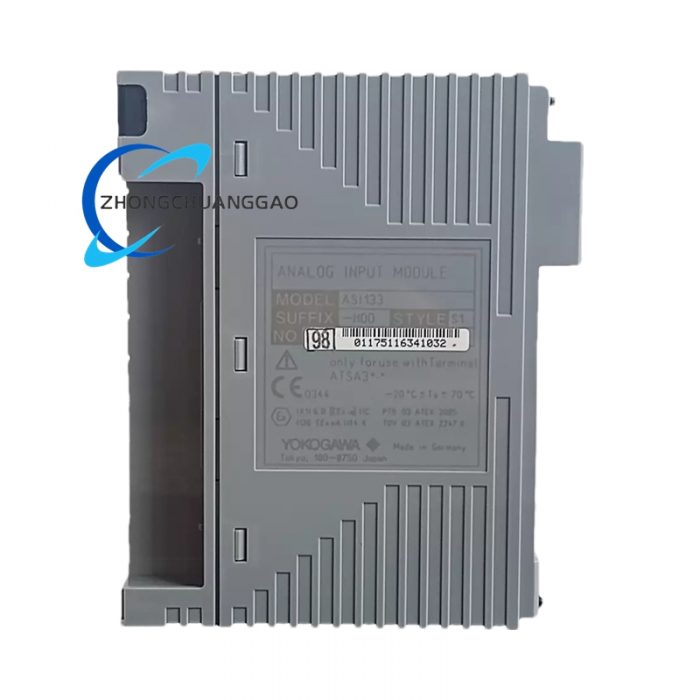

Product Short Description
- Input Range: 4–20 mA (standard industrial current loop signal)
- Channels: 8 independent analog input channels
- Isolation: Built-in barrier isolation to prevent signal interference and enhance system stability
- Communication Protocol: Supports HART communication for remote configuration, diagnostics, and calibration
- Temperature Range: -20°C to 70°C (operational), ensuring reliability in harsh environments
- Power Supply: 24 VDC
- Weight: Approximately 1.85 kg
- Dimensions: Compact design for DIN rail or panel mounting
- Certifications: FM and CSA safety approvals for hazardous locations (Class I, Division 2)
Description
Functional Features
- High-Precision Signal Conversion:
- Utilizes a high-resolution AD converter to achieve millivolt-level accuracy, minimizing measurement errors.
- Supports automatic gain control to adjust signal amplification dynamically, avoiding distortion.
- Multi-Channel Processing:
- Simultaneously processes 8 analog signals, enabling comprehensive monitoring of complex processes.
- Robust Isolation Design:
- Built-in barrier isolation protects the module and connected devices from electrical noise and surges.
- HART Communication Support:
- Facilitates remote device management, including parameter tuning, fault diagnosis, and firmware updates.
- Wide Temperature Tolerance:
- Operates reliably in environments ranging from -20°C to 70°C, suitable for outdoor or unconditioned spaces.
- Industrial-Grade Certification:
- FM and CSA approvals ensure safe use in explosive atmospheres, such as oil refineries or chemical plants.
- FM and CSA approvals ensure safe use in explosive atmospheres, such as oil refineries or chemical plants.
Application Scenarios
- Petrochemical Industry:
- Monitors pressure and temperature in reactors, distillation columns, and pipelines for safe and efficient operation.
- Power Generation:
- Controls boiler feedwater flow, turbine speed, and generator voltage in thermal and renewable energy plants.
- Oil & Gas:
- Manages wellhead pressure, separator levels, and compressor status in upstream and midstream operations.
- Water Treatment:
- Regulates chemical dosing, pump speed, and filtration efficiency in municipal or industrial wastewater systems.
- Pharmaceutical Manufacturing:
- Ensures sterile conditions by monitoring reactor temperature, pH, and agitator speed during batch processes.
Key Advantages
- Accuracy: High-resolution conversion and automatic calibration deliver consistent, reliable data.
- Flexibility: HART communication enables seamless integration with existing DCS or SCADA systems.
- Durability: Industrial-grade design withstands vibration, shock, and temperature extremes.
- Safety: Certified for hazardous environments, reducing installation complexity and compliance risks.
- Scalability: Modular architecture allows easy expansion as process demands grow.
