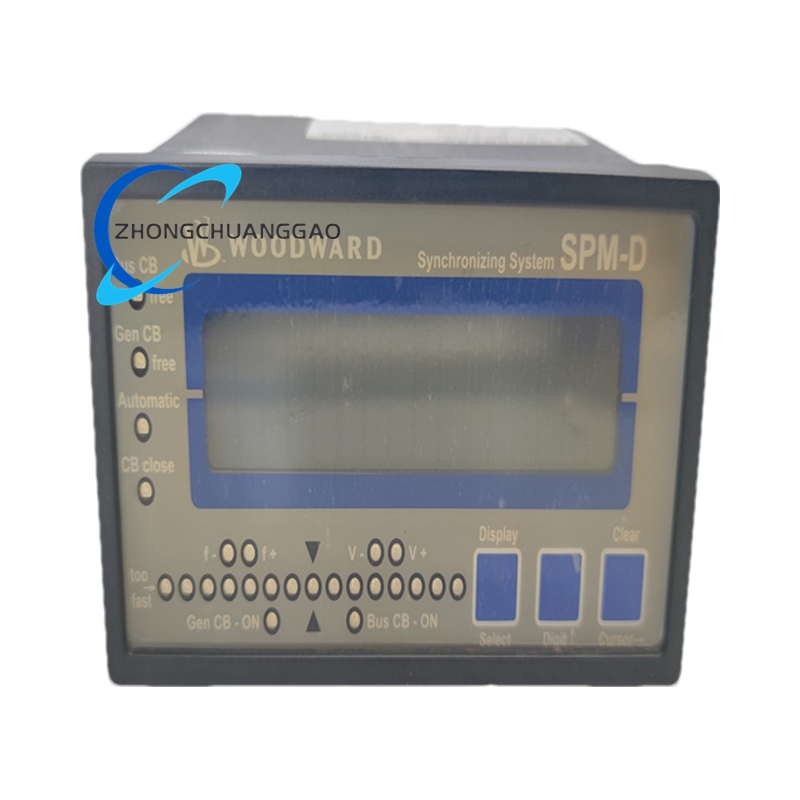

Product Short Description
- Power Supply: 12/24 VDC
- Dimensions: 144 mm × 72 mm × 122 mm
- Weight: ≥800 g
- Display: Two-line LCD for real-time diagnostics and alarm indicators
- Protection:
- Front panel: IP42
- Rear panel: IP24
- Control Output:
- Switch-based speed/load adjustment
- Switch-based voltage/power factor control
- Analog output for voltage/speed bias (configurable ranges: ±1 V, ±3 V, 0–5 V, 0.5–4.5 V, ±10 V, ±5 V, 0–20 mA, ±20 mA)
- Certifications: Complies with industrial standards for safety and reliability.
Description
Functional Features
- Synchronization Control:
- Automatically matches frequency, phase, and voltage levels during generator startup or grid connection.
- Supports phase matching or slip frequency synchronization for flexible operation.
- Load Management:
- Enables isochronous load sharing to distribute power evenly across multiple generators.
- Provides real power control and true RMS power calculation for optimized energy use.
- Protection Mechanisms:
- Monitors over/under-voltage (59/27), over/under-frequency (81O/U), reverse power (32R/F), and overload (32) conditions.
- Includes generator single-phase current and two-phase voltage sensing for fault detection.
- Soft Unloading: Gradually reduces load to prevent system instability during disconnection.
- Multi-Level Password Protection: Secures parameter settings against unauthorized changes.
- Multi-Language Support: Interface available in English and German.
Application Scenarios
- Power Generation Plants:
- Manages synchronization and load sharing in gas, steam, or hydro turbine systems.
- Ensures stable grid connection and fault protection in renewable energy installations (e.g., wind farms, solar plants).
- Industrial Automation:
- Controls motors in manufacturing lines, ensuring precise speed and load regulation.
- Integrates with PLC systems for process automation in chemical, petrochemical, and metallurgical industries.
- Marine Applications:
- Synchronizes generators on ships to maintain power stability during load fluctuations.
- Supports emergency power systems by enabling rapid, safe generator startup.
- Critical Infrastructure:
- Provides backup power control for hospitals, data centers, and airports.
- Manages distributed generation systems in microgrids for energy resilience.
Key Advantages
- High Reliability: Industrial-grade design withstands harsh environments (-40°C to +70°C operating temperature).
- Flexibility: Compatible with Woodward and third-party speed controllers/voltage regulators.
- Ease of Use: Two-line LCD and intuitive interface simplify setup and monitoring.
- Cost Efficiency: Reduces downtime and maintenance costs through proactive fault detection and load balancing.
