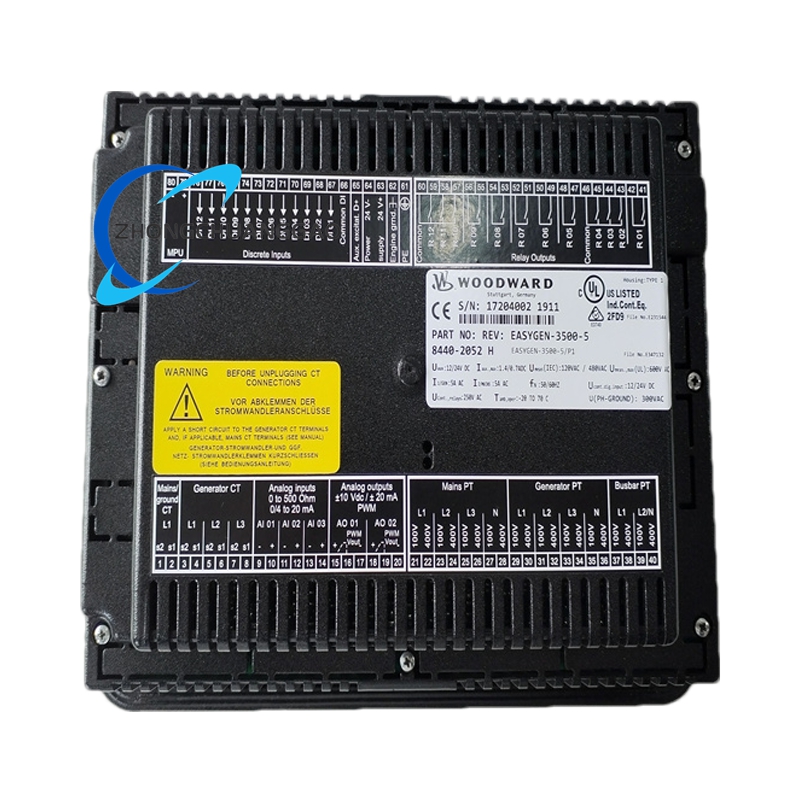

Description
-
Analog Inputs
-
3 × voltage inputs: 0–600 V AC, ±0.2 % FS
-
3 × current inputs: 0–5 A AC, ±0.3 % FS (CT secondary)
-
2 × temperature inputs: PT100/PT1000, –50 °C to +200 °C
-
-
Digital I/O
-
8 × isolated digital inputs (24 V DC, <5 ms response)
-
6 × relay outputs (250 V AC / 5 A, NO/NC)
-
2 × PWM outputs (12-bit, 1 Hz–10 kHz)
-
-
Communications & Protocols
-
RS-485 Modbus RTU (master/slave, 1.2–115.2 kbps)
-
10/100 Mbit Ethernet: Modbus TCP, SNMP, embedded web server
-
CANopen (CiA 402) for drive control
-
SAE J1939 for engine ECU data
-
IEC 61850 for substation automation
-
-
Power Supply
-
8–32 V DC, maximum consumption 18 W
-
-
Environmental Ratings
-
Operating: –40 °C to +70 °C
-
Storage: –55 °C to +105 °C
-
Humidity: 95 % RH non-condensing at 38 °C
-
Functional Features
-
Voltage & Frequency Control
-
Voltage regulation: ±0.5 % steady state
-
Frequency regulation: ±0.05 Hz (50/60 Hz selectable)
-
Droop and isochronous modes for single- or parallel-running sets
-
-
Power-Factor & Reactive Power Management
-
Constant PF (0.8 lag/lead) or constant kVAr mode
-
Reactive power distribution accuracy ±3 % when paralleled
-
Dynamic VAr compensation <100 ms
-
-
Synchronization & Load Sharing
-
Auto-sync thresholds: ±5 % V, ±0.2 Hz f, ±10° phase
-
Black-start capability for islanded or grid-forming operation
-
Active power share accuracy ±2 % via droop or isochronous load sharing
-
-
Comprehensive Protection
-
Over/under-voltage, over/under-frequency, over-current, short-circuit, reverse power
-
Overspeed, low oil pressure, high coolant temperature via J1939 or discrete inputs
-
Fault recorder: 5 pre-trigger + 10 post-trigger cycles @ 16 kHz, CSV export
-
-
User Interface & Service Tools
-
Front-panel HMI: 7-segment display, LEDs, keypad
-
RP-3000 remote panel support up to 250 m via CANopen
-
Woodward ToolKit PC configuration software
-
Application Scenarios
-
Emergency & Standby Power: Data centers, hospitals, commercial and industrial facilities
-
Distributed Generation & Microgrids: Peak-shaving, renewable-energy integration, zero-net-energy communities
-
Marine & Offshore: Ship power stations, oil & gas platforms, remote island grids
-
CHP Systems: Wastewater treatment, biogas plants, industrial cogeneration
-
Retrofit & Upgrade: Adding parallel operation, load sharing, and advanced protection to legacy switchgear .
