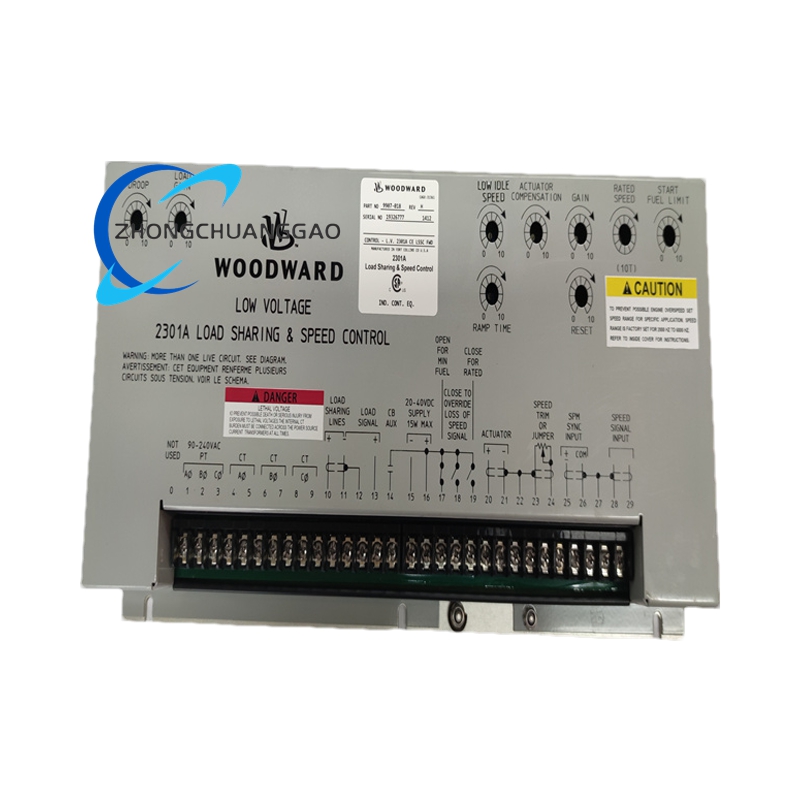

Woodward 2301A 9907-018

Description

• Power Consumption: ≤ 15 W nominal
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Vibration: 5g
• Weight: 1.758 kg
• Chassis: Metal

Functional Features

• Load Sharing and Speed Control: Optimizes load sharing and speed control for diesel, gasoline engines, steam, or gas turbines.
• Working Modes:
  • Isochronous Mode: Maintains constant speed for single or multiple prime movers on an isolated bus.
  • Droop Mode: Speed control as a function of load for single or multiple prime movers on an infinite bus.
• Signal Input:
  • Load Sensing: 90–240 Vac 3-phase, 45–66 Hz
  • Speed Sensor Input: 100–300 Ω, 1.0 Vac minimum to 30 Vac
• Output:
  • Actuator: 7.5 Vdc max for 0 to 214 mA with 35 Ω coil
• Adjustments:
  • Speed Setting: 0–100 Ω for 0 to 10% speed change
  • Load Sharing: 0–6 Vdc
• Additional Features:
  • Forced-Switch Diagnostics (FSD)
  • Deceleration Ramp: Optional, approximately 20 seconds from rated speed to idle
  • Reverse-Acting Capability: Allows more fuel when actuator voltage decreases

Applications

• Prime Movers: Diesel engines, gas engines, steam turbines, gas turbines
• Operating Modes:
  • Single prime mover operation
  • Multiple prime movers on an isolated bus
  • Base loading against an infinite bus with load control accessories
• Industries:
  • Power Generation
  • Oil and Gas Production
  • Water and Wastewater Treatment
  • Industrial Manufacturing
