Product Short Description
1. Technical Specifications
• Display: 10.4-inch TFT LCD, 640 × 480 pixels (VGA), 256 colors, CCFL backlight
• Touch: analog-resistive, single-touch, 2 million operations rating
• Processor: 32-bit RISC CPU, 32 MB user Flash, 8 MB SSFDC slot for cards
• Memory: 32 MB onboard + 16 KB recipe memory
• Real-time clock: battery-backed, ±1 min/month drift
• Communication: RS-232, RS-422, RS-485, Ethernet 10/100 Base-T
• Power: 18 – 30 VDC, 700 mA max @ 24 V (≈ 17 W)
• Mechanical: front 311 × 220 mm, cut-out 292 × 202 mm, panel thickness ≤ 5 mm
• Weight: 2.7 kg
• Environmental: 0 °C to +50 °C operating, −20 °C to +70 °C storage, 5 – 95 % RH non-condensing
• Protection: IP65 front, IP20 rear
Description
2. Functional Highlights
• VGA output up to 1920 × 1440 @ 60 Hz external monitor support
• Multilingual projects (Unicode fonts, scalable user fonts)
• 1024 alarms / 256 alarm pages, event recorder, password levels
• Screen saver, brightness control, 8 user LEDs, 11-key keypad
• Web server, FTP, SNMP for remote maintenance
• VGA output up to 1920 × 1440 @ 60 Hz external monitor support
• Multilingual projects (Unicode fonts, scalable user fonts)
• 1024 alarms / 256 alarm pages, event recorder, password levels
• Screen saver, brightness control, 8 user LEDs, 11-key keypad
• Web server, FTP, SNMP for remote maintenance
3. Application Scenarios
• Machine control: CNC, packaging, robotics
• Process visualization: chemical, pharmaceutical, food & beverage
• Energy & utilities: substation, solar inverter, pump station SCADA
• Transport & logistics: baggage handling, AGV guidance
• OEM panels: printing presses, textile machines, test rigs
• Machine control: CNC, packaging, robotics
• Process visualization: chemical, pharmaceutical, food & beverage
• Energy & utilities: substation, solar inverter, pump station SCADA
• Transport & logistics: baggage handling, AGV guidance
• OEM panels: printing presses, textile machines, test rigs
4. Mounting & Integration
• Flush panel or VESA mount (100 mm pattern)
• DIN-rail power adapter optional for 24 V rail integration
• Cable glands PG-11 (front) and PG-16 (rear) for sealing
• Tool chain: UniOP Designer 6.x, OPC server, ActiveX objects
• Flush panel or VESA mount (100 mm pattern)
• DIN-rail power adapter optional for 24 V rail integration
• Cable glands PG-11 (front) and PG-16 (rear) for sealing
• Tool chain: UniOP Designer 6.x, OPC server, ActiveX objects
5. Ordering Package

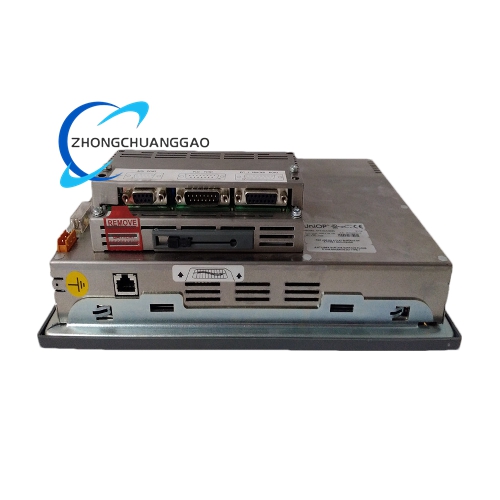

• ETT-VGA-0045 HMI unit with resistive touch
• Mounting clips and gasket
• Quick-start guide, electronic manual on CD
• 365-day factory warranty
• ETT-VGA-0045 HMI unit with resistive touch
• Mounting clips and gasket
• Quick-start guide, electronic manual on CD
• 365-day factory warranty
