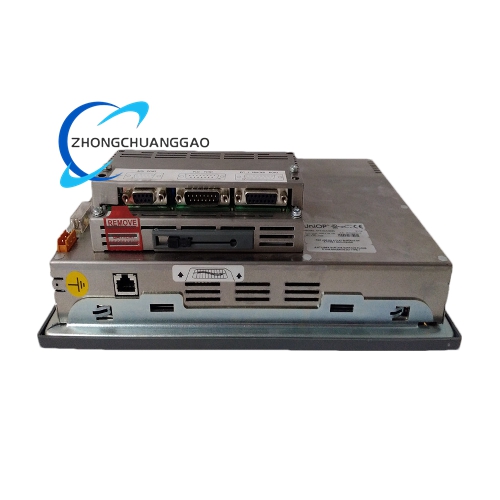

UNIOP ETT-VGA-0045

Description

• Connectivity:
  • Interfaces: VGA (for display), USB, RS-232, RS-485, Ethernet (via CEX-Bus expansion).
  • Expansion: Modular CEX-Bus for additional protocols (e.g., PROFIBUS, Modbus, Ethernet/IP).
• Physical Attributes:
  • Dimensions: 50mm × 30mm × 10mm to 146mm × 102mm × 32mm (depending on model).
  • Weight: Approximately 300 grams.
  • Enclosure: IP20-rated for industrial environments.
• Power:
  • Input: 5V DC / 12V DC with isolation.
• Environmental Resistance:
  • Operating Temperature: -10°C to +60°C.
  • Storage Temperature: -25°C to +85°C.
  • EMC Compliance: High immunity to electromagnetic interference.

Functional Features

• High-Resolution Visualization:
  • Displays real-time process data, trends, and alarms with VGA clarity.
  • Supports graphical elements (e.g., bar graphs, meters, icons) for intuitive monitoring.
• Multi-Protocol Communication:
  • Native support for serial (RS-232/RS-485) and Ethernet protocols via expansion modules.
  • Seamless integration with PLCs, RTUs, and SCADA systems.
• User-Friendly Interface:
  • Customizable screens with drag-and-drop design tools (e.g., UniOP Designer for Windows).
  • Eight configurable function keys and eight user-defined LEDs for quick access.
• Data Management:
  • Built-in real-time clock for time-stamped event logging.
  • Alarm management with 1,024 configurable alarms and 256-event history storage.
• Security:
  • Eight-level password protection to restrict access to critical functions.
• Reliability:
  • Industrial-grade components for 24/7 operation in harsh environments.
  • Hot-swappable design for minimal downtime during maintenance.

Application Scenarios

• Industrial Automation:
  • Controls and monitors production lines, packaging machinery, and robotic systems.
• Process Control:
  • Manages chemical, pharmaceutical, or food and beverage manufacturing processes.
• Power Generation:
  • Operates turbine controls, boiler systems, and electrical substation automation.
• Building Management:
  • Integrates with HVAC, lighting, and security systems for smart facility control.
• Water Treatment:
  • Monitors and adjusts parameters in wastewater treatment plants.
• Medical Equipment:
  • Provides operator interfaces for medical device control and status display.

Key Advantages

• Cost-Effective: Balances performance and affordability for small to mid-scale applications.
• Scalable: Modular design supports protocol expansion and I/O customization.
• Easy Integration: Compatible with major PLC brands (e.g., Siemens, Allen-Bradley, Schneider Electric).
• Durable: Built to withstand vibration, dust, and temperature extremes.
