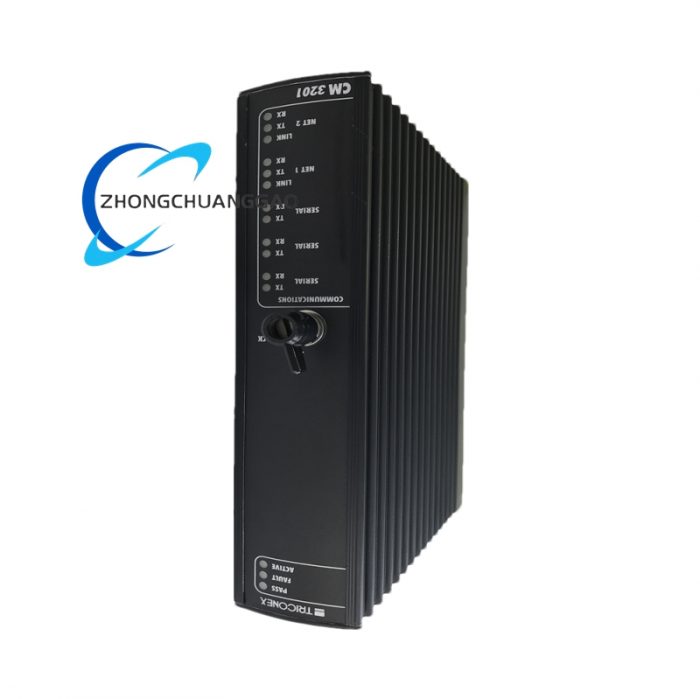

Description
Technical Specifications
-
Power Supply: 24 VDC (19.2 – 30 VDC with 5 % AC ripple)
-
Power Interruption Tolerance: < 1 ms
-
Power Consumption: ≈ 6 W
-
Operating Temperature: –40 °C to +70 °C
-
Storage Temperature: –40 °C to +85 °C
-
Dimensions: 22 cm × 16.9 cm × 4.4 cm
-
Weight: 1.24 kg
-
Mounting: DIN-rail or 19-inch rack adapter
Network Interfaces
-
Ethernet: 100 Mbps full-duplex (RJ-45)
-
Serial: RS-485 / RS-232 (isolated)
-
Fieldbus: Profibus DP, DeviceNet, ControlNet (option cards)
Supported Protocols
-
Modbus TCP/IP
-
Modbus RTU/ASCII
-
Profibus DP-V0/V1
-
EtherNet/IP
-
HART pass-through
Memory & Performance
-
Flash: 32 MB for user programs and configuration
-
RAM: 8 MB cyclic buffer for event logs
-
Update Rate: 1 kHz for safety data exchange
-
Latency: < 5 ms across redundant links
Functional Features
-
Triple-Module Redundancy (TMR): All critical paths voted 2-out-of-3
-
Hot-swap: Replace module online without loss of safety function
-
Built-in diagnostics: Continuous self-test, fault isolation, and status LEDs
-
Auto-switchover: Seamless switch to backup link < 5 ms on failure
-
Configurable routing: Static or dynamic routing tables for complex architectures
Applications
-
Petrochemical & Refinery: Communication between Triconex main rack and remote DI/DO/AI/AO racks
-
Chemical Plants: Redundant link to DCS, HMI, and historians
-
Power Generation: Turbine protection system integration with plant SCADA
-
Offshore Platforms: Long-distance fiber-optic links to topside control room
-
Pipeline & Storage: Safety system data aggregation at remote pump stations
