Product Introduction

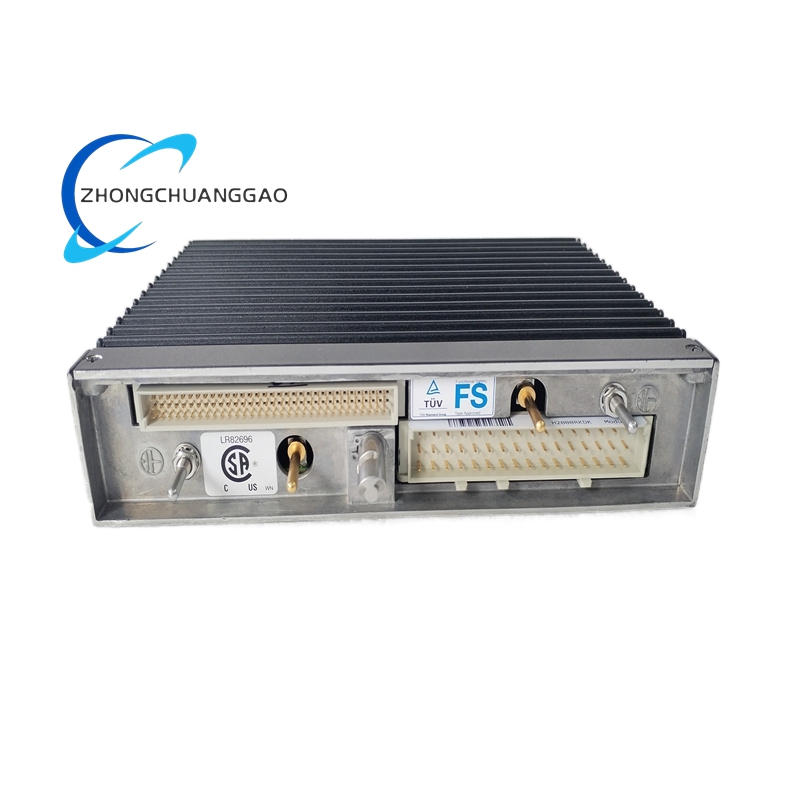

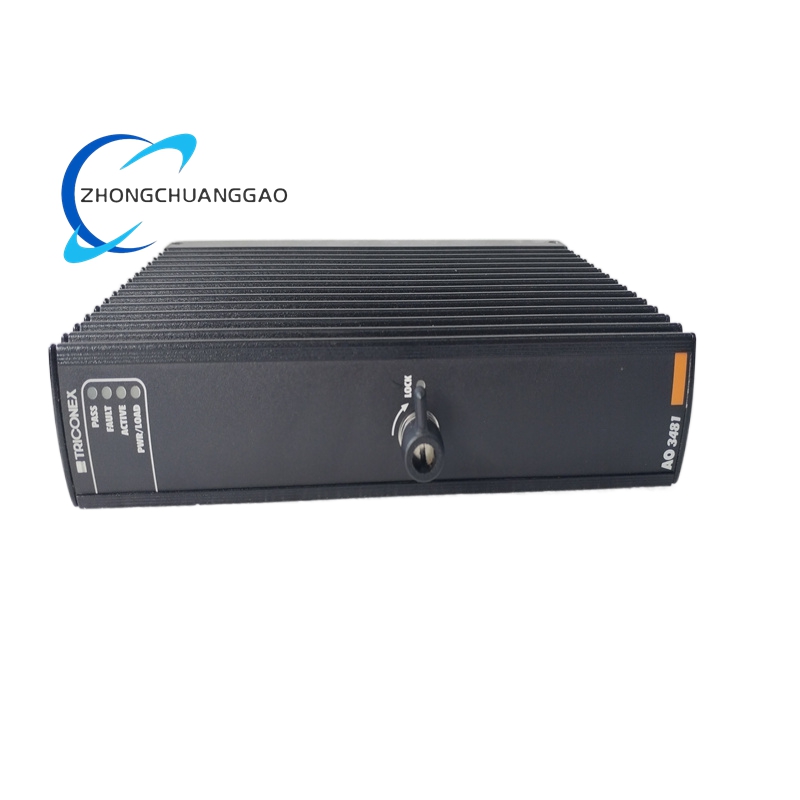

The GE (Triconex) AO3481 is an 8-channel analog output module designed for safety-critical industrial control and safety instrumented systems (SIS), part of the Triconex Tricon platform. It delivers high-precision, isolated 4-20mA current and 0-10V voltage outputs, integrating triple modular redundancy (TMR) technology with 2oo3 voting logic to ensure fault tolerance and uninterrupted operation in safety-critical applications. Certified to SIL3/PLd per IEC 61508 and IEC 62061, it provides reliable analog control signals to actuators, valves, and process instruments in harsh industrial environments. The module features hot-swappable design, advanced diagnostics, and seamless integration with Tricon controllers, making it ideal for applications where precision, safety, and availability are paramount.
Description
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE (Triconex, a GE Digital subsidiary) |
| Model | AO3481 |
| Product Type | 8-Channel Isolated Analog Output Module (TMR Architecture) |
| Number of Output Channels | 8 isolated analog output channels |
| Output Signal Types | 4-20 mA DC (current); 0-10 V DC (voltage, switchable per channel) |
| Resolution | 16 bits (both current and voltage outputs) |
| Output Accuracy | ±0.1% of full scale (at 25°C) |
| Output Update Rate | ＜10 ms (channel-to-channel) |
| Isolation | Channel-to-channel: 500 V DC; Channel-to-backplane: 1500 V DC |
| Backplane Communication | Tricon TMR backplane (compatible with Tricon controllers and I/O carriers) |
| Operating Temperature Range | -40°C to +75°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% – 95% (non-condensing) |
| Mounting Type | Tricon standard chassis slot (hot-swappable) |
| Dimensions | 100 mm (W) × 160 mm (H) × 220 mm (D) |
| Weight | 1.2 kg |
| Certifications | SIL3/PLd (IEC 61508, IEC 62061); CE; UL; ATEX/IECEx (Zone 2/Division 2) |
| Redundancy | TMR architecture with 2oo3 voting; supports redundant power and backplane connections |
| Diagnostics | Self-test, channel-level fault monitoring, event logging, alarm outputs |
Functional Features
- 8 Isolated Output Channels: Provides 8 independent, isolated channels for 4-20mA/0-10V signals, eliminating cross-talk and ensuring signal integrity in noisy industrial environments.
- TMR Fault Tolerance: Implements triple modular redundancy with 2oo3 voting, ensuring continuous operation even if one channel or module component fails.
- High Precision & Accuracy: 16-bit resolution and ±0.1% full-scale accuracy deliver precise control for critical process variables like flow, pressure, and level.
- Hot-Swappable Design: Allows on-line replacement without system shutdown, minimizing downtime and maximizing plant availability.
- Advanced Diagnostics: Built-in self-test, channel fault monitoring, event logging, and alarm outputs enable real-time health checks and rapid troubleshooting.
- Wide Environmental Compatibility: Operates from -40°C to +75°C and 5%-95% non-condensing humidity, withstanding extreme temperatures, vibration, and dust in industrial sites.
- Safety-Certified: SIL3/PLd certification ensures compliance with global safety standards for safety-critical applications in oil and gas, chemical, and power industries.
- Flexible Signal Configuration: Each channel can be independently configured for 4-20mA or 0-10V output, adapting to diverse actuator and instrument requirements.
- Seamless Tricon Integration: Communicates via Tricon TMR backplane, integrating with Tricon controllers and other I/O modules for unified system control.
- Secure Firmware Updates: Supports secure boot and encrypted firmware updates to protect against unauthorized access and ensure system integrity.
Application Scenarios
- Safety Instrumented Systems (SIS): Powers emergency shutdown (ESD) valves, burner management systems, and fire/gas safety loops in Zone 2/Division 2 hazardous areas, complying with SIL3 requirements in refineries and chemical plants.
- Process Control in Oil & Gas: Controls wellhead chokes, pipeline flow regulators, and separation plant valves, delivering precise analog signals for upstream/midstream operations.
- Chemical & Petrochemical Plants: Regulates reactor temperature, pressure, and feed rates via 4-20mA/0-10V signals, ensuring safe and efficient process control in explosive atmospheres.
- Power Generation: Controls turbine governors, boiler feedwater valves, and emissions monitoring systems in thermal, hydro, and nuclear power plants, maintaining stable operation of critical equipment.
- Water & Wastewater Treatment: Operates chemical dosing pumps, flow control valves, and aeration systems, ensuring compliance with environmental regulations and process efficiency.
- Marine & Offshore Installations: Ideal for offshore platform control panels and shipboard automation, withstanding salt spray, vibration, and voltage fluctuations while meeting hazardous area certifications.
- Mining & Heavy Industry: Controls conveyor speed, crusher settings, and material handling systems, providing reliable analog output in dusty, high-vibration, and extreme-temperature conditions.
