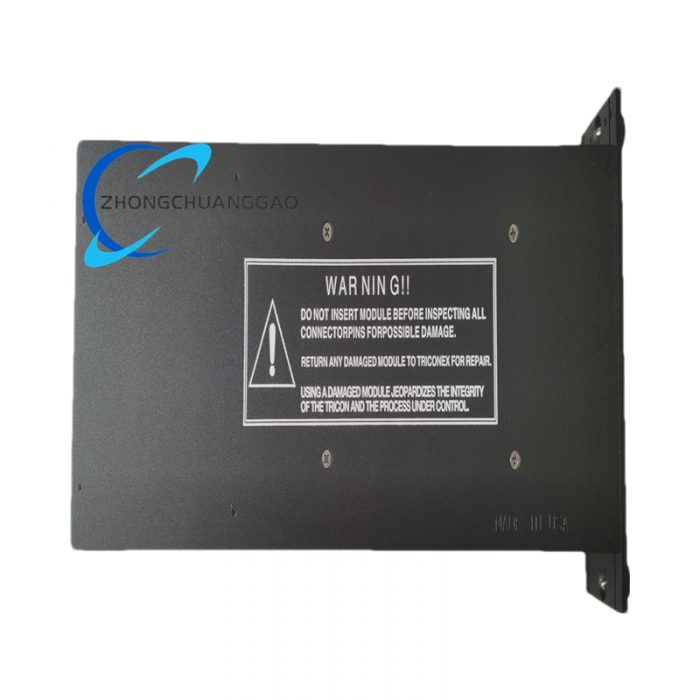

Triconex 3201 Communication Module

Product Short Description

Technical Specifications

Processor: 32 – bit RISC processor with a main frequency of up to 33.33 MHz.
Memory: Supports up to 512 MB DDR SDRAM, and can also use SSD hard – drive or SD card for storage.
Power Supply: The input voltage is 24V DC, and the output voltage is 24V DC, with a power consumption of less than 50W.
Operating Temperature Range: – 40°C to +70°C or +85°C (for some models).
Protection Level: IP65 or IP67.
Communication Interface: Usually has 3 configurable RS – 232/485 serial ports and 2 Ethernet ports (10BaseT/100BaseTX).
Redundancy Design: Supports triple – mode fault – tolerance technology (TMR).

Description
Reviews (0)

Description

- Input/Output Modules: Supports digital input/output modules, with a maximum configuration of 96 digital inputs and 48 digital outputs.
- Communication Protocol: Supports various industrial communication protocols, such as Modbus RTU/TCP (master/slave), TCP/IP, UDP/IP, TriStation, TSAA, SNTP, Jet Direct, Peer – to – Peer.
- Data Transmission Rate: The total serial port data transmission rate is 460.8 kbps.
- Installation Method: Slot – type installation in the system rack.
Function Features
- High Reliability: The triple – mode redundant design ensures that the system can still operate normally even if a single module fails, meeting the IEC 61508 SIL 3 standard.
- Modular Design: Easy to expand and maintain, which can adapt to the needs of different industrial environments.
- Real – time Monitoring: With a fast sampling rate, it can monitor key parameters in real – time and respond to abnormal situations in a timely manner.
- High – performance Processing: Supports high – speed data processing and real – time control logic execution.
- Flexible Configuration: Supports a variety of communication protocols and interfaces, which can meet the needs of different industrial scenarios. It also supports optional redundant communication connections.
Application Scenarios
- Petroleum and Natural Gas Industry: Used for production process control and safety monitoring in oil and gas fields, ensuring the safe operation of production facilities.
- Chemical Industry: Applied to the monitoring and control of chemical production processes, providing safety protection for chemical production.
- Power Industry: Used in the DCS monitoring system of power plants, as well as the safety protection of power generation and substation, to ensure the stable operation of the power system.
- Other Industries: Also applicable to industries with high – safety requirements, such as pharmaceuticals, metallurgy, and rail transit, playing a key role in safety automation and efficient operation, and ensuring the effective implementation of production process monitoring, control, and emergency shutdown functions.
