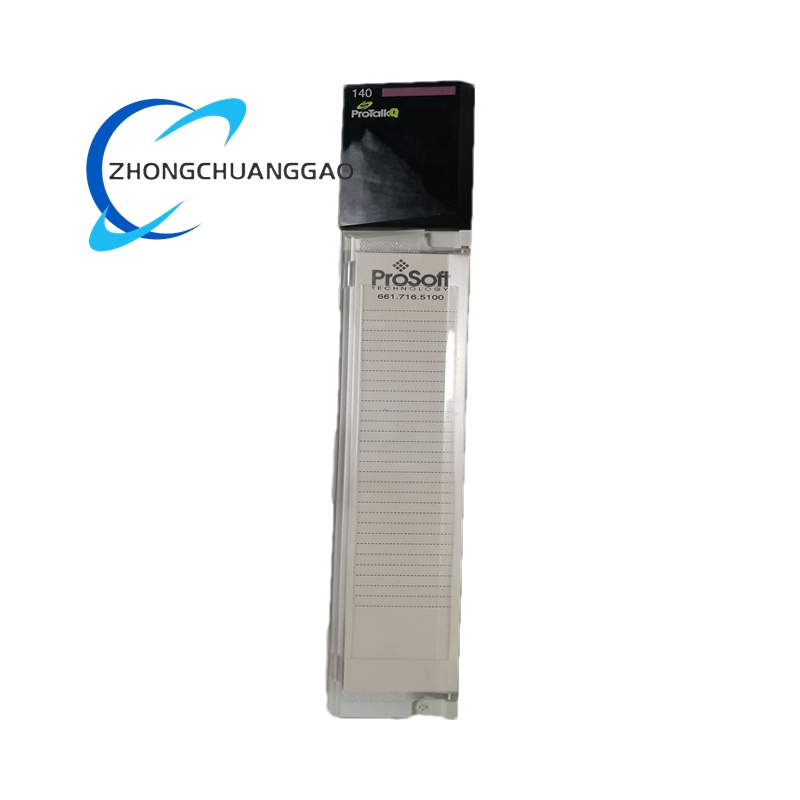

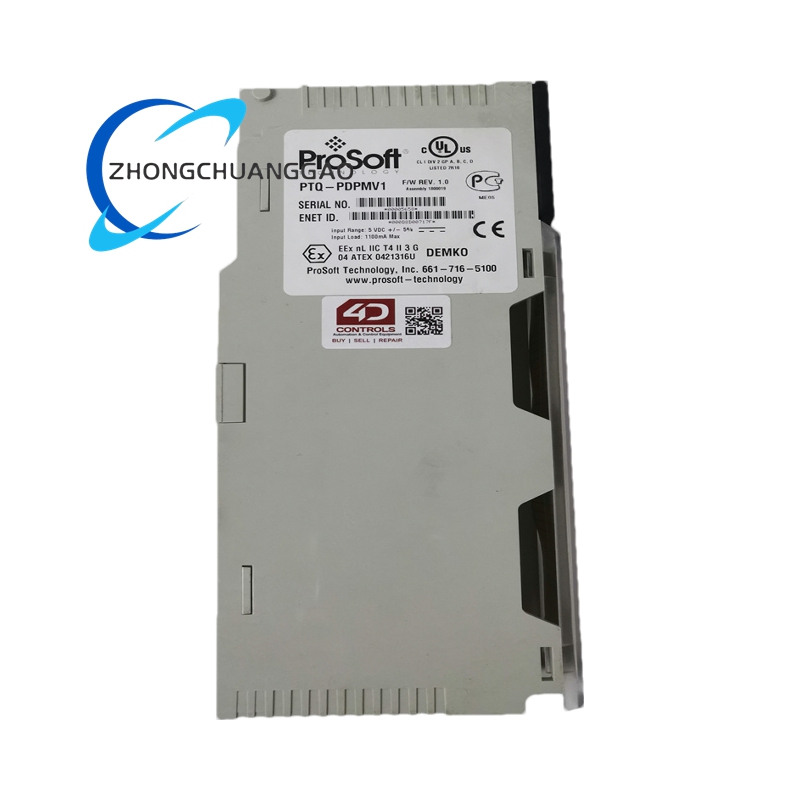

Product Short Description
Technical Specifications
- Interface: PROFIBUS DP-V1 master station interface.
- Data Rate: Supports up to 12 Mbps (standard PROFIBUS speed), with a noted configuration of 9600 bps in specific setups.
- Processor Compatibility: Designed for Quantum processors (e.g., Modicon Quantum PLCs).
- Backplane Technology: Proprietary backplane integration for efficient data interaction with Quantum processors.
- Slot Design: Single-slot module compatible with Quantum backplane, requiring installation in the same rack as the processor.
- Memory: Non-volatile memory retains configuration data after power failure.
- Programming Software Support: Compatible with Concept (v2.6+), Unity Pro (v2.2+), and ProWORX (v2.20+).
Description
- Environmental Tolerance:
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Storage Temperature: -40°C to 85°C (-40°F to 185°F).
- Relative Humidity: 5% to 95% (non-condensing).
- Mechanical Resistance:
- Vibration: 4–100 Hz sinusoidal vibration on three orthogonal axes.
- Shock: 30 g (11 ms) on three orthogonal axes.
- Dimensions: Approximately 250 mm × 103.85 mm × 40.34 mm.
Functional Features
- Acyclic Parameter Transmission: Enables non-cyclic data exchange with Class 1 or Class 2 DPV1 services for flexible parameterization.
- Network Diagnostics: Supports extended diagnostic data, alarm indications, and confirmations handling for proactive maintenance.
- Multicast/Broadcast Telegrams: Facilitates efficient communication with multiple devices simultaneously via DPV1 services.
- Hot Standby Redundancy: Adheres to Unity HEC Hot Standby specifications, allowing up to four modules per rack for fault-tolerant operation.
- Easy Configuration:
- ProSoft Configuration Builder (PCB): PC-based software for designing, configuring, and monitoring PROFIBUS networks.
- PROFIBUS DPV1 Master FDT (Field Device Tool): Interfaces with compliant FDT software containers and device DTMs for streamlined setup.
- Firmware Upgradability: Flash-upgradable firmware for future-proofing and feature enhancements.
Application Scenarios
- Industrial Automation: Connects Quantum PLCs to PROFIBUS-enabled devices in manufacturing lines, robotics, and packaging systems.
- Process Control: Monitors and controls sensors/actuators in chemical, petrochemical, and water treatment plants.
- Power Generation: Integrates turbine controllers and grid management systems in power plants for efficient energy distribution.
- Building Automation: Manages HVAC, lighting, and security systems in large commercial buildings via PROFIBUS networks.
- Oil & Gas: Transmits wellhead parameters (e.g., pressure, flow) from remote fields to central control rooms.
- Metallurgy & Paper Mills: Supports high-speed data transmission in complex network topologies for process optimization.
Advantages
- Industrial-Grade Reliability: Withstands harsh environments with wide temperature ranges, vibration/shock resistance, and humidity tolerance.
- Scalability: Supports up to six modules per rack (four for Hot Standby), enabling large-scale deployments.
- Seamless Integration: Directly interfaces with Quantum processors and PROFIBUS networks without additional gateways.
- Reduced Downtime: Hot standby redundancy and diagnostic features minimize operational interruptions.
- Future-Proof Design: Regular firmware updates and compatibility with evolving standards ensure long-term viability.
