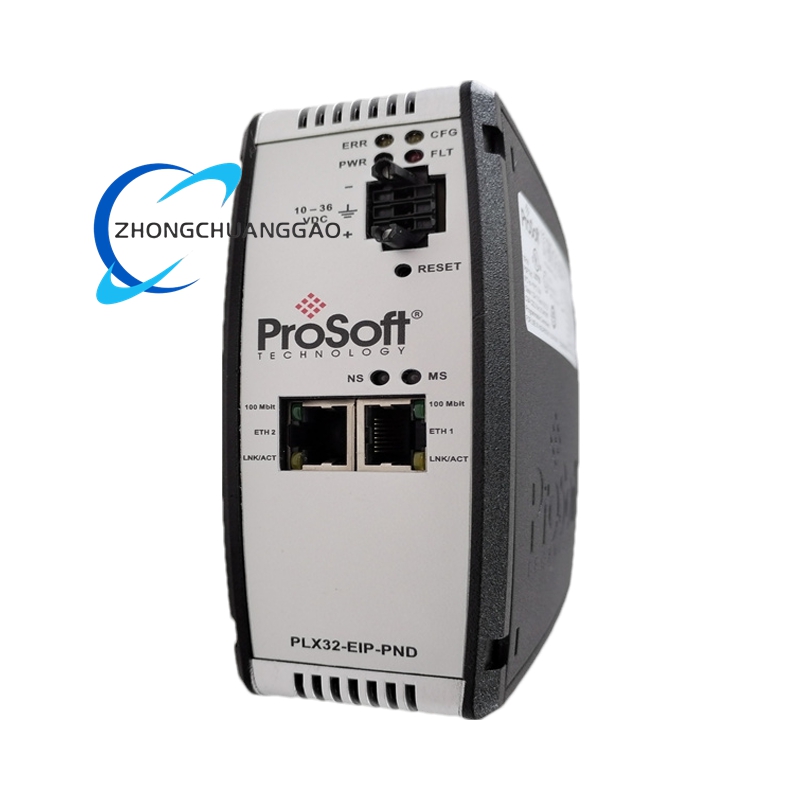

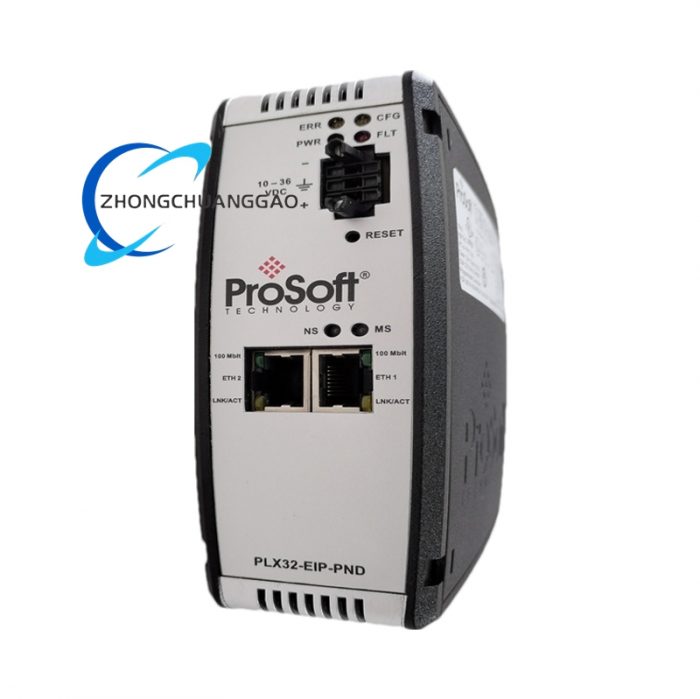

Product Short Description

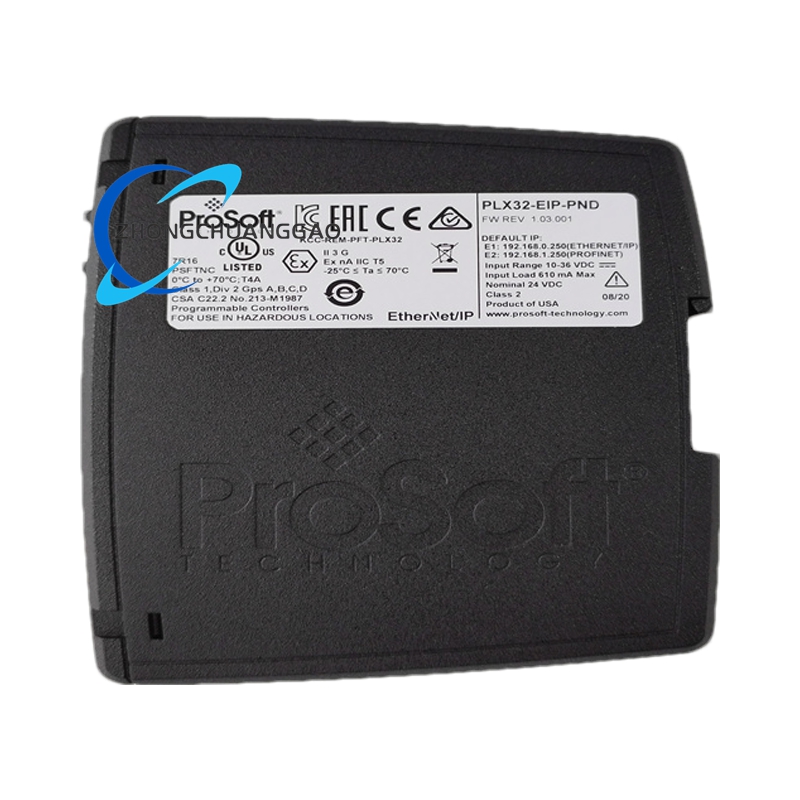

Technical Specifications
Manufacturer: ProSoft Technology
Mounting: DIN rail (35 mm), vertical or horizontal
Dimensions: 136.7 mm H × 50.5 mm W × 111.3 mm D
Weight: 0.24 kg
Enclosure Rating: IP20 (conformal coating option available)
Power Supply: 10 – 36 V DC, 630 mA @ 24 V DC, 10 mA max
Operating Temperature: –25 °C to +70 °C
Storage Temperature: –40 °C to +80 °C
Relative Humidity: 5 % – 95 % non-condensing
Shock & Vibration: IEC 60068-2-27 15 G @ 11 ms (operating), IEC 60068-2-6 5 G @ 10–150 Hz
Ethernet Ports: Two independent 10/100 Mbps RJ-45 ports, 1 500 V RMS isolation, separate subnets
SD Card Slot: Micro-SD (optional) for configuration backup, restore, and transfer
Description
Protocol Support
EtherNet/IP Side
• Class 1 I/O connections: up to 8 connections, 496 bytes input + 496 bytes output each, RPI ≤ 5 ms
• Class 3 explicit messaging: up to 5 server connections, 2 connected clients + 1 unconnected client, 100 commands per client
• Services: PCCC, CIP Read/Write Data Table, 0x4C/0x4D
• Compatible controllers: ControlLogix, CompactLogix, PLC-5, SLC 500, MicroLogix, etc.
EtherNet/IP Side
• Class 1 I/O connections: up to 8 connections, 496 bytes input + 496 bytes output each, RPI ≤ 5 ms
• Class 3 explicit messaging: up to 5 server connections, 2 connected clients + 1 unconnected client, 100 commands per client
• Services: PCCC, CIP Read/Write Data Table, 0x4C/0x4D
• Compatible controllers: ControlLogix, CompactLogix, PLC-5, SLC 500, MicroLogix, etc.
PROFINET Side
• Device class: PROFINET A, certified v2
• Real-time data: 1 440 bytes input, 1 440 bytes output
• Exchange types: cyclic real-time (RT) and acyclic record data
• GSDML file included for seamless integration into TIA Portal
• Device class: PROFINET A, certified v2
• Real-time data: 1 440 bytes input, 1 440 bytes output
• Exchange types: cyclic real-time (RT) and acyclic record data
• GSDML file included for seamless integration into TIA Portal
Functional Highlights
Bidirectional, deterministic data exchange between EtherNet/IP and PROFINET controllers without ladder-logic programming
Dual Ethernet ports allow physically isolated subnets for security and traffic segmentation
Embedded EDS AOP for plug-and-play integration with Studio 5000 / RSLogix 5000
Web-based configuration and diagnostics via integrated HTTP server
LED indicators for power, network activity, error status, and SD card access
Event log with time-stamped diagnostics and alarm notification via email
Bidirectional, deterministic data exchange between EtherNet/IP and PROFINET controllers without ladder-logic programming
Dual Ethernet ports allow physically isolated subnets for security and traffic segmentation
Embedded EDS AOP for plug-and-play integration with Studio 5000 / RSLogix 5000
Web-based configuration and diagnostics via integrated HTTP server
LED indicators for power, network activity, error status, and SD card access
Event log with time-stamped diagnostics and alarm notification via email
Application Scenarios
Automotive: synchronize Allen-Bradley robots with Siemens S7-1500 safety PLCs on the same line
Process industries: link Rockwell ControlLogix DCS to Siemens PCS 7 remote I/O stations in chemical plants
Packaging: integrate EtherNet/IP servo drives with PROFINET-based vision inspection systems
Water treatment: connect Modicon PAC on EtherNet/IP to Siemens flow meters on PROFINET
Logistics: convey real-time inventory data from PROFINET AS-i gateways to an EtherNet/IP warehouse management controller
Automotive: synchronize Allen-Bradley robots with Siemens S7-1500 safety PLCs on the same line
Process industries: link Rockwell ControlLogix DCS to Siemens PCS 7 remote I/O stations in chemical plants
Packaging: integrate EtherNet/IP servo drives with PROFINET-based vision inspection systems
Water treatment: connect Modicon PAC on EtherNet/IP to Siemens flow meters on PROFINET
Logistics: convey real-time inventory data from PROFINET AS-i gateways to an EtherNet/IP warehouse management controller
