Product Short Description
Technical Specifications

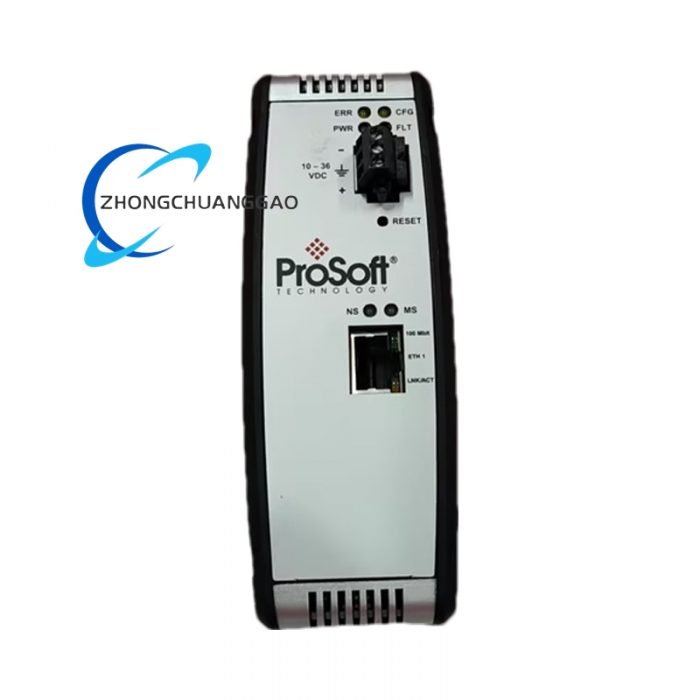

Manufacturer: ProSoft Technology
Part Number: PLX31-EIP-SIE
Mounting: DIN-rail, vertical or horizontal
Dimensions: 136.7 mm H × 25 mm W × 103 mm D
Weight: 0.24 kg
Enclosure Rating: IP20
Power Supply: 10 – 36 V DC, 3 W typical
Operating Temperature: –25 °C to +70 °C
Storage Temperature: –40 °C to +85 °C
Relative Humidity: 5 % – 95 % non-condensing
Shock & Vibration: IEC 60068-2-6, 60068-2-27
Description
Communication Ports
Ethernet: One auto-negotiating 10/100 Mbps RJ-45 port with auto MDI/MDI-X, 1 500 V isolation
Protocols on EtherNet/IP Side:
• Class 1 I/O – up to 248 bytes input / 248 bytes output per connection
• Class 3 Explicit Messaging – up to 2 connected clients plus 1 unconnected client, 100 commands per client
• Request Packet Interval down to 5 ms
Protocols on Siemens Side:
• Siemens Industrial Ethernet (SIE) ISO-on-TCP (RFC 1006)
• Supports S7-200, S7-300, S7-400, S7-1200, S7-1500 PLCs
• Read/Write access to DB, I, Q, M, T, C memory areas
• Up to 20 concurrent client connections, 16 commands each
Ethernet: One auto-negotiating 10/100 Mbps RJ-45 port with auto MDI/MDI-X, 1 500 V isolation
Protocols on EtherNet/IP Side:
• Class 1 I/O – up to 248 bytes input / 248 bytes output per connection
• Class 3 Explicit Messaging – up to 2 connected clients plus 1 unconnected client, 100 commands per client
• Request Packet Interval down to 5 ms
Protocols on Siemens Side:
• Siemens Industrial Ethernet (SIE) ISO-on-TCP (RFC 1006)
• Supports S7-200, S7-300, S7-400, S7-1200, S7-1500 PLCs
• Read/Write access to DB, I, Q, M, T, C memory areas
• Up to 20 concurrent client connections, 16 commands each
Functional Highlights
Bi-directional, real-time data exchange between EtherNet/IP controllers and Siemens S7 PLCs
4000-word internal database for flexible data mapping
Built-in web server for remote diagnostics and firmware updates
Data prioritization and configurable poll intervals optimize bandwidth usage
LED indicators for power, network activity, and status
SD card slot for configuration backup and restore
Bi-directional, real-time data exchange between EtherNet/IP controllers and Siemens S7 PLCs
4000-word internal database for flexible data mapping
Built-in web server for remote diagnostics and firmware updates
Data prioritization and configurable poll intervals optimize bandwidth usage
LED indicators for power, network activity, and status
SD card slot for configuration backup and restore
Configuration & Diagnostics
ProSoft Configuration Builder (Windows-based) – drag-and-drop tag mapping
Step 7 integration via GSDML file for seamless TIA Portal import
Web-based diagnostics display live data values, error counters, and connection health
Email alarm notification on network or PLC faults
ProSoft Configuration Builder (Windows-based) – drag-and-drop tag mapping
Step 7 integration via GSDML file for seamless TIA Portal import
Web-based diagnostics display live data values, error counters, and connection health
Email alarm notification on network or PLC faults
Application Scenarios
Manufacturing: Link Allen-Bradley ControlLogix/CompactLogix lines to Siemens S7-1500 assembly cells
Oil & Gas: Transfer well-head data from Rockwell SCADA to Siemens PCS 7 DCS for custody transfer
Water Treatment: Connect EtherNet/IP variable-frequency drives to S7-300 chlorine dosing skids
Automotive: Real-time parts tracking between EtherNet/IP RFID readers and S7-1200 conveyor controllers
Power Distribution: Integrate ABB protective relays on EtherNet/IP with Siemens S7-400 substation automation
Food & Beverage: Synchronize packaging robots on EtherNet/IP with S7-1500 recipe management systems
Manufacturing: Link Allen-Bradley ControlLogix/CompactLogix lines to Siemens S7-1500 assembly cells
Oil & Gas: Transfer well-head data from Rockwell SCADA to Siemens PCS 7 DCS for custody transfer
Water Treatment: Connect EtherNet/IP variable-frequency drives to S7-300 chlorine dosing skids
Automotive: Real-time parts tracking between EtherNet/IP RFID readers and S7-1200 conveyor controllers
Power Distribution: Integrate ABB protective relays on EtherNet/IP with Siemens S7-400 substation automation
Food & Beverage: Synchronize packaging robots on EtherNet/IP with S7-1500 recipe management systems
