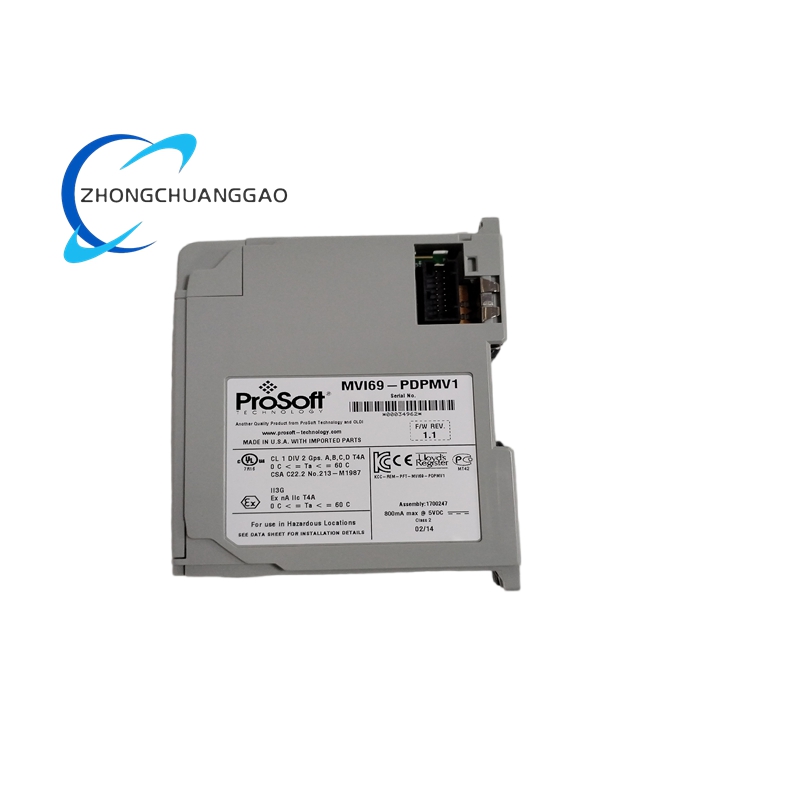

ProSoft MVI69-PDPMV1 PROFIBUS DPV1 Master Network Interface Module

Description

Technical Specifications

Core Identification

• Model: MVI69-PDPMV1
• Manufacturer: ProSoft Technology (USA)
• Product Type: PROFIBUS DP-V1 Master Communication Module
• Compatible Platforms: Rockwell Automation CompactLogix (L1/L2/L3/L43/L45 series), MicroLogix 1500 LRP
• Form Factor: Standard 1769 single-slot module for direct backplane mounting
• Weight: Approximately 0.24 kg
• Dimensions: 17.8 cm (L) × 4.6 cm (W) × 24.9 cm (D)

PROFIBUS Network Specifications

• Protocol Standard: PROFIBUS DP-V1, compliant with EN 50170 and IEC 61158
• Operating Mode: Class 1 DP Master
• Communication Baud Rate: Auto-detecting, 9.6 Kbps to 12 Mbps
• Max Slave Devices: Up to 125 slaves (with repeaters); 32 slaves per segment (no repeaters)
• Cyclic Data Capacity: 1536 bytes input, 1536 bytes output data
• Interface: 1 × 9-pin D-sub female (DB-9F) RS-485 port
• Isolation: 2.5 kV optical galvanic isolation on PROFIBUS port
• Network Topology: Linear bus with active termination

Backplane & Electrical Specifications

• Backplane Connection: Direct 1769 I/O bus interface
• Power Supply: 5 VDC (backplane-powered)
• Current Consumption: 800 mA maximum @ 5 VDC
• Power Supply Rating: Distance rating of 2 (for L43/L45 installations)

Environmental & Mechanical

• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5% to 95% RH, non-condensing
• Vibration Resistance: IEC 60068-2-6 compliant
• Shock Resistance: IEC 60068-2-27 compliant
• Protection Rating: IP20 (module housing)
• Mounting: Direct plug-in to CompactLogix/MicroLogix backplane

Diagnostic & Configuration

• LED Indicators: Power, Run, Error, Token, Network Status
• Configuration Port: RJ45 (RS-232) for setup and diagnostics
• Configuration Software: ProSoft Configuration Builder (PSW-PCB) with GSD file import
• CIPConnect: Supported for Ethernet routing with CompactLogix L32E/L35E
• FDT/DTM: Includes PROFIBUS Master DTM for integration into FDT frameworks

Certifications & Compliance

• CE Marking
• UL Listed
• RoHS Directive compliance
• EMC compliance: EN 55011, EN 61800-3

Key Features

Independent PROFIBUS Master Processing

• Equipped with a dedicated on-board processor to manage the entire PROFIBUS protocol stack
• Eliminates CPU overhead on the host CompactLogix/MicroLogix controller
• Ensures deterministic, real-time network performance even under high data loads
• Operates independently for network scanning, data polling, and error handling

Comprehensive DPV1 Functionality

• Supports both cyclic (DP-V0) and acyclic (DP-V1) data communication
• Enables remote parameterization, configuration, and firmware updates of slave devices
• Provides extended diagnostic data retrieval for detailed device health monitoring
• Supports PROFIdrive 3.1 for seamless integration with drive systems
• Implements alarm handling and event notification for critical process conditions

High-Speed, Reliable Communication

• Delivers baud rates up to 12 Mbps for fast data transfer
• Features optical galvanic isolation (2.5 kV) to protect against electrical noise and ground loops
• Supports Sync and Freeze commands for precise multi-device synchronization
• Implements CRC checks for data integrity and configuration consistency verification
• Supports multicast and broadcast telegrams for efficient group communication

Seamless Rockwell Integration

• Plugs directly into the 1769 backplane, recognized as a standard I/O module
• Integrates natively with RSLogix 5000 / Studio 5000 programming environments
• Uses tag-based data mapping for direct access to PROFIBUS data in the PLC
• Includes sample ladder logic and Add-On Instructions (AOI) for rapid implementation
• Supports CIPConnect for remote configuration via Ethernet

Advanced Diagnostics & Monitoring

• Multi-color LED indicators provide at-a-glance status of module, network, and slaves
• Offers comprehensive online slave diagnostics for quick fault identification
• Enables real-time monitoring of network traffic, slave status, and error counters
• Supports detailed diagnostic data extraction via the configuration port or network
• Facilitates proactive maintenance and minimizes system downtime

Flexible & Scalable Design

• Single-slot form factor optimizes space usage in control cabinets
• Supports installation of multiple master modules in a single rack for network segmentation
• Compatible with a wide range of PROFIBUS slave devices via GSD file import
• Allows for easy system expansion by adding slave devices or network segments
• Hot-swappable design for replacement without complete system shutdown

Application Scenarios

Manufacturing & Assembly

• Automotive Production: Integration of PROFIBUS-based PLCs, drives, and robots on assembly lines
• General Machinery: Control of packaging machines, material handling systems, and conveyor lines
• Metal Fabrication: Coordination of CNC machines, press brakes, and robotic welding cells
• Electronics Manufacturing: Connection to SMT line equipment, test stations, and pick-and-place machines

Food & Beverage Processing

• Filling & Packaging Lines: Synchronization of filling machines, capping systems, and labeling equipment
• Processing Equipment: Integration with mixers, extruders, and pasteurization units
• Bakery & Confectionery: Control of ovens, cooling tunnels, and packaging machinery
• Beverage Production: Management of bottling lines, filtration systems, and cleaning-in-place (CIP) processes

Water & Wastewater Treatment

• Municipal Water Plants: Connection to pump stations, filter controls, and valve actuators
• Wastewater Facilities: Integration with aeration systems, sludge processing, and UV disinfection
• Desalination Plants: Control of reverse osmosis systems and energy recovery devices
• Irrigation Systems: Management of pumping stations and flow control valves

Oil & Gas Industry

• Upstream Operations: Wellhead control, pipeline monitoring, and emergency shutdown systems
• Refineries: Integration with process control systems, compressors, and flare systems
• LNG Facilities: Control of cryogenic processes, storage tanks, and loading/unloading equipment
• Petrochemical Plants: Connection to reactor controls, distillation columns, and safety systems

Power Generation & Distribution

• Thermal Power Plants: Integration with boiler controls, turbine systems, and generator excitation
• Renewable Energy: Wind turbine pitch control and solar inverter management
• Electrical Substations: Connection to switchgear, protection relays, and SCADA systems
• Distribution Networks: Control of reclosers, capacitor banks, and power quality monitors

Pharmaceutical & Life Sciences

• Tablet Manufacturing: Control of tablet presses, coating systems, and packaging lines
• Biotech Production: Integration with bioreactors, fermenters, and purification systems
• Medical Device Assembly: Precision control of micro-assembly and testing equipment
• Laboratory Automation: Connection to analytical instruments and sample handling systems

Mining & Minerals Processing

• Mine Operations: Conveyor control, crusher management, and ventilation systems
• Mineral Processing: Control of grinding mills, flotation cells, and material classification
• Port & Shipping: Management of loading/unloading equipment and material handling systems
• Cement Production: Integration with kiln controls, raw material handling, and packaging
