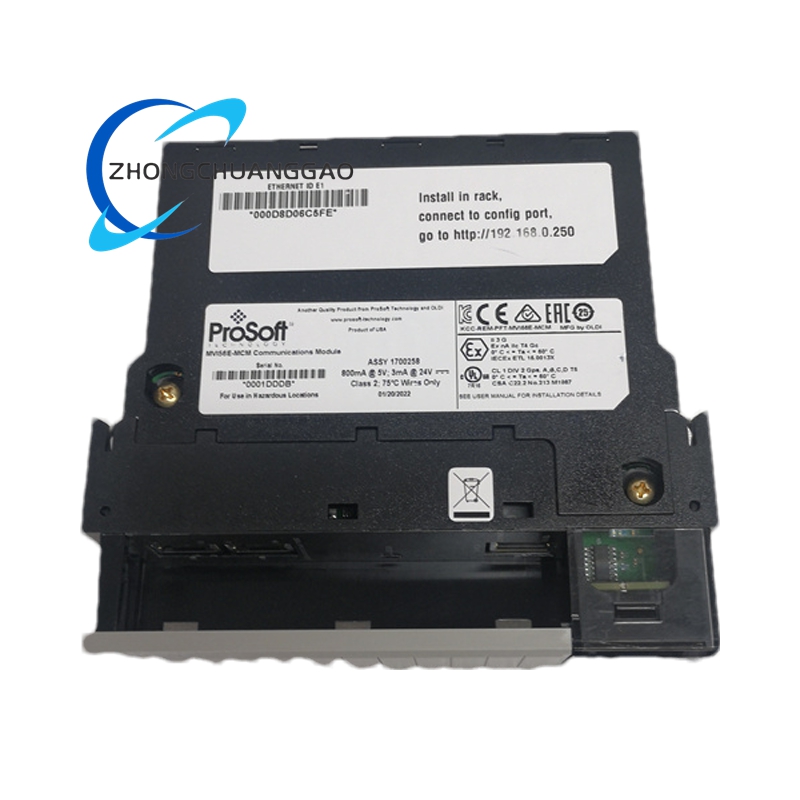

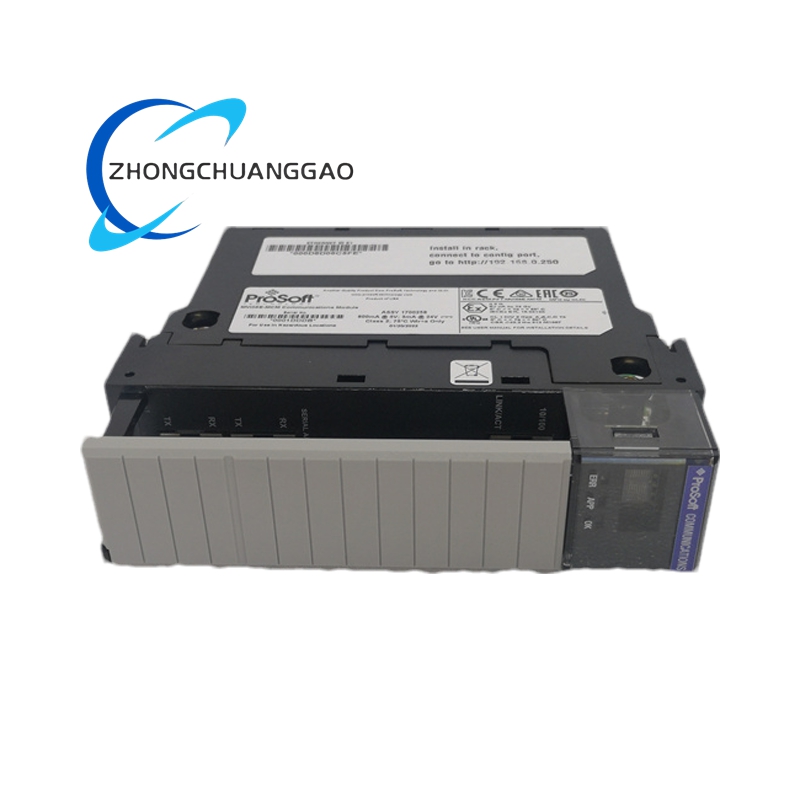

PROSOFT MVI56E-MCM Communication Module

• Data Mapping: Automatic I/O mapping to ControlLogix tags (e.g., MVI56E_MCM:I.Data[0]), accessible via Studio 5000.
• Power Supply: +5 V and +3.3 V from ControlLogix backplane; total power consumption ≤4.1 W (60°C).
• Environmental Rating: IP20 (indoor control cabinet use).
• Certifications: CE, UL, cUL, and compliance with Modbus.org specifications.

Functional Features

• Direct Integration: Acts as a local I/O module, reducing latency and enhancing reliability by eliminating external hardware.
• Dual-Port Flexibility: Each port operates independently as master or slave, accommodating complex network topologies (e.g., one port collecting data from meters, another responding to SCADA queries).
• Diagnostics: Built-in web interface (accessed via module IP) for real-time monitoring of communication status, error counts, and register values. Supports serial packet capture for troubleshooting.
• Robust Design: LED indicators for power, module status, and port activity. Error-resistant features include parity checks, timeout retries, and CRC validation.
• Scalability: Supports daisy-chaining or parallel connections via Phoenix connectors, expanding network capacity as needed.

Application Scenarios

• Water Treatment: A ControlLogix controller uses MVI56E-MCM to monitor frequency converters (e.g., ABB ACS880) in water plants, tracking operational frequency and current.
• Oil & Gas: RTU stations upload flow computer data (e.g., Daniel meters) to master PLCs via Modbus RTU, ensuring centralized monitoring.
• Power Generation: The module acts as a Modbus slave, sharing boiler control system data with third-party DCS platforms for collaborative operations.
• Manufacturing: Integrates non-Rockwell devices (e.g., weighing instruments, temperature controllers) into ControlLogix-based production lines, enabling unified automation.

Advantages

• Cost Efficiency: Extends legacy device lifespans by connecting them to modern ControlLogix systems without replacement.
• Reliability: Industrial-grade components ensure stable operation in harsh conditions (e.g., vibration, dust, temperature extremes).
• Ease of Use: Simplified configuration via ProSoft Configuration Builder software, with intuitive diagnostics reducing setup and maintenance time.
• Future-Proofing: Supports phased upgrades to newer protocols while leveraging existing infrastructure, protecting investments.

Additional Variants

• MVI56E-MCMXT: Designed for Logix-XT platforms, withstands extreme temperatures (-40°C to 85°C) and features conformal coating for corrosion resistance, ideal for offshore drilling platforms.
• MVI56E-MNETXT: Supports Modbus TCP for Ethernet-based communication, catering to IP-centric industrial networks.
