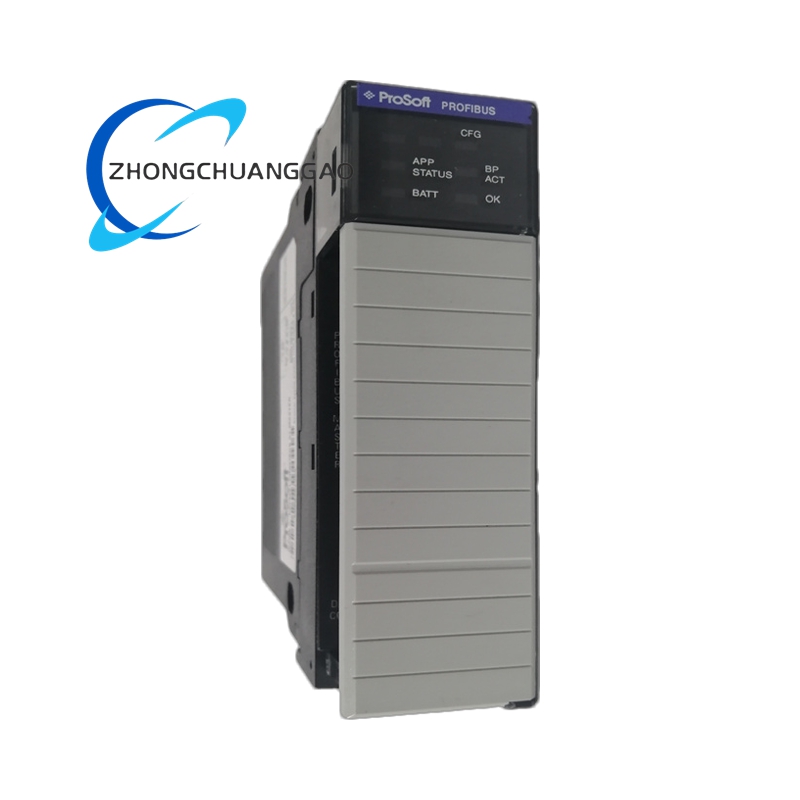

Product Short Description
Technical Specifications
- Interface: Single-slot module compatible with 1756 backplane (e.g., ControlLogix racks).
- PROFIBUS Support: PROFIBUS DP-V1 master station with support for DP-V0 devices.
- Communication Port: One (1) optically isolated RS-485 port for PROFIBUS connectivity.
- Data Rate: Supports standard baud rates up to 12 Mbps.
- Device Capacity: Connects up to 125 PROFIBUS slave devices.
- Data Exchange:
- Cyclic: Up to 1536 bytes input and 1536 bytes output per slave.
- Acyclic: Non-cyclic parameter transmission via Class 1 or Class 2 DPV1 services.
- Backplane Current Load: 800 mA @ 5V; 3 mA @ 24VDC.
- Environmental Tolerance:
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Storage Temperature: -40°C to 85°C (-40°F to 185°F).
- Vibration Resistance: 5G from 10 to 500 Hz.
- Shock Resistance: 30G (50G when not in operation).
- Relative Humidity: 5% to 95% (non-condensing).
- LED Indicators: Ready, Running, Error, Token, and serial activity status.
Description
Functional Features
- High Stability: Built for harsh industrial environments with robust mechanical and thermal tolerance.
- Flexible Integration: Supports multiple communication protocols (e.g., Modbus RTU, Modbus TCP, EtherNet/IP) for diverse device connectivity.
- High Performance: Equipped with a high-speed processor and memory to handle complex control algorithms and real-time data processing.
- Scalability: Easily expands system capacity by combining with other modules or devices.
- Easy Configuration:
- ProSoft Configuration Builder (PCB): PC-based software for designing, configuring, and monitoring PROFIBUS networks.
- GSD File Import: Automatically imports device-specific GSD files for simplified setup.
- Online Diagnostics: Real-time monitoring of slave device status and network health.
- Advanced Diagnostics:
- Automatic project documentation generation.
- Automatic bus parameter calculation.
- Extended diagnostic data support (DPV1).
- CIPconnect™ Support: Enables bridging between ControlNet and EtherNet/IP networks.
- Built-in Web Server: Provides access to module status, documentation, and sample programs.
Application Scenarios
- Factory Automation: Integrates PROFIBUS-enabled robots, conveyors, and packaging machines into ControlLogix-based production lines.
- Process Control: Monitors and controls sensors/actuators in chemical, petrochemical, and water treatment plants.
- Power Generation: Facilitates communication between turbine controllers and grid management systems in power plants.
- Oil & Gas: Transmits wellhead parameters (e.g., pressure, flow) from remote fields to central control rooms.
- SCADA/DCS Systems: Serves as a gateway for PROFIBUS devices in supervisory control and data acquisition applications.
- Metallurgy & Paper Mills: Supports high-speed data transmission in complex network topologies for process optimization.
Advantages
- Industrial-Grade Reliability: Withstands extreme temperatures, vibrations, and electromagnetic interference for uninterrupted operation.
- Seamless Integration: Directly interfaces with ControlLogix processors without additional gateways or converters.
- Reduced Downtime: Proactive diagnostics and hot-swappable design minimize operational interruptions.
- Future-Proof Design: Regular firmware updates and compatibility with evolving standards ensure long-term viability.
- Cost-Effective: Eliminates the need for proprietary PROFIBUS master controllers by leveraging existing ControlLogix infrastructure.
