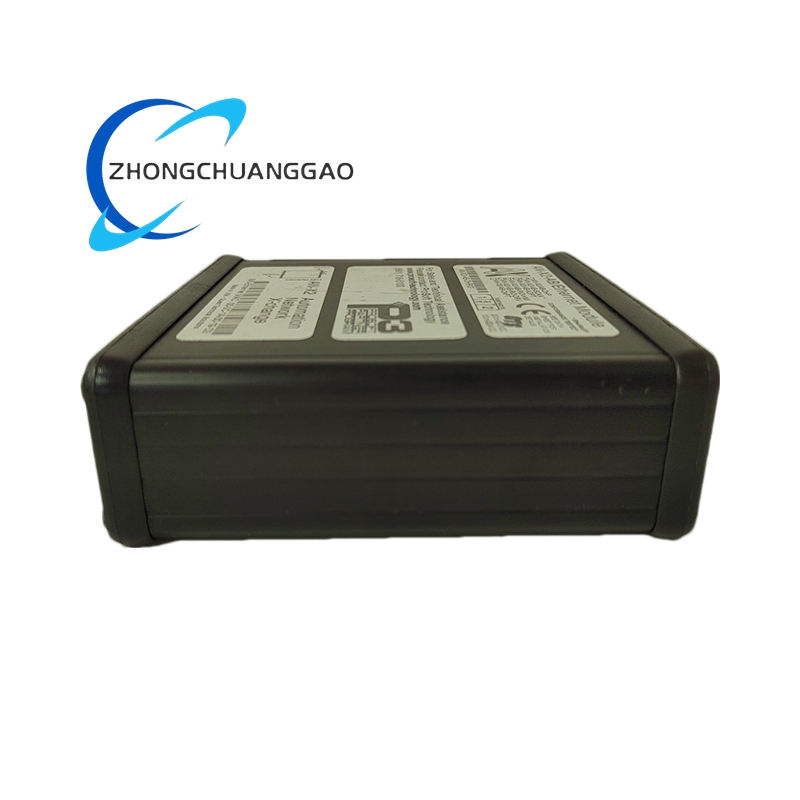

Product Short Description
Technical Specifications

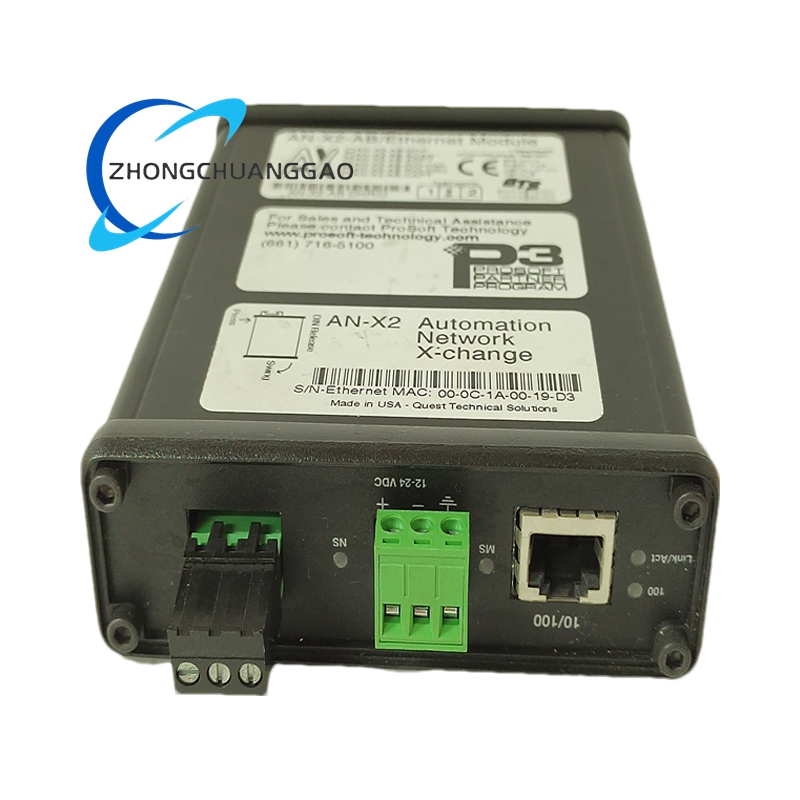

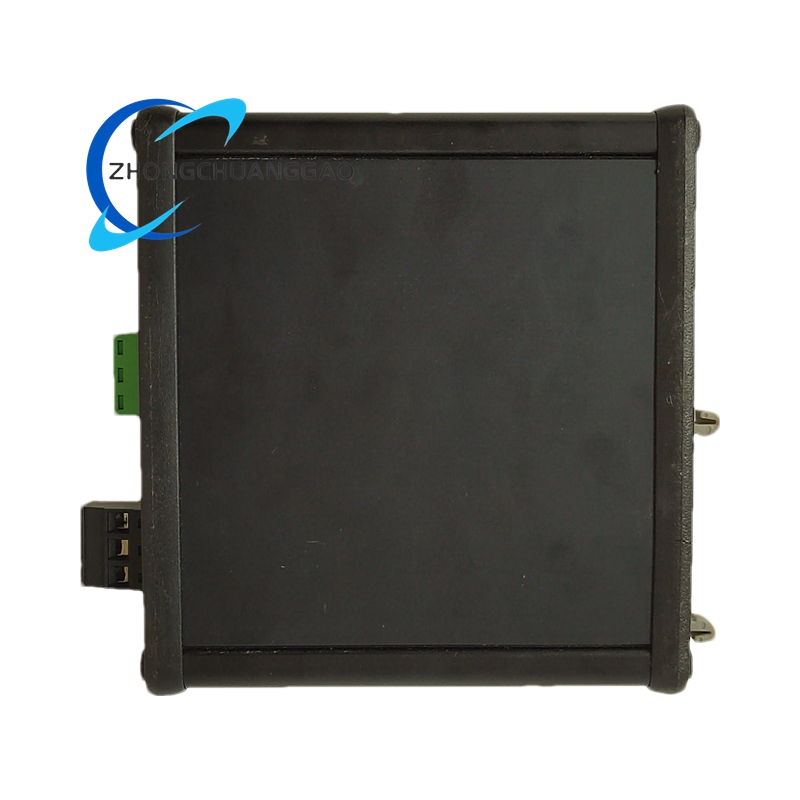

- Ports:
- 1 x RJ45 10/100 Mbps Ethernet port for connecting PACs to the gateway.
- 1 x Phoenix 3-pin power connector for external 24 VDC power supply.
- 1 x Phoenix 2-pin network connector for daisy-chaining Allen-Bradley PLCs, SLC 500s, PanelViews, drives, and Flex I/O adapter modules.
- Data Rates: Supports configurable baud rates including 57.6, 115.2, and 230.4 Kbps.
- Power Consumption: Typically 200 mA @ 12 VDC or 100 mA @ 24 VDC (2.4 W power dissipation).
- Dimensions: 107 mm x 126 mm x 34 mm (4.18 in x 4.97 in x 1.33 in).
- Weight: 310 g.
- Operating Temperature: 0°C to 50°C (32°F to 122°F).
- Storage Temperature: -40°C to 85°C (-40°F to 185°F).
- Mounting: DIN rail or desktop installation.
Description
Functional Features
- Protocol Conversion: Enables communication between modern Ethernet/IP-based PACs and legacy RIO/DH+ devices.
- High-Speed Data Transmission: Supports 10/100 Mbps Ethernet for efficient data transfer.
- Flexible Connectivity: Daisy-chain capability via Phoenix connectors simplifies integration with multiple Allen-Bradley devices.
- Web-Based Management: Built-in web server allows remote monitoring, configuration, diagnostic data display, and firmware updates via standard browsers.
- Phase Migration Support: Facilitates staged upgrades of legacy systems (e.g., replacing RIO PLCs or drives) without full replacement.
- Diagnostic Tools: LED indicators for power, application status, port activity, and errors enable quick troubleshooting.
- Industrial-Grade Design: Robust construction ensures reliable operation in harsh environments (5%–95% non-condensing humidity).
Application Scenarios
- Manufacturing: Integrates legacy machinery with modern PLCs for production line automation and process control.
- Energy Sector: Monitors and controls power generation equipment (e.g., wind turbines, solar inverters) using outdated protocols.
- Oil & Gas: Safely transmits data from hazardous-area sensors to control systems in explosive atmospheres.
- Water/Wastewater Treatment: Manages pump and valve actuators while isolating signals in wet or corrosive environments.
- Transportation: Supports railway signaling systems and intelligent traffic management by connecting legacy infrastructure to modern networks.
- Building Automation: Upgdes legacy HVAC or lighting systems to smart building platforms without replacing existing hardware.
Advantages
- Cost Efficiency: Extends the lifespan of legacy devices, reducing replacement costs.
- Scalability: Easily expands to accommodate additional RIO/DH+ devices as process demands evolve.
- Ease of Use: Simplified configuration via web interface and intuitive LED diagnostics.
- Reliability: Industrial-grade components ensure stable operation in extreme conditions.
- Future-Proofing: Supports phased migration to Ethernet/IP, protecting investments in legacy systems.
