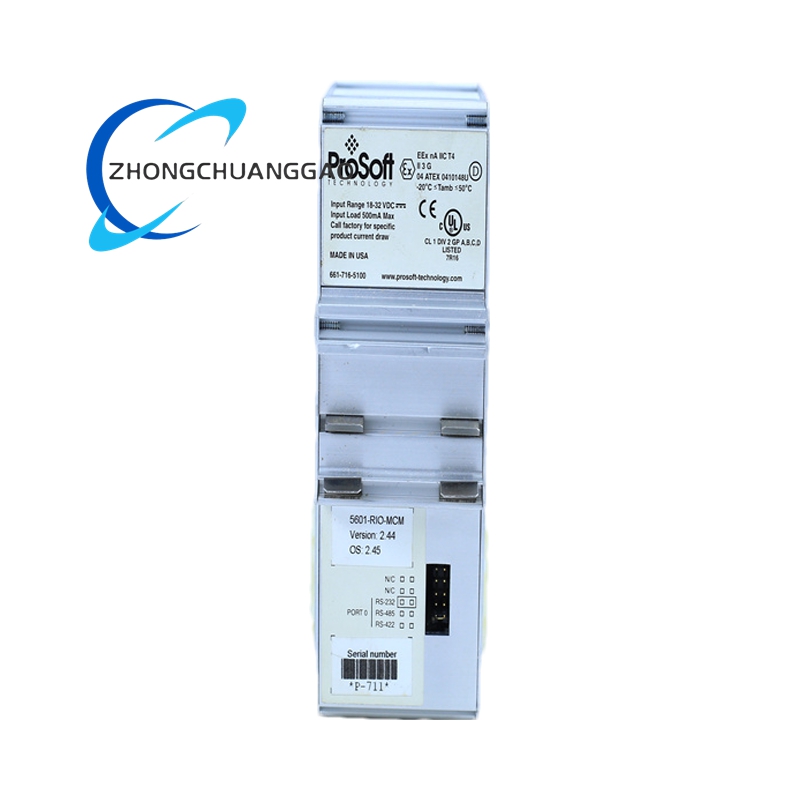

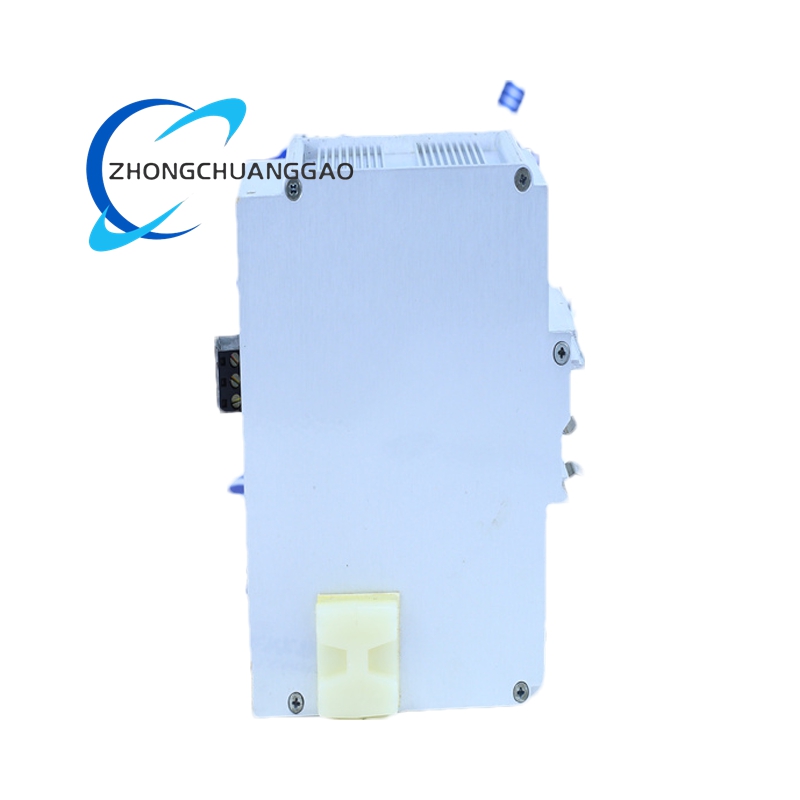

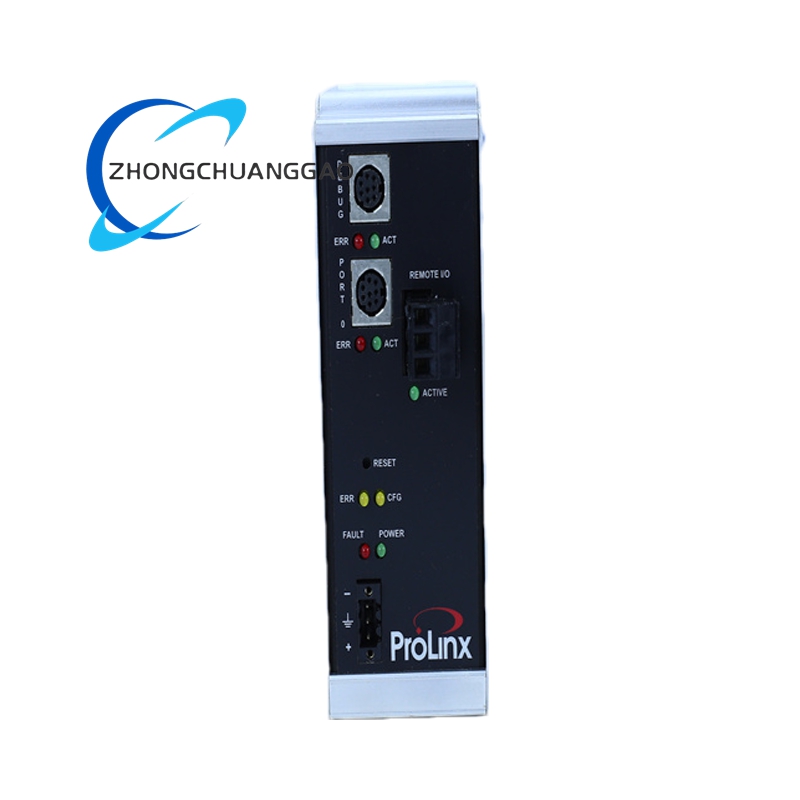

PROSOFT 5601-RIO-MCM Communication Module

Description

Functional Features

• Seamless Integration: Connects ControlLogix controllers to RIO devices, eliminating the need for complex middleware or additional hardware.
• High Data Throughput: Enables fast, reliable transfer of large volumes of I/O data, supporting real-time control applications.
• Easy Configuration: User-friendly setup via RSLogix 5000 software, with intuitive parameter adjustment for IP addressing, subnet masks, and RIO station numbers.
• Diagnostic Capabilities: Provides real-time status monitoring and error detection, helping operators quickly identify and resolve communication issues.
• Modbus Support: When configured as a Modbus master, supports up to 30 Modbus commands for integration with third-party devices.
• Guard Band Timeout: Features configurable guard band timing to prevent communication errors in Modbus RTU networks with multiple slave devices.

Application Scenarios

• Oil and Gas Industry: Monitors and controls valves, pressure switches, and other field devices in explosive atmospheres, ensuring safe and efficient operation.
• Chemical Processing: Isolates signals from sensors in corrosive or hazardous production areas, preventing electrical interference and ensuring data accuracy.
• Power Generation: Connects high-voltage equipment to low-voltage control systems in power plants, enabling centralized monitoring and control.
• Water and Wastewater Treatment: Controls pump and valve actuators while maintaining electrical isolation in wet or corrosive environments.
• Pharmaceutical Manufacturing: Ensures electrical safety in clean rooms by isolating signals from fermentation tanks, temperature controllers, and other critical equipment.
• Mining Industry: Provides reliable signal transmission in underground mines for ventilation and gas monitoring systems, where explosive gases may be present.
• Factory Automation: Integrates with DCS (Distributed Control Systems) and PLC (Programmable Logic Controllers) for seamless automation control in various industrial processes.

Advantages

• Cost-Effective: Leverages existing RIO devices, reducing the need for costly equipment replacements.
• High Reliability: Designed for harsh industrial environments, with robust construction and high-quality components.
• Flexible Configuration: Supports a wide range of I/O configurations and communication protocols, adapting to diverse application requirements.
• Easy Maintenance: Simplifies troubleshooting with built-in diagnostic tools and status indicators.
• Scalability: Can be easily expanded to support additional RIO devices as process requirements evolve.
