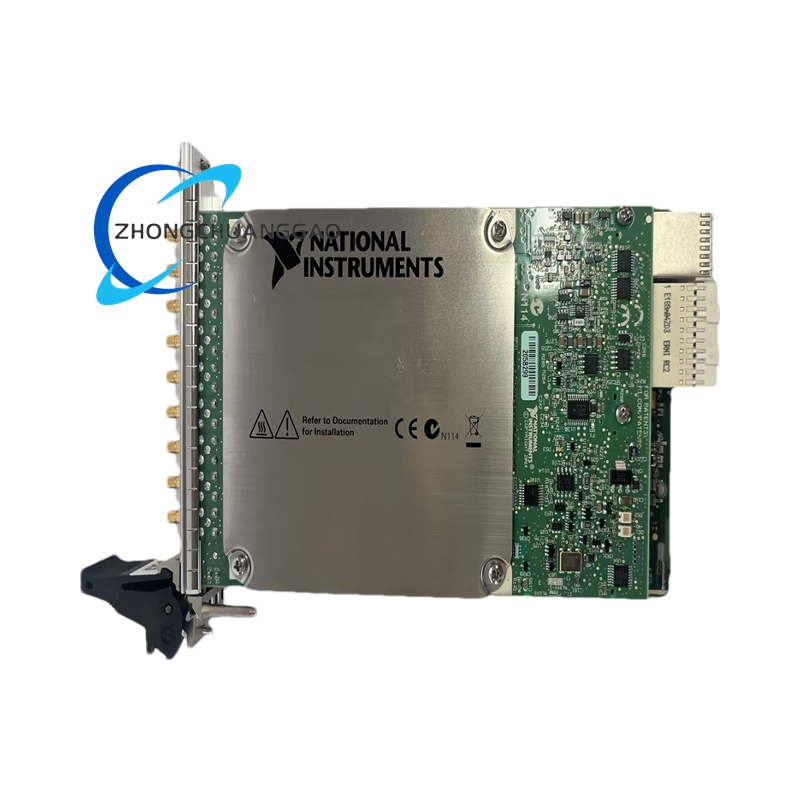

Product Identity
8-channel, 60 MHz-bandwidth, 12-bit PXI/PXI Express high-resolution digitizer / oscilloscope module. -
Technical Specifications
-
Channels: 8 simultaneously-sampled analog inputs
-
Sample Rate: 60 MS/s per channel
-
Bandwidth: 60 MHz (anti-alias filter available)
-
Resolution: 12-bit vertical
-
Memory Depth: 16 MB, 128 MB, or 512 MB onboard (ordered as 783590-01, 783590-02, 783590-03)
-
Input Ranges: 50 mVpp – 30 Vpp, selectable 50 Ω or 1 MΩ impedance
-
Description
-
-
SFDR: 72 dBc typical
-
Connectors: SMB jacks on front panel
-
Triggering: hardware re-arm, PXI/RTSI bus triggers, PFI lines
-
Sync: NI-TClk technology for multi-module phase coherence up to 136 channels in one chassis
-
Power: 23 W from PXI backplane
-
Operating Temperature: 0 °C – 55 °C
-
Storage Temperature: –40 °C – +71 °C
-
Dimensions: 8.43 × 0.8 × 5.1 in. (3U PXI)
-
Weight: 18.3 oz
-
-
Functional Highlights
-
Deep onboard memory captures >1 million triggered waveforms
-
Continuous streaming to host memory or disk for long acquisitions
-
Self-calibration routine corrects gain, offset, and trigger timing over temperature
-
Driver support: NI-SCOPE for LabVIEW, LabWindows/CVI, Measurement Studio, C/C++, .NET
-
-
Application Scenarios
-
Ultrasonic non-destructive testing (NDT)
-
Medical imaging and phased-array diagnostics
-
Scientific research & physics experiments
-
Military / aerospace signal intelligence
-
Consumer electronics validation and mixed-signal test benches
-
