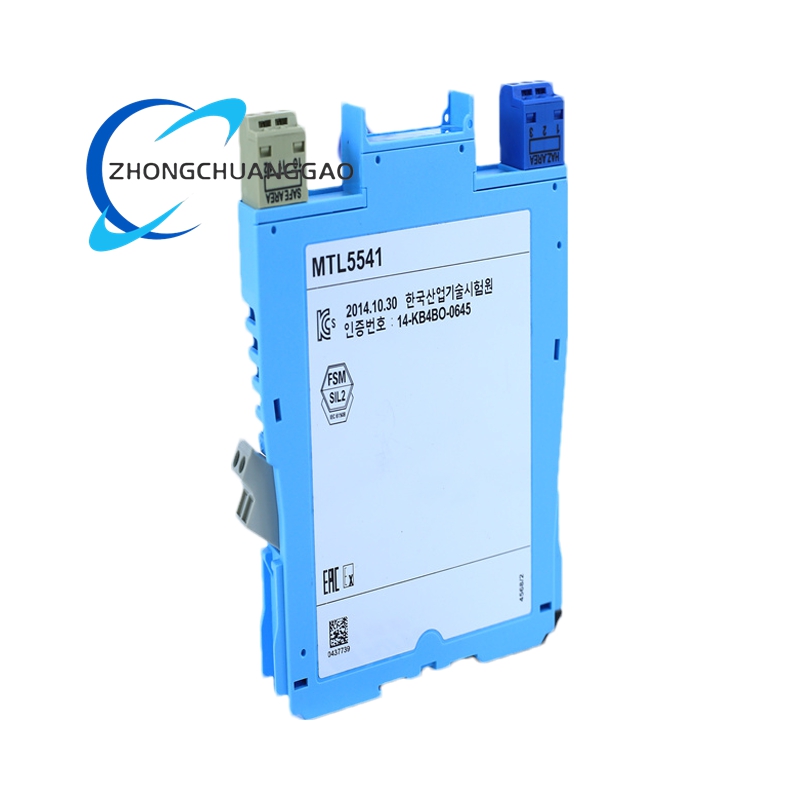

MTL 5541 Analog Input Isolation Barrier

Description

Functional Features

• Energy Limitation: Limits voltage and current to prevent dangerous energy levels in hazardous areas, ensuring compliance with intrinsic safety standards.
• Signal Isolation: Uses isolation technology to separate hazardous and safe areas, avoiding ground loop interference and improving signal stability.
• HART Support: Enables remote configuration and diagnostics of smart transmitters by allowing digital signals to be superimposed on the 4-20mA loop.
• Fault Detection: Monitors line status and triggers alarms when short circuits or open circuits occur, ensuring system reliability.
• Flexible Configuration: Supports both 2-wire and 3-wire transmitters, with options for active or passive signal output.
• LED Indicators: Provides visual feedback on power status and operational conditions.

Application Scenarios

• Oil and Gas Industry: Used in pressure, temperature, and flow monitoring systems for crude oil processing, gasoline production, and natural gas compression. Prevents electrical sparks from igniting flammable gases or vapors.
• Chemical Processing: Ensures safe signal transmission in reaction vessels, distillation columns, and storage tanks containing flammable or explosive chemicals like chlorine and ammonia.
• Power Generation: Isolates high-voltage equipment from control systems in boiler control, turbine monitoring, and fuel delivery systems to prevent electrical faults from causing fires or explosions.
• Pharmaceutical and Food Processing: Monitors temperature and pressure in reactors and dryers using flammable solvents like ethanol and acetone, ensuring explosion protection.
• Mining Industry: Monitors瓦斯 (methane) levels and ventilation systems in coal mines to prevent explosions. Supports HART for remote device configuration and diagnostics.
• Environmental Monitoring: Measures dissolved oxygen in aeration tanks and detects flammable gases like methane and hydrogen sulfide in wastewater treatment plants.

Advantages

• High Safety: Meets intrinsic safety standards, preventing electrical sparks or excessive temperatures in hazardous environments.
• Reliable Operation: Isolation technology ensures stable signal transmission even in harsh industrial conditions.
• Easy Integration: Supports HART protocol for seamless integration with smart devices, reducing field operation risks.
• Cost-Effective: Simplifies wiring by supporting 2-wire transmitter power supply, lowering installation and maintenance costs.
• Durable Design: Wide temperature range and robust construction ensure long service life in extreme environments.
