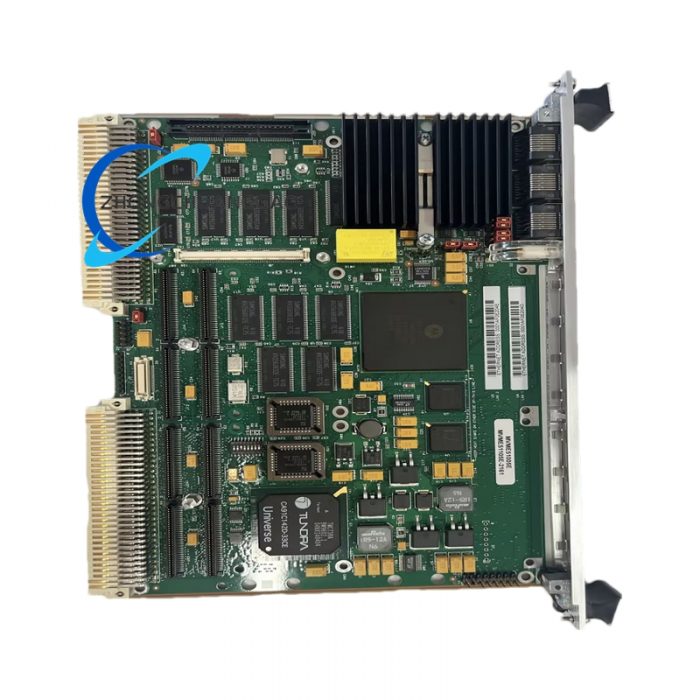

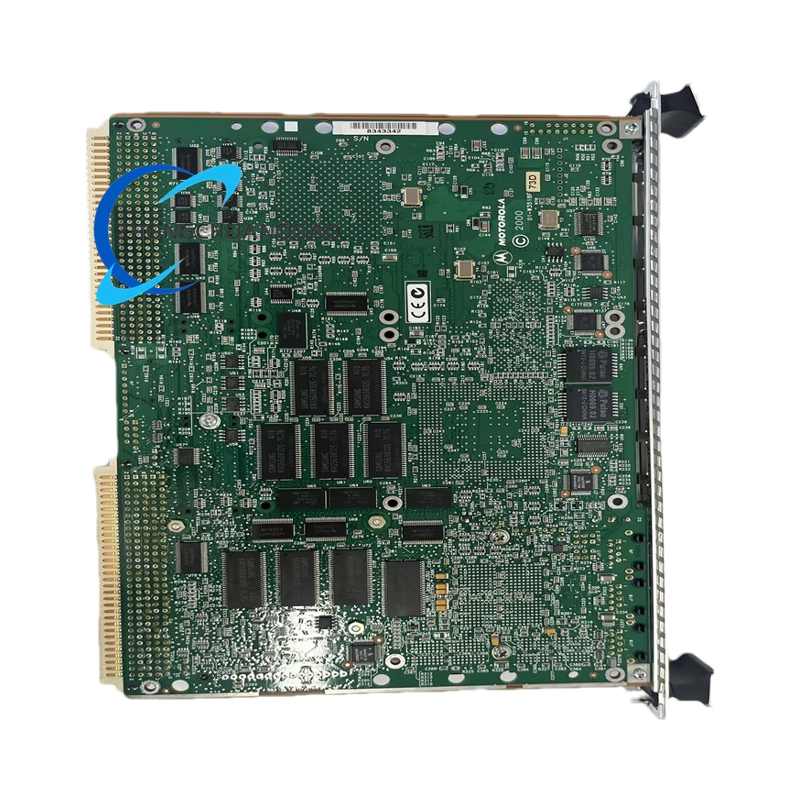

Product Short Description
-
Core Hardware
• CPU: 400 MHz MPC7410 PowerPC G4 with AltiVec SIMD engine
• Cache: 32 KB L1, 512 KB L2 on-chip, 2 MB L3 optional add-on
• Memory: 512 MB ECC SDRAM (144-pin SODIMM)
• Storage: 17 MB boot flash + CompactFlash socket for user mass-storage
• Form factor: 6U VME, single-slot, Scanbe front panel
Description
-
Interfaces & Expansion
• VME64x bus: 64-bit data, 40 MB/s MBLT64 transfers
• Ethernet: 10/100 Base-T via front panel RJ-45
• Serial: 2× RS-232/422/485 (DB9)
• USB: 1× USB 1.1 host port
• PMC slot: IEEE P1386 mezzanine for additional I/O or motion control
• Real-time clock & watchdog timer with battery backup -
Performance Characteristics
• Floating-point unit & AltiVec deliver high-speed DSP and vector math
• ECC SDRAM corrects single-bit errors, detects double-bit errors
• Operating temperature: 0 °C – +70 °C standard, –40 °C – +85 °C rugged option
• Power: +5 V @ 3.6 A typical, +12 V @ 0.3 A, < 25 W total
• Weight: 0.42 kg
-
Software Support
• Firmware: VxWorks 5.x/6.x BSP, Linux 2.4/2.6, Integrity, LynxOS
• Development tools: Wind River Tornado, GNU GCC, Green Hills MULTI -
Typical Applications
• Industrial automation: real-time machine control, SCADA front-end
• Transportation: railway signaling, traffic management computers
• Telecom & defense: base-station controllers, radar data processing
• Energy: turbine control, substation automation, wind-farm controllers
• Medical & aerospace: imaging systems, flight simulators, test benches
