Product Short Description

Functional Features

  • IndustryPack Expansion Flexibility: 2 IP ports support a wide range of industrial I/O modules (analog input/output, digital I/O, motion control), enabling customized peripheral integration without extra VME slots.
  • DMA – Accelerated Peripherals: Ethernet and SCSI interfaces use DMA to offload data transfer from the CPU, enhancing real – time processing performance for data – intensive tasks.
  • Battery – Backed Persistent Memory: 512 KB SRAM and MK48T08 NVRAM/TOD clock retain configuration data and time during power loss, ensuring system continuity in remote or unstable power environments.
  • VMEbus System Controller: Acts as a VMEbus master, slave, or system controller, with configurable arbitration modes to optimize bus utilization in multi – module systems.
  • Dual Serial Port Versatility: Console port for system management and configurable port for industrial protocols (Modbus, DNP3) via hardware settings, adapting to diverse field devices.
  • Parity – Protected DRAM: Prevents data corruption from electrical interference, critical for safety – critical industrial control and process monitoring applications.
  • Industrial – Grade Durability: Wide temperature range, robust ESD/shock/vibration resistance and redundant power filtering allow deployment in factory floors, oil fields and military ground systems.
  • Legacy 68k Software Compatibility: MC68LC040 architecture supports legacy 68000 – series assembly code, ideal for upgrading aging VME systems without rewriting control algorithms.
Share on Facebook
Share on Twitter
Email This Product

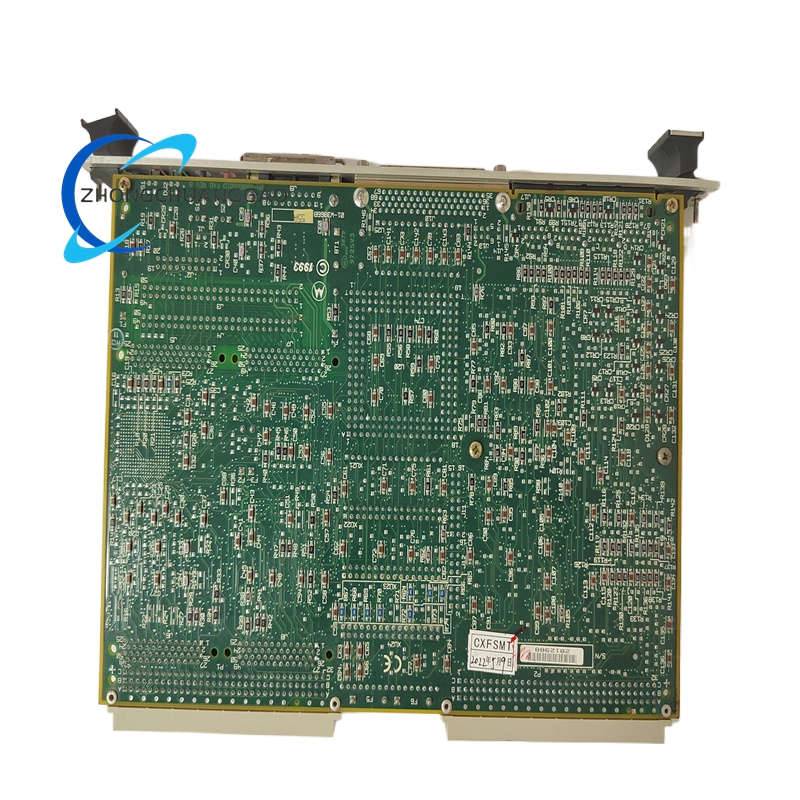

Motorola MVME162-213 Double-High 6U VME Embedded Single-Board Computer
Motorola MVME162-213 Double-High 6U VME Embedded Single-Board Computer - Image 2

Description

Technical Specifications

Category Details
Processor Subsystem Microprocessor: Motorola MC68LC040 (32 – bit, on – chip 8 KB unified cache, MMU, no FPU); Clock Speed: 25 MHz; Local Bus: 32 – bit data/address, 25 MHz operation
Memory Configuration Main DRAM: 4 MB parity – protected DRAM (expandable to 8 MB via on – board sockets); SRAM: 512 KB battery – backed SRAM (retains data for 10+ years with lithium battery); NVRAM/TOD Clock: 8 KB MK48T08 NVRAM with time – of – day (TOD) clock, battery – backed; Flash/EPROM: 1 MB flash memory for firmware, 1 x 32 – pin PLCC EPROM socket (max 4 MB)
I/O & Expansion Interfaces 1. 2 x EIA – 232 – D serial ports (1 x console DTE, 1 x user – configurable EIA – 232/EIA – 530 DTE/DCE, max 115.2 kbps, 33C93 UART); 2. 1 x 10Base – T Ethernet (AMD AM7990 controller, DMA – enabled, IEEE 802.3 compliant); 3. 1 x SCSI – 2 interface (NCR 53C93 controller, DMA – enabled, 4 MB/s sync transfer); 4. 2 x IndustryPack (IP) expansion ports (32 – bit, 1 DMA channel per port, supports IP – 2/IP – 6 modules); 5. 6 x 32 – bit tick timers + 1 watchdog timer (configurable timeout: 1 ms–10 s); 6. VMEbus system controller I/O (A16/A24/A32, D8/D16/D32)
VMEbus Compliance Standard: IEEE 1014 (VME64), ANSI/VITA 1; Master Capability: A32 address, D32 data, 4 – stage requester, burst DMA; Slave Capability: A16/A24/A32, D8/D16/D32, 7 – stage interrupt handler; Arbitration: Round – Robin/Priority configurable; System Controller: On – board VMEbus system controller with LMA32 support
Power Requirements VME P1/P2 Power: + 5 VDC (4 A typical, 6 A max), ±12 VDC (0.3 A each typical); Total Power Consumption: 22 W (max)
Environmental Ratings Operating Temperature: – 40°C to + 85°C; Storage Temperature: – 55°C to + 125°C; Vibration: 10–500 Hz, 1 g rms; Shock: 50 g, 11 ms; ESD Protection: ±8 kV (HBM); Humidity: 5%–95% non – condensing
Physical Form Factor Double – High 6U VME Module: 233 mm × 320 mm (standard 6U VME size); Weight: 500 g; Mounting: VME P1/P2 backplane connectors; Front Panel: LED indicators (power, bus activity, errors), reset button, serial console port
OS & Firmware Supported OS: VxWorks 5.x, pSOSystem, NetBSD/mvme68k; Factory Firmware: On – board debugger, POST, VMEbus diagnostic utilities
Ordering Part Numbers Base Part: 01 – W4200B02; Variant: MVME162 – 213 (4 MB DRAM, 2 IP ports, Ethernet, SCSI)

Application Scenarios

  • Industrial Automation & Control: Powers DCS and PLC systems in automotive manufacturing, semiconductor fabrication and packaging lines, connecting IndustryPack I/O modules to sensors/actuators and Ethernet to SCADA networks.
  • Process Control in Energy/Oil & Gas: Runs real – time control loops in refineries and power plants, with SCSI linking to data loggers and serial ports communicating with flow meters and pressure transducers.
  • Legacy VME System Upgrades: Serves as a drop – in replacement for older MVME162 variants in military ground vehicles, avionics test equipment and railway signaling systems, extending service life without backplane redesign.
  • Test & Measurement Rigs: Controls automated test equipment (ATE) for aerospace components, using IP modules for signal acquisition and Ethernet for remote test sequencing.
  • Embedded Real – Time Data Processing: Used in marine navigation and offshore drilling systems to process sensor data in real time, with battery – backed memory ensuring data integrity during power outages.
  • IndustryPack – Based I/O Expansion: Deploys IP analog/digital I/O modules for data acquisition in research labs and industrial monitoring systems, reducing system complexity and cost.
