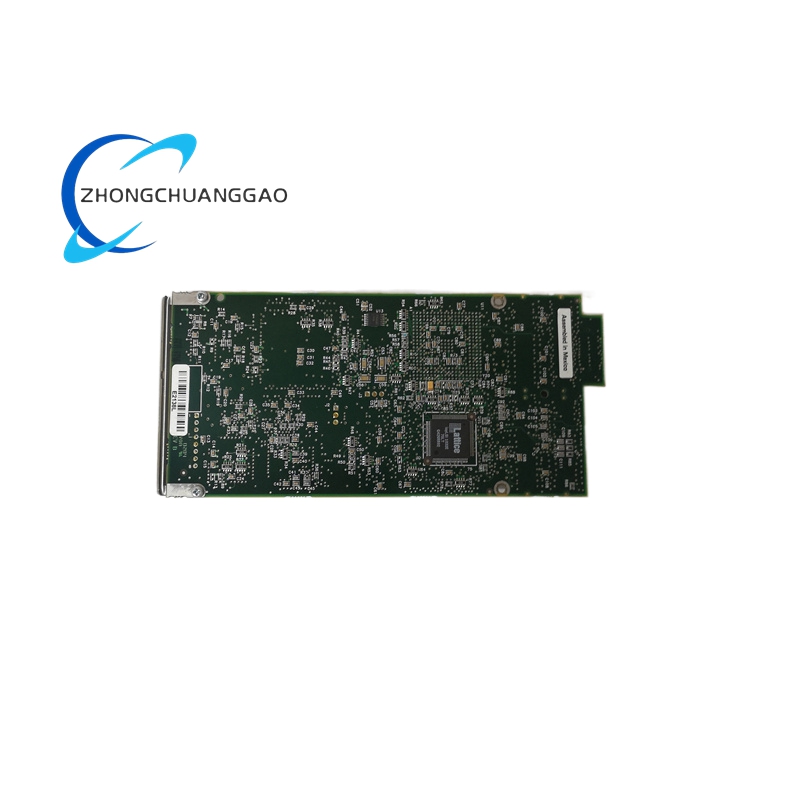

Motorola IPMC712 Multifunction Rear I/O PMC Module

Product Short Description

Diverse Legacy & Industrial I/O Integration: Combines SCSI, parallel, multi – standard serial and Ethernet into one PMC module, eliminating the need for multiple expansion cards.
Rear – I/O Optimization: Routes all I/O to the system rear panel via transition modules, freeing up front – panel space for user – facing controls/indicators.
Protocol Flexibility: Serial ports support multiple industrial protocols (Modbus, Profibus, DNP3) via hardware configuration, adapting to diverse peripheral networks.
SCSI Versatility: Ultra Wide SCSI interface supports high – speed storage (hard drives, tape drives) and industrial scanners with auto – sensing LVD/SE signaling.
VME Ecosystem Compatibility: Seamlessly pairs with Motorola MVME series SBCs (MVME1600/2700/3600) and MVME712M transition modules for plug – and – play integration.
Industrial – Grade Reliability: Wide temperature range, robust ESD/vibration resistance and redundant signal grounding ensure operation in factory floors, oil fields and military – aero deployments.
Configurable Serial Modes: Async/sync ports can be set to DTE/DCE or industry – specific standards (V.35/X.21) via jumpers, matching diverse communication equipment.

Category	Details
Module Type	Multifunction rear – I/O PMC module, IEEE 1386 compliant, 32 – bit/33 MHz PMC interface
I/O Interfaces	1. Ultra Wide SCSI (Ultra2 SCSI, 8 – bit narrow + 16 – bit wide, LVD/SE auto – sensing) 2. 1 x IEEE 1284 parallel port (Centronics – compatible) 3. 3 x asynchronous serial ports (RS – 232/RS – 422/RS – 485 configurable, DB – 25) 4. 1 x synchronous/asynchronous serial port (V.35/X.21/EIA – 530 configurable) 5. 1 x 10/100Base – T Ethernet port (RJ – 45, IEEE 802.3 compliant)
Signal Routing	Compatible with VME P2 backplane; pairs with MVME712M transition module for rear – panel connector access
Power Requirements	PMC standard + 3.3 VDC, + 5 VDC; typical power draw: 8 W (max 12 W)
Environmental Ratings	Operating temperature: – 40°C to + 85°C; storage temperature: – 55°C to + 125°C Vibration: 10–500 Hz, 1 g rms; shock: 50 g, 11 ms; ESD protection: ±8 kV (HBM)
Form Factor & Dimensions	Standard 64 mm × 100 mm PMC card; weight: 120 g; rear – mount via chassis backplane/P2 adapter
Configuration	Jumper – configurable serial port modes (DTE/DCE); SCSI termination selectable via hardware jumper
Compliance	IEEE 1386 (PMC), IEEE 1284 (parallel), SCSI – 3 (Ultra Wide), EIA/TIA – 232/422/485, IEEE 802.3 (Ethernet)
Ordering Configurations	IPMC712 – 001 (base config), IPMC712 – 002 (extended protocol support); part numbers: 84 – W8909F61 B, IPMC7126E – 001

Industrial Automation & Control: Connects VME – based controllers to SCSI – based data loggers, serial – linked sensors/actuators and Ethernet – enabled HMIs in automotive, manufacturing and packaging lines.
Process Control Systems: Links PLCs and DCS nodes to weight scales, flow meters and temperature controllers via parallel/serial ports in chemical, oil and gas industries.
VME – Based Embedded Computing: Expands I/O for Motorola MVME series SBCs in military vehicles, avionics ground systems and railway control systems requiring rear – panel I/O.
Legacy Peripheral Integration: Interfaces with aging SCSI storage, parallel printers and serial modems in industrial legacy systems, extending system lifespan without redesign.
Test & Measurement Rigs: Connects to oscilloscopes, data acquisition units and signal generators via multiple serial/Ethernet ports for automated test sequencing.
Networked Industrial Gateways: Acts as a protocol converter between serial field buses (RS – 485) and Ethernet networks, enabling data aggregation for SCADA systems.
Military & Aerospace Ground Systems: Supports communication with radios, GPS receivers and telemetry equipment via configurable serial ports in harsh field environments.
