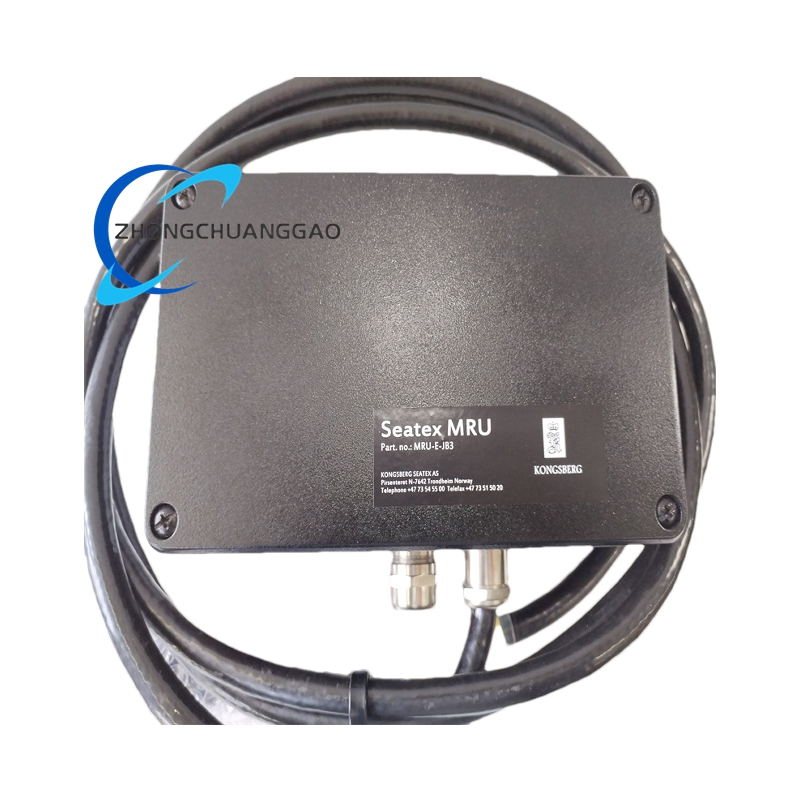

Product Short Description
Technical Specifications
-
Output Accuracy
-
Roll / pitch static RMS: 0.03°
-
Roll / pitch dynamic 1-sigma: 0.010°
-
Heave real-time RMS: 5 cm or 5 % (whichever is greater)
-
Heave delayed RMS: 1 cm or 1 % (whichever is greater)
-
-
Heave Period Range
-
Real-time: up to 25 s
-
Delayed (post-processed): up to 50 s
-
-
Data Output Rate
-
200 Hz maximum for high-speed applications
-
Description
-
Interfaces
-
Serial: RS-232, RS-422
-
Ethernet: 10/100 Mbit (on compatible MRU-E variants)
-
Analog: 0–10 V or 4–20 mA (via JB3 terminal strips)
-
-
Power Supply
-
Input: 100–240 V AC, 50/60 Hz, 0.6 A
-
Output: 24 V DC, 0.63 A to MRU sensor
-
-
Mechanical & Environmental
-
Dimensions: 226 mm × 126 mm × 90 mm
-
Weight: 2.0 kg
-
Enclosure: aluminium with IP-66 protection
-
Operating temperature: –25 °C to +70 °C
-
Storage temperature: –25 °C to +70 °C
-
Functional Features
-
PFreeHeave Algorithm: Delivers precise heave at long wave periods without external aiding
-
Lever-Arm Compensation: Configurable monitoring points for multiple onboard or subsea reference locations
-
Real-Time & Delayed Outputs: Simultaneous low-latency and high-accuracy heave streams
-
Plug-and-Play Integration: Factory-terminated glands (9–21 mm clamping range) simplify cable routing
-
Type Approval: Certified by ABS, BV, CCS, DNV, KR, LR, RS, NKK, PRS, RINA
Application Scenarios
-
Marine & Offshore: Dynamic positioning, crane heave compensation, wave-height monitoring
-
Naval & Defense: Ship attitude reference for weapon systems and helicopter landing aids
-
Survey & Research: Motion correction for multibeam echo-sounders, USBL and LBL positioning
-
Industrial: Motion compensation for offshore wind turbine installation and maintenance vessels
