Product Short Description

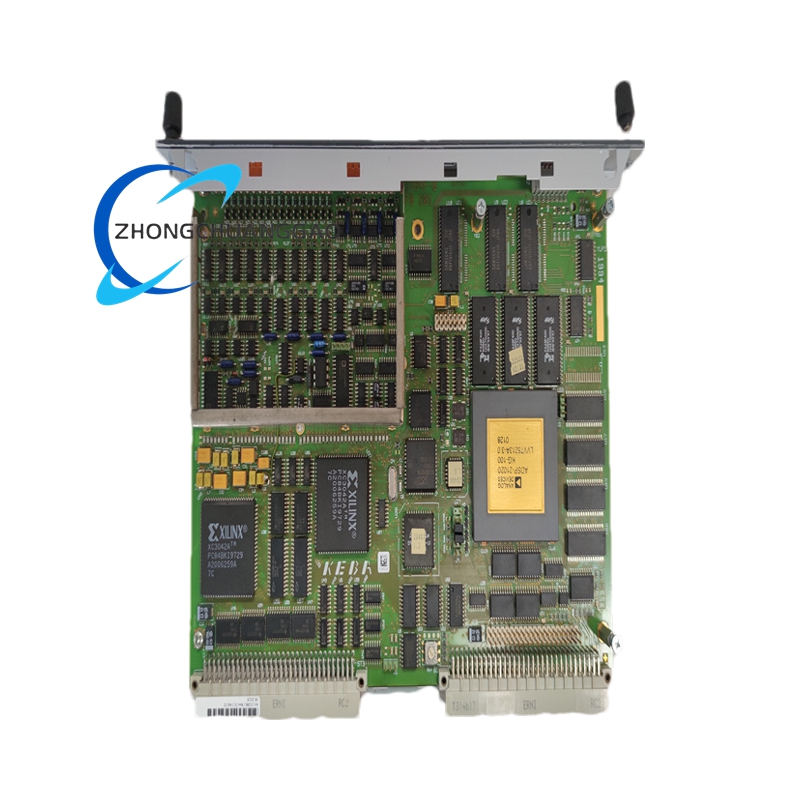

The KEBA FB201 is a compact, rack-mount PLC / CPU card that serves as the control core or field-bus interface within KEBA automation systems. It is engineered for high-speed data acquisition, real-time motion control and flexible I/O expansion in demanding industrial environments.
Description
Technical Specifications
-
Supply Voltage: 24 V DC ± 20 %
-
Power Consumption: 5 W
-
Processor: 32-bit RISC CPU
-
RAM: 128 kB
-
ROM: 512 kB
-
I/O Capacity: up to 256 points (digital / analog)
-
Dimensions: 96 mm × 96 mm × 60 mm (card version)
-
Weight: 0.45 kg
-
Operating Temperature: 0 °C to +55 °C
-
Storage Temperature: –20 °C to +70 °C
-
Humidity: 5 % – 95 % RH non-condensing
-
Protection Class: IP65 (housing version) / IP20 (open-frame version)
-
Certifications: IEC 61131-3, EMC, CE
Communication Interfaces
-
Ethernet 10/100 Mbit/s
-
RS-232 / RS-485 serial links
-
USB device / host port
-
CANopen, Modbus RTU/TCP, DeviceNet (configurable)
Functional Features
-
Real-time, millisecond-level control loops
-
Hot-swappable design for on-the-fly module replacement
-
Integrated diagnostics with LED status and web interface
-
Modular I/O extension via KEBA backplane
-
Ladder logic, FBD, ST, SFC programming (KE-Studio)
-
Vector & scalar motor control (0 – 400 Hz output)
-
Multi-signal compatibility: LVDT, temperature, eddy-current, air-to-electric sensors
Application Scenarios
-
Plastic injection molding machines
-
Industrial robotics and multi-axis motion control
-
Packaging, printing and textile machinery
-
Building automation and HVAC systems
-
Water treatment and energy management
-
Test rigs and measurement stations
Ordering Information
-
Part Number: FB201
-
Package includes: CPU card, retention clips, 24 V power plug, quick-start guide
-
Optional accessories: remote HMI panels, I/O slices, protocol cables
