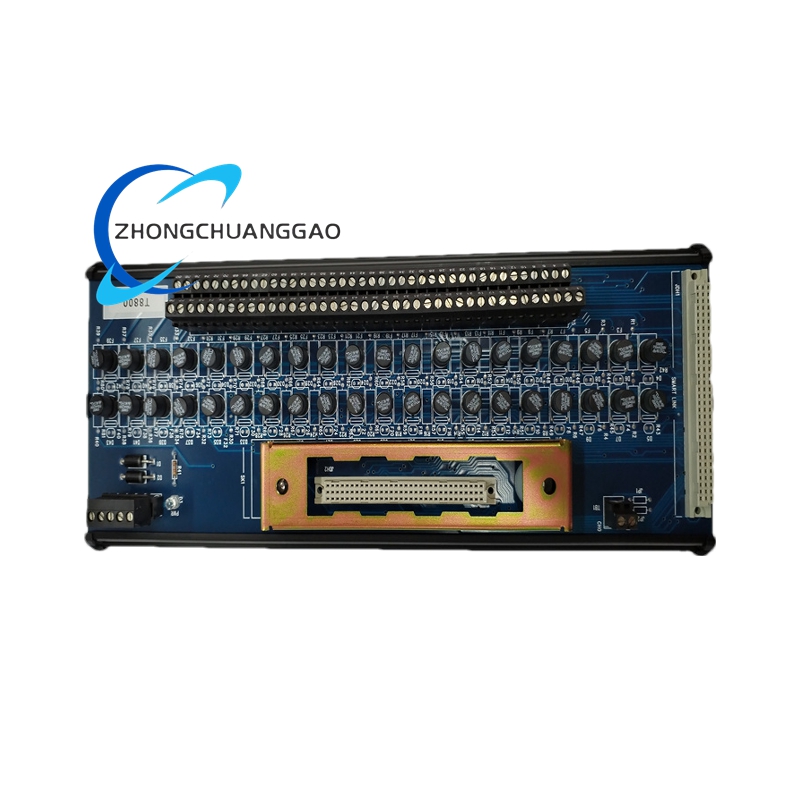

Product Short Description
Technical Specifications
• Channels: 40 isolated digital inputs
• Input voltage range: 18 – 32 V DC (nominal 24 V DC)
• Input current: 4 mA per channel at 24 V DC
• Thresholds: ON ≥ 18 V DC, OFF ≤ 5 V DC
• Response time: < 1 ms from field change to TMR vote
• Isolation: 1 kV channel-to-channel and channel-to-ground
• Power supply: fed from Trusted backplane, 10 W typical consumption
• Operating temperature: –40 °C to +85 °C
• Storage temperature: –55 °C to +85 °C
• Humidity: 5 % – 95 % RH non-condensing
• Dimensions: standard 6U single-slot form factor, 233 mm × 160 mm × 20 mm
• Weight: ≈ 1.5 kg
Description
Functional Features
• Triple Modular Redundant (TMR) architecture—three independent microprocessors vote on every input for SIL 3 fault tolerance
• Hot-swappable while system remains in operation
• Built-in self-test and line-monitoring detect open/short circuits on field wiring
• Sequence-of-Events (SOE) capture with 1 ms time-stamp resolution for post-event analysis
• Front-panel LEDs and backplane diagnostic registers for immediate fault indication
• Conformal-coated PCB for harsh-environment longevity
• Triple Modular Redundant (TMR) architecture—three independent microprocessors vote on every input for SIL 3 fault tolerance
• Hot-swappable while system remains in operation
• Built-in self-test and line-monitoring detect open/short circuits on field wiring
• Sequence-of-Events (SOE) capture with 1 ms time-stamp resolution for post-event analysis
• Front-panel LEDs and backplane diagnostic registers for immediate fault indication
• Conformal-coated PCB for harsh-environment longevity
Applications
• Emergency shutdown systems (ESD) in oil & gas refineries and offshore platforms
• Fire & gas detection loops in petrochemical plants
• Turbine and compressor safety interlocks in power generation
• High-density status monitoring in large-scale chemical process plants
• SIL-rated machine-guarding and safety interlocks in manufacturing lines
• Emergency shutdown systems (ESD) in oil & gas refineries and offshore platforms
• Fire & gas detection loops in petrochemical plants
• Turbine and compressor safety interlocks in power generation
• High-density status monitoring in large-scale chemical process plants
• SIL-rated machine-guarding and safety interlocks in manufacturing lines
