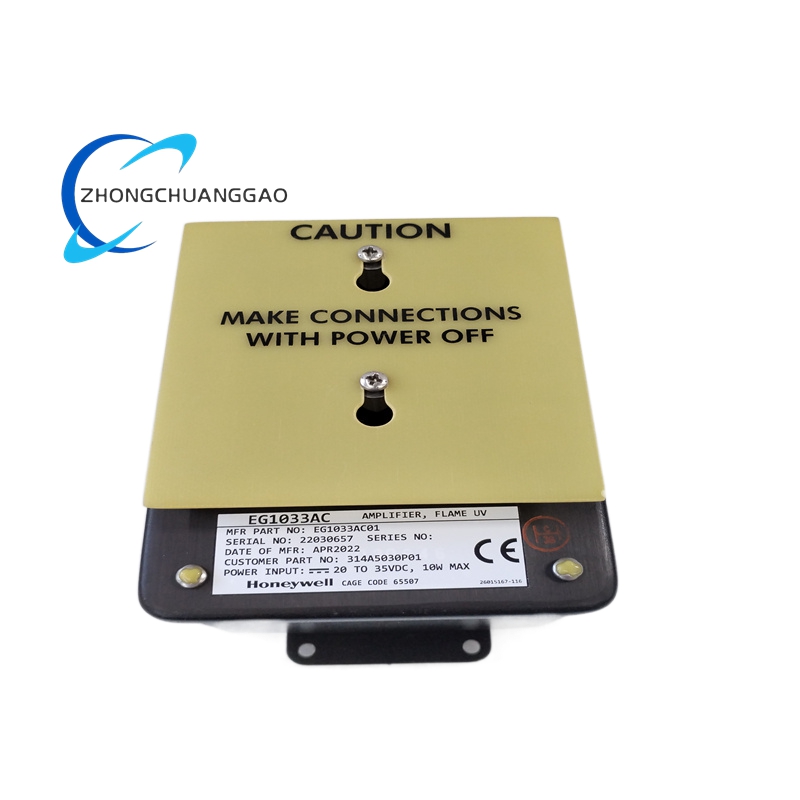

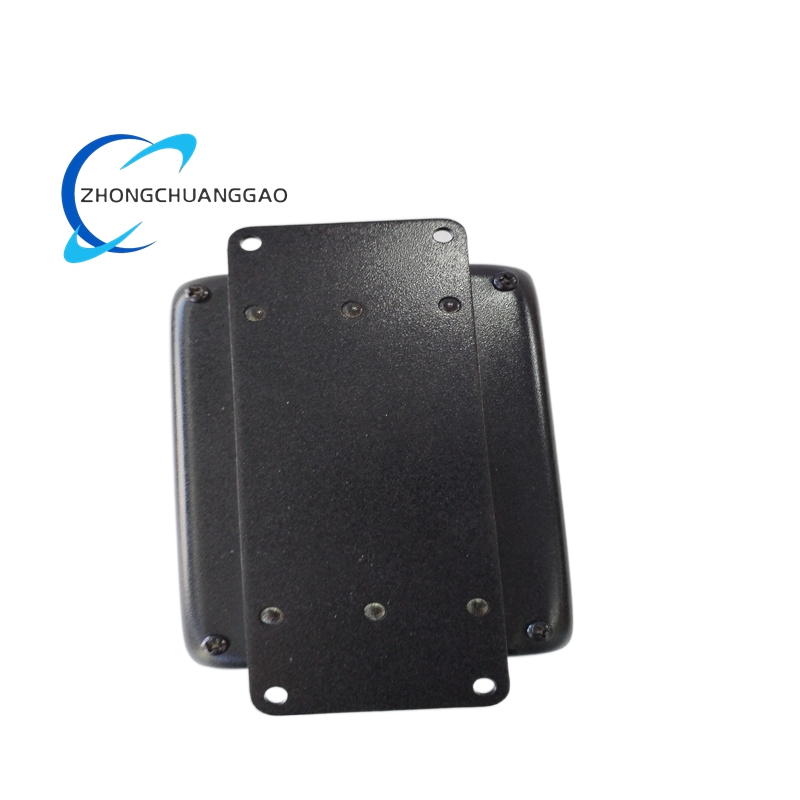

EG1033AC is a Honeywell-manufactured UV Flame Amplifier Module designed for integration with GE (General Electric) turbine control systems, particularly Speedtronic Mark IV/Mark V series. It is a core component of the LG/EG flame monitoring system, which has delivered proven performance on GE and GE-licensed gas turbines for over 35 years. The module works with Geiger Mueller-type UV sensor phototubes to detect UV radiation in the 180-260nm spectral range emitted by hydrocarbon flames, generating a clear flame or no-flame output signal. It features a fast response time, solar-blind operation, and tolerance to black body radiation, ensuring accurate flame detection while ignoring ambient light interference. The module comes with an SPDT relay output for direct interface with turbine safety circuits, and it supports multiple power supply options for flexible system integration. It uses industrial-grade components to ensure reliable operation in harsh industrial environments, with a two-year shelf life and 10,000-hour MTBF, backed by over one billion cumulative operating hours in the field. It serves as a critical safety component that enables turbine control systems to monitor flame presence, trigger alarms, and initiate shutdown protocols to prevent catastrophic failures.
Description
Technical Specifications
- Manufacturer: Honeywell (Qualified for GE Turbine Systems)
- Application Series: GE Speedtronic Mark IV/Mark V, GE-licensed gas turbines
- Module Type: UV Flame Amplifier for LG Series Sensors
- UV Detection Range: 180-260nm (solar-blind, ignores black body radiation)
- Input Sensor: Geiger Mueller-type UV phototube (compatible with LG series sensors)
- Power Supply Options:
- 20-35 VDC (28 VDC nominal)
- 115 VAC (50/60 Hz)
- Output Configuration: SPDT relay (Form C) with 5A @ 250 VAC, 5A @ 30 VDC contact rating
- Response Times:
- Flame Present Response Time: 0.1 seconds (typical)
- Flame Loss Response Time: 0.2 seconds (maximum)
- Sensor Cable Length: Up to 330 meters (1000 feet) between sensor and amplifier
- Operating Temperature: -40°C to 80°C (-40°F to 176°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- MTBF: 10,000 hours (backed by over 10^9 cumulative operating hours)
- Certifications: CE marked (EMC 89/336/EEC, LVD 73/23/EEC, ATEX 94/9/EC for explosive atmospheres)
- Physical Dimensions: 127mm × 76mm × 51mm (5.0×3.0×2.0 inches), weight 0.25 kg (0.55 lbs)
- Mounting: DIN rail or panel-mountable (standard 35mm DIN rail)
- Environmental Protection: IP30-rated enclosure for dust and moisture resistance
Functional Features
- Solar-Blind UV Detection: Operates in the 180-260nm range to avoid false triggers from sunlight and black body radiation, ensuring accurate flame detection.
- Fast Response Performance: Typical 0.1-second flame presence and maximum 0.2-second flame loss response times meet strict turbine safety timing requirements.
- Dual Power Compatibility: Supports both DC and AC power inputs, enabling seamless integration with diverse turbine control system power configurations.
- SPDT Relay Output: Form C relay provides a reliable interface with turbine safety circuits, facilitating direct connection to alarm and shutdown systems.
- Long-Distance Sensing: Supports sensor-amplifier cable lengths up to 330 meters, accommodating large turbine enclosure layouts.
- High Reliability: Industrial-grade components ensure stable operation in high-vibration, temperature-fluctuating turbine environments.
- Simplified Maintenance: Plug-and-play design allows quick replacement of sensors or amplifiers without complex reconfiguration.
- Compliance with Safety Standards: ATEX and CE certifications ensure adherence to global industrial safety and electromagnetic compatibility requirements.
Functional Advantages
- Accurate Flame Detection: Solar-blind UV sensing eliminates false alarms from ambient light, critical for turbine safety and operational continuity.
- Rapid Safety Response: Fast response times enable immediate safety actions, minimizing damage risks from flame loss or combustion anomalies.
- Flexible System Integration: Multiple power options and standard relay output ensure compatibility with legacy and modern GE turbine control systems.
- Reduced Downtime: High MTBF and plug-and-play design lower maintenance frequency and speed up replacement, maximizing turbine availability.
- Extended Cable Reach: Long sensor-amplifier distance capability simplifies installation in large turbine enclosures without signal degradation.
- Proven Field Performance: Over 35 years of reliable use in GE turbines validates its ability to withstand harsh industrial conditions.
- Cost-Effective Safety Solution: Low total cost of ownership combined with high reliability delivers long-term value in turbine safety monitoring.
Application Scenarios
EG1033AC is essential for flame monitoring in GE turbine and industrial combustion systems, including:
- Gas Turbine Flame Monitoring: Speedtronic Mark IV/Mark V systems for gas turbine startup, operation, and safety protection, triggering alarms or shutdowns during flame loss.
- Combined-Cycle Power Plants: Steam and gas turbine systems, monitoring flame in combustion chambers to ensure efficient and safe power generation.
- Turbine-Driven Compressors: Petrochemical and pipeline compression stations, using flame detection to protect turbine-driven compressors from combustion-related failures.
- Turbine Safety Shutdown Systems: Integrating with safety logic solvers to initiate emergency shutdowns when flame anomalies are detected, preventing equipment damage and personnel harm.
- Industrial Combustion Processes: Refining and chemical facilities, monitoring burner flames in turbine auxiliary systems to maintain process stability and safety.
- Marine & Offshore Turbines: Shipboard and offshore platform gas turbines, with rugged design to withstand high vibration and temperature variations at sea.
