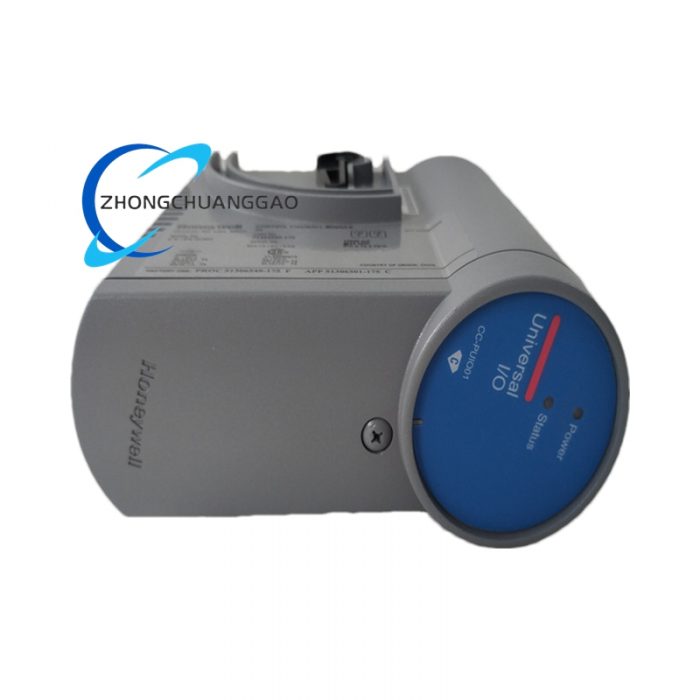

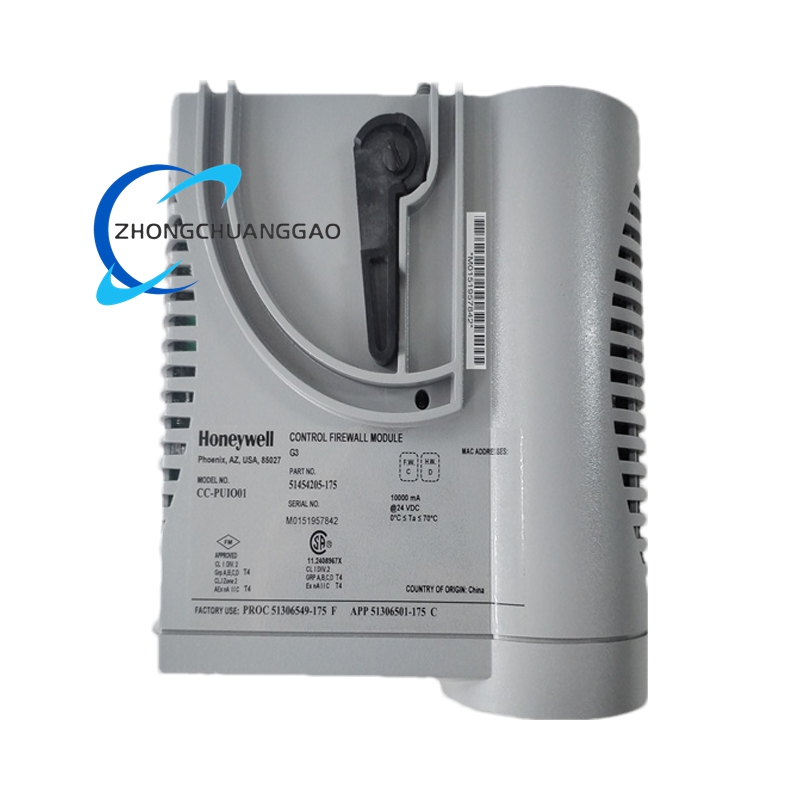

HONEYWELL CC-PUIO01

Product Short Description

Analog Input
- Input Type: Current (2, 3, or 4 – wire devices).
- Input Channels: Up to 32 maximum per module (with or without open wire detect).
- A/D Converter Resolution: 16 – bit.
- Input Range: 0 – 20 mA or 4 – 20 mA.
- Normal Mode Rejection Ratio at 60 Hz: 12 dB.
- Input Impedance: 250 Ω nominal.
- Maximum Input Voltage: +36 VDC to – 1.1 VDC.
- Input Scan Rate: 50 ms.

Analog Output
- Output Type: 4 – 20 mA current loop.
- Output Channels: Up to 32 maximum per module (with or without open wire detect).
- Output Ripple: < 125 mV peak – to – peak at power line frequency, across 250 Ω load.
- Output Temperature Drift: 0.001% of full scale / °C.
- Output Readback Accuracy: 0.25% of full scale.
- Output Current Linearity: ± 0.05% of full scale nominal.
- Resolution: 12 – bit.
- Maximum Resistive Load: 700 ohms.
- Maximum Output Compliant Voltage: 14 VDC.
- Maximum Open – Circuit Voltage: 24 VDC.
- Response Time (DAC Input Code to Output): 2 ms.
Pulse Input
- Channels: 15 – 18.
- Frequency: 0 – 10 kHz.
- Minimum Pulse Width: 50 µs.
Digital Input
- Open Voltage: 24 VDC.
- Short – Circuit Current: 7 mA.
- Open Contact: 15 kΩ > 0.1 W.
- Closed Contact: 5 kΩ > 0.25 W.
General
- Communication Protocol: Supports Ethernet/IP, Modbus TCP, and Profibus DP.
- Power Supply: 24 VDC.
- Operating Temperature Range: – 40°C to + 70°C.
- Enclosure Rating: IP67.

Function Features

Channel – Configurable: Each channel can be user – configured as analog input, analog output, digital input, digital output, or pulse input (channels 15 – 18).
Open Wire Detection: It has the function of open wire detection.
Fast Scan: Supports fast scan (priority I/O module scan).
Short – Circuit Protection: Provides electronic short – circuit protection.
Safe – State Configuration: Safe – state (fail – opt) behaviors can be configured on a per – channel basis for digital/analog output.
HART Support: Supports HART 7 (analog I/O).

Application Scenarios

Process Control: Such as in chemical, oil and gas industries for monitoring and controlling parameters like temperature, pressure, and flow.
HVAC Control: Used in heating, ventilation, and air – conditioning systems.
Building Automation: For example, in monitoring door and window status, occupancy sensors, etc.
Water and Wastewater Treatment: In the treatment process of water and wastewater.
Power Generation: In power plants for various control and monitoring tasks.
Manufacturing: For monitoring the equipment status and operation processes on the production line.
Mining: Applied in the mining industry for relevant control and monitoring work.
