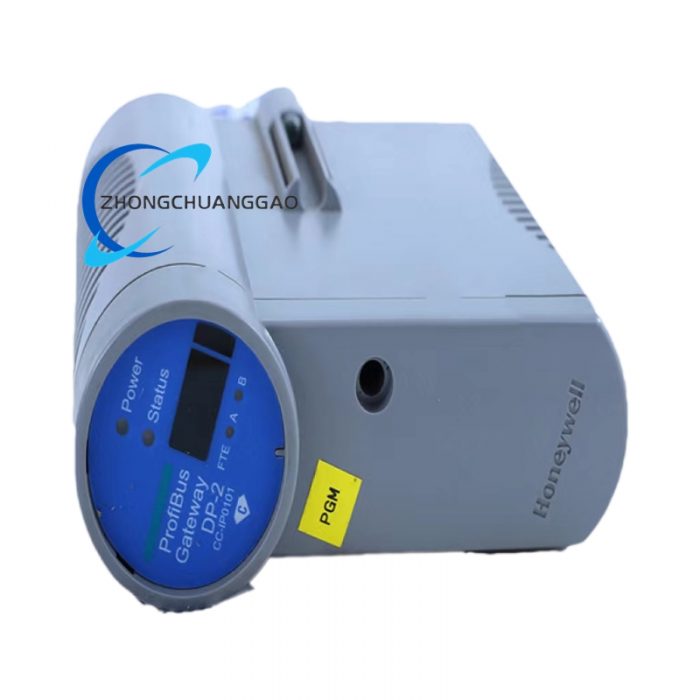

Honeywell CC-IP0101 – Profibus DP Gateway Module Overview

Description

• Dimensions: 190 mm × 69 mm × 23 mm
• Weight: 0.45 kg
• Power: 24 VDC, 10 W consumption
• Operating temperature: –40 °C to +85 °C
• Storage temperature: –40 °C to +85 °C
• Humidity: 5 % to 95 % non-condensing
• Vibration: 5 g peak, 20 Hz–500 Hz
• Shock: 30 g peak for 11 ms
• Approvals: CE, RoHS, IP67 option

• Supports up to 127 Profibus DP devices
• Baud rates: 9.6 kbps to 12 Mbps
• Dual-role operation: configurable as DP master or slave
• Data filtering by device address or data type
• Real-time network traffic monitoring and diagnostics
• Hot-swap capable; no need to power down the rack

• Industrial automation: connect sensors, actuators, drives and I/O blocks to Honeywell DCS
• Process control: integrate legacy Profibus instruments into Experion PKS batch or continuous plants
• Power generation: link turbine auxiliaries, switchgear and protection relays
• Manufacturing: feed production-line data into MES and SCADA layers
• Water treatment: gather flow, level and pressure signals from remote Profibus transmitters
