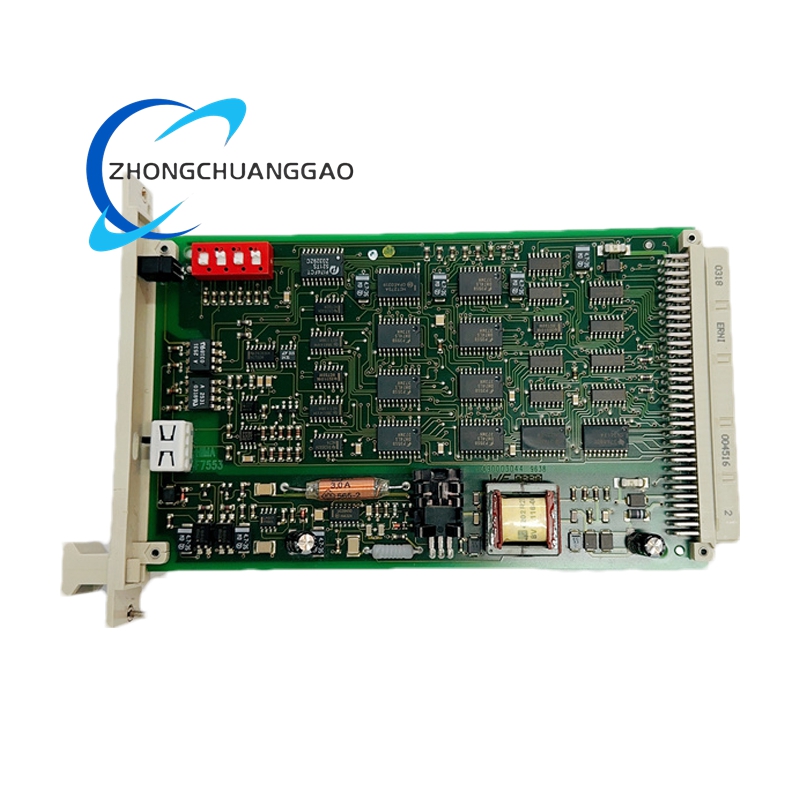

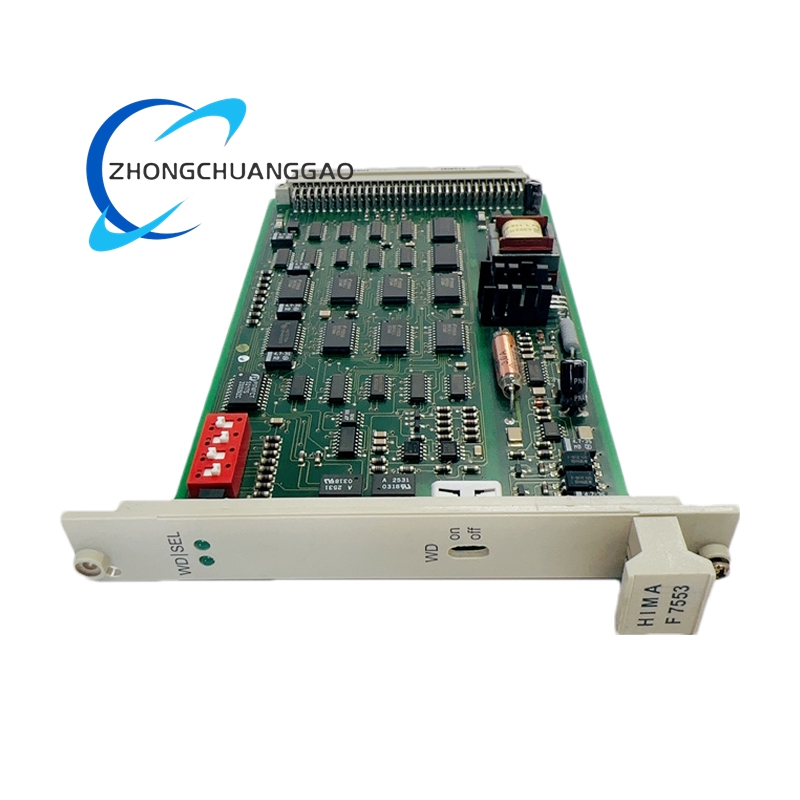

Hima F7553 984755302 Safety – Related IO Bus Coupling Module

Description

• Functional Features
  • Redundant Communication Paths: It is built with two independent communication paths. When one path fails due to line damage or signal interference, the system can immediately switch to the other path. This redundant design completely avoids communication interruption and ensures the continuity of data transmission.
  • Watchdog Timer Monitoring: It is equipped with a built-in watchdog timer that continuously monitors the operating status of the module itself and the connected I/O racks. Once an abnormal fault such as a stagnant program or poor connection is detected, it will send an alarm signal to the upper control system in time to ensure the integrity of the entire system.
  • Hot – Swappable Function: It supports hot-swappable operation. Maintenance personnel can replace or maintain the module without shutting down the entire industrial control system. This function greatly shortens the maintenance time and avoids economic losses caused by system downtime.
  • Efficient Data Transmission: It is designed for high-speed data transfer. It can quickly and accurately transmit digital input and output signals between different components of the automation system, reducing signal delay and ensuring that the control system can make timely responses based on real-time data.
  • Strong System Compatibility: It is perfectly compatible with Hima’s PLC systems, HIMax I/O racks and other hardware components. It can also cooperate with Hima’s special software tools for configuration and programming to flexibly adapt to the personalized needs of different industrial control scenarios.
• Application Scenarios
  • Oil and Gas Industry: It is widely used in the safety control systems of offshore platforms and onshore oil and gas processing plants. It connects the I/O racks that collect signals from pipeline pressure sensors and leakage detectors with the central PLC. When abnormal signals are detected, it can quickly transmit data to trigger emergency shutdown of valves and prevent large-scale oil and gas leakage accidents.
  • Chemical Industry: Applied to the control systems of chemical reaction workshops. It realizes data interaction between the I/O modules that monitor the temperature and pressure of reaction kettles and the main control PLC. It ensures that the parameters of each chemical reaction process are accurately fed back and controlled, and avoids dangerous accidents such as reactions out of control caused by communication delays.
  • Power Generation Industry: Integrated into the safety monitoring systems of thermal power plants and nuclear power plants. It connects the I/O racks responsible for monitoring generator sets, transformers and other equipment with the central control system. It guarantees the timely transmission of data such as equipment temperature and operating current, and helps the system quickly start protective measures when overloading or overheating occurs.
  • Metallurgical Industry: Used in the control systems of blast furnaces and steel rolling production lines. It couples the I/O modules that collect signals such as furnace temperature and molten steel flow with the PLC. It ensures that the production equipment adjusts parameters in real time according to the process requirements, and maintains the stability of the metallurgical production process.
  • Water Treatment Industry: Applied to the automatic control systems of urban sewage treatment plants and industrial wastewater treatment facilities. It connects the I/O racks that collect water quality sensors and pump operation status signals with the control system. It realizes the efficient transmission of data in the processes of water filtration and disinfection, and ensures that the treated water quality meets the discharge standards.
