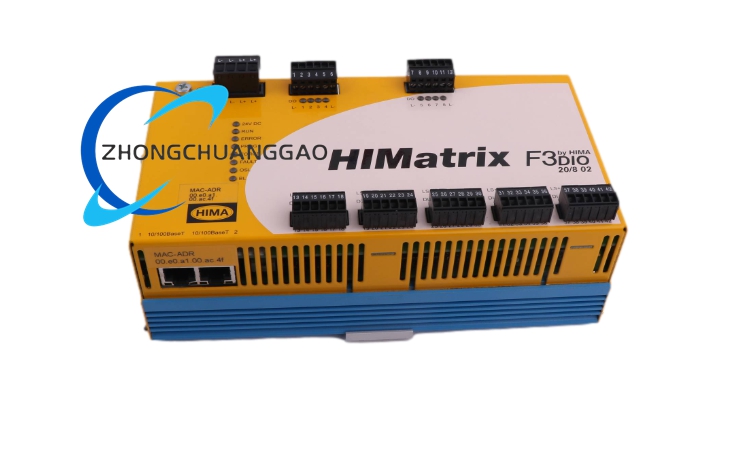

Hima F3DIO20802 Industrial-Grade Digital Input/Output Module

Description

• Functional Features
  • Comprehensive Fault Protection: The module is equipped with overload, overvoltage and short-circuit protection functions. These protection mechanisms can quickly respond when abnormal electrical conditions occur, avoid damage to the module itself and connected external equipment, and effectively extend the service life of the entire equipment.
  • Support for Hot-Swapping: It supports hot-swapping operation. Maintenance personnel can remove and replace the module without shutting down the entire industrial control system. This greatly reduces the downtime caused by equipment maintenance and improves the continuous operation efficiency of the production line.
  • Convenient Status Monitoring and Diagnosis: Equipped with LED indicators for real-time status monitoring of input and output signals and module operation. Combined with its own diagnostic function, it can quickly locate fault points such as signal interruption and channel failure, which helps maintenance personnel troubleshoot and resolve problems efficiently.
  • Strong System Compatibility: It can seamlessly connect with PLC and DCS systems, and supports communication protocols such as DeviceNet and Modbus TCP/IP. It can also be used with equipment in SILworX and ELOP II factories, which has strong compatibility and can adapt to different industrial control system architectures.
  • Redundant Fault Tolerance: Redundant components and fault detection mechanisms are adopted inside the module. When a local component fails, the backup component can quickly take over the work. This ensures the integrity of the system and avoids system collapse or functional failure caused by a single component fault.
• Application Scenarios
  • Petrochemical and Oil and Gas Industry: It is used to monitor and control key equipment such as chemical reaction kettles and oil and gas pipelines. It collects signals such as pressure and temperature of reaction kettles through input channels, and controls the opening and closing of pipeline valves through output channels. When abnormal data is detected, it can trigger emergency cut-off valves in time to prevent leakage and explosion accidents.
  • Power Industry: Applied in the control systems of thermal power plants, hydropower stations and other power generation facilities. It monitors the vibration of generator sets, the operating status of cooling systems and other parameters. Once an abnormal situation such as overload occurs, it can send signals to control the start and stop of auxiliary equipment to protect the safety of power generation equipment and avoid large-scale power outages.
  • Pharmaceutical and Food Industry: In the clean room production environments of pharmaceutical and food factories, it collects temperature and humidity signals through digital input channels. It controls the operation of air conditioning and disinfection equipment through output channels to ensure that the production environment meets GMP specifications and guarantees the quality and safety of products.
  • Robot and Automation Manufacturing: Integrated into robot workstations and automated production lines. It receives position and action signals from industrial robots through input channels, and controls the start, stop and running speed of conveyor belts, stamping machines and other equipment through output channels, realizing the coordinated operation of the entire production line and improving production efficiency.
  • Intelligent Building and Transportation Fields: In intelligent buildings, it is used to connect sensors such as smoke detectors and access control devices, and control the operation of fire-fighting equipment and lighting systems. In intelligent transportation systems, it can collect traffic signal status signals and control the switching of road traffic lights and the operation of toll gate equipment to ensure the smooth operation of traffic.
