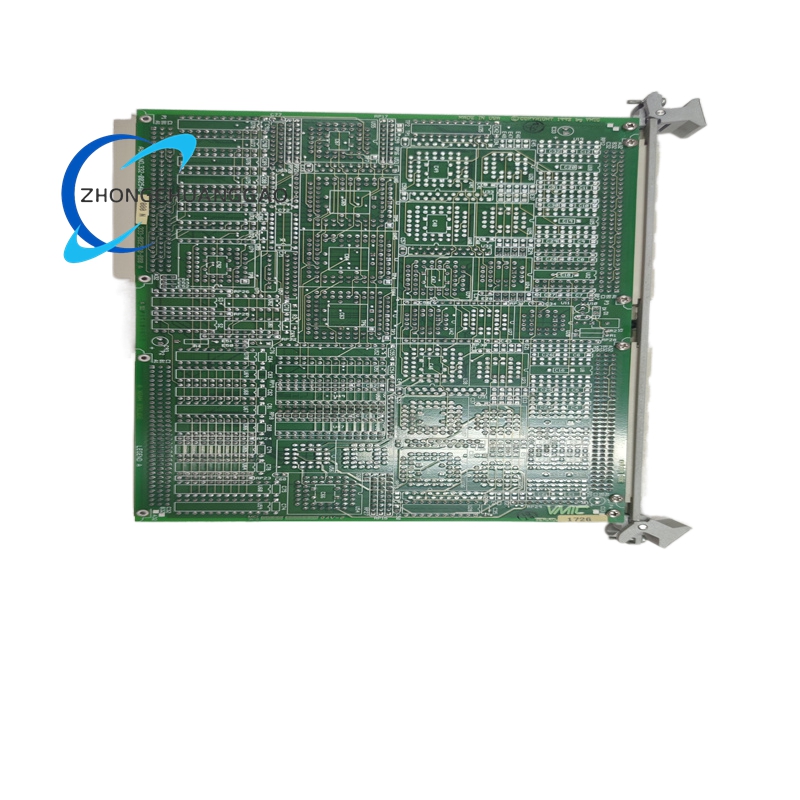

GE VMIVME-2540-000 Intelligent Counter/Controller VMEbus Module

Description

Technical Specifications

Core Measurement & Control

• Channel Configuration: 4 independent measurement/control channels (factory‑fixed for this variant)
• Processor: On‑board 15 MHz Motorola 68HC000 microprocessor
• Timing Controller: AM9513A System Timing Controllers (STCs) for counting/timing functions
• Counter Resolution: 16‑bit per channel; 32‑bit extended counting (up to 4 giga‑events)
• Input Types: RS‑422 differential (primary) + single‑ended TTL compatible
• Input Frequency: Up to 2.5 MHz for event counting; quadrature up to 1 MHz
• Measurement Modes:
  • Event counting (programmable limit/gate)
  • Quadrature position (sin/cos) with limit/modulo checking
  • Period/pulse‑width measurement (16/32‑bit, 400 ns resolution)
  • Frequency measurement (1.16 × 10⁻³ Hz to 2.5 MHz)
  • Frequency division & pulse train generation (0.0076 Hz to 2.5 MHz)
• Output Type: Discrete digital outputs; 12‑bit resolution; ±10 mA source/sink per channel
• Isolation: 3750 VDC optical isolation between channels and VMEbus
• ESD Protection: 4 kV ESD protection on all I/O lines

VMEbus Interface

• Bus Standard: VMEbus (A32/A24/D32/D16/D8 EO) slave interface
• Memory Window: 64 Kbyte VMEbus memory‑mapped interface
• Interrupts: Programmable periodic/timer interrupts (0.0076 Hz to 1,000 Hz)
• Data Transfer: Supports 8/16/32‑bit parallel data transfers

Physical & Electrical

• Form Factor: Single‑slot 6U VMEbus Eurocard
• Dimensions: 233.35 mm × 160 mm × 20.32 mm
• Connectors: Front‑panel RS‑422/TTL I/O connectors; VMEbus P1/P2 backplane connectors
• Power Input: +5 VDC (±5%/-2.5%) from VME backplane
• Power Consumption: Max 8 W @ 5 VDC
• Weight: Approx. 0.5 kg
• Compliance: CE, FCC, RoHS, UL 508

Environmental Ratings

• Operating Temperature: -40°C to +85°C (extended industrial range)
• Storage Temperature: -55°C to +90°C
• Relative Humidity: 20%–80% RH (non‑condensing)
• Vibration: 5 g RMS (10–500 Hz)
• Shock: 15 g (20 ms half‑sine)
• Protection: IP20 (cabinet‑mounted)

Diagnostic Features

• Built‑In Test (BIT): On‑line/off‑line fault detection and isolation
• Watchdog: Dual hardware watchdog for processor and system monitoring
• Status Indicators: Front‑panel LEDs for power, fault, and channel activity
• Self‑Test: Automatic power‑on self‑test sequence

Key Features

• Intelligent On‑Board Processing: 15 MHz 68HC000 CPU autonomously handles real‑time counting/timing, eliminating host CPU bottlenecks.
• 4‑Channel Precision Measurement: Factory‑fixed 4‑channel configuration for focused, high‑accuracy measurement tasks.
• High‑Speed Performance: Supports input frequencies up to 2.5 MHz and 32‑bit extended counting for large‑event applications.
• Isolated I/O: 3750 VDC optical isolation and 4 kV ESD protection ensure system safety and superior noise immunity.
• Multi‑Mode Operation: Performs event counting, quadrature position sensing, period/pulse‑width measurement, and pulse generation.
• Simplified Integration: Memory‑mapped command interface eliminates low‑level STC programming, reducing development time.
• Rugged Reliability: Extended temperature range and high shock/vibration tolerance for operation in harsh industrial environments.
• Comprehensive Diagnostics: Dual watchdog, BIT, and LED status indicators enable proactive system monitoring and fault isolation.
• Versatile Input Support: Compatible with both RS‑422 differential and TTL single‑ended inputs for flexible field connectivity.

Application Scenarios

• Industrial Motion Control: Servo/stepper motor position feedback, precision axis control, and conveyor tracking.
• Factory Automation: High‑speed event counting, part sorting, assembly line monitoring, and packaging machinery control.
• Test & Measurement: Automated test equipment (ATE), signal timing analysis, pulse generation, and high‑resolution data acquisition.
• Process Control: Flow metering, batch counting, valve actuation timing, and discrete manufacturing process monitoring.
• Defense & Aerospace: Avionics timing systems, radar signal processing, weapon system control, and rugged vehicle I/O interfaces.
• Energy & Power: Substation event logging, power grid monitoring, generator control, and renewable energy system instrumentation.
• Oil & Gas: Wellhead pulse counting, pipeline flow measurement, and offshore platform automation.
• Transportation: Railway signaling systems, marine propulsion control, and heavy equipment monitoring.
• Semiconductor Manufacturing: Wafer processing timing, precision motion control, and high‑speed event detection.
