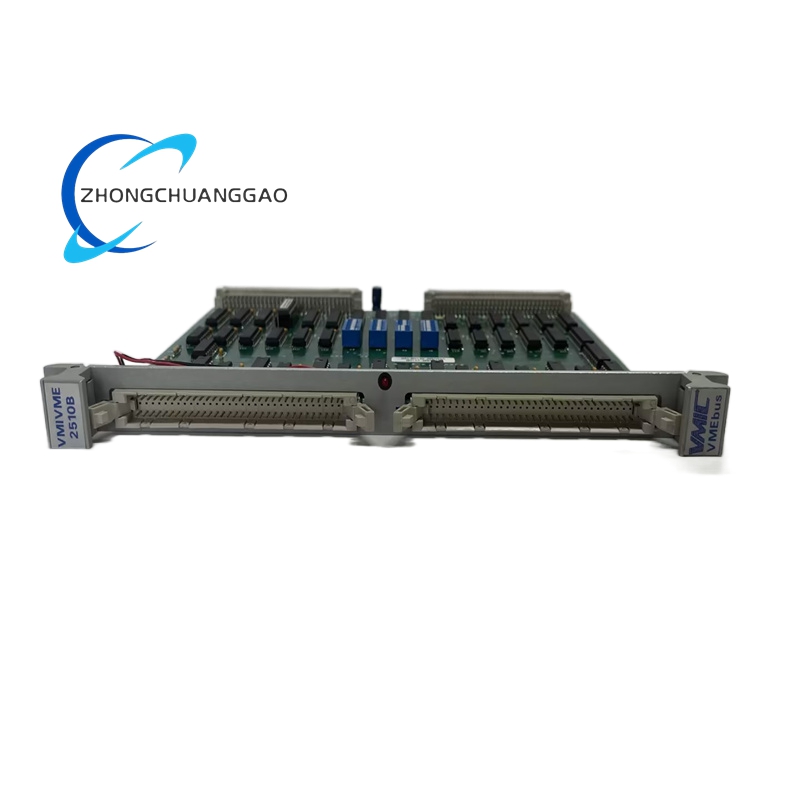

GE VMIVME-2510B 64-Bit TTL I/O Megamodule

Description

Technical Specifications

Core I/O Configuration

• I/O Channels: 64 independent TTL-compatible digital channels, organized as eight 8-bit ports
• Port Direction: Each 8-bit port is individually programmable as input or output
• Logic Levels: TTL-compatible (0–5 VDC); supports positive true logic
• Input Characteristics:
  • High-level input voltage: 2.0 V–5.5 V
  • Low-level input voltage: 0 V–0.8 V
  • Input impedance: 10 kΩ
• Output Characteristics:
  • Sink current: 64 mA per channel
  • Source current: 15 mA per channel
  • Output voltage: 0.4 V (low, max); 2.4 V (high, min)
  • Optional open-collector outputs available
  • Output resistor: 2.2 kΩ (for open-collector variants)

VMEbus Interface

• Bus Standard: VMEbus (VME64 compatible)
• Data Transfer: Supports 8-bit, 16-bit, and 32-bit data transfers
• Address Decoding: Separate board address decoding for control and data registers
• I/O Addressing: Configurable for contiguous I/O addresses to conserve system memory
• Interrupts: Programmable interrupt generation on input state changes

Physical & Electrical

• Form Factor: Single-slot 6U VMEbus Eurocard
• Connectors: High-reliability DIN-type I/O connectors for field wiring
• Power Input: +5 VDC (from VME backplane)
• Power Consumption: Max 5 W
• Dimensions: Standard 6U VME form factor (233.4 mm × 160 mm)
• Weight: Approx. 0.4 kg

Environmental Ratings

• Operating Temperature: -40°C to +70°C
• Storage Temperature: -55°C to +85°C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration: 5 g RMS (10–500 Hz)
• Shock: 15 g (20 ms half-sine)
• Compliance: CE, FCC, RoHS

Diagnostic Features

• Built-In Test (BIT): On-line and off-line fault detection and isolation logic
• Status Indicator: Front-panel Fail LED for fault status indication
• Self-Test: Automatic power-on self-test sequence

Key Features

• 64-Channel High-Density I/O: Provides 64 independent TTL I/O channels in a single VME slot, maximizing system I/O density.
• Individually Programmable Ports: Each 8-bit port can be configured as input or output, offering unmatched I/O flexibility.
• High-Current Drive Capability: Delivers 64 mA sink and 15 mA source current per channel, directly driving industrial loads.
• Comprehensive BIT Functionality: On-line and off-line built-in test logic enables real-time fault detection and isolation, reducing maintenance downtime.
• Flexible Data Transfer: Supports 8/16/32-bit VMEbus transfers for compatibility with diverse host controllers.
• Contiguous I/O Addressing: Configurable for contiguous I/O addresses to optimize system memory usage.
• Rugged Industrial Design: Operates reliably in extreme temperature and vibration environments, suitable for harsh industrial settings.
• Easy Field Integration: High-reliability DIN-type connectors simplify field wiring and ensure long-term connectivity stability.
• Open-Collector Option: Available with open-collector outputs for direct interface with relay coils and other high-voltage devices.
• Status Visibility: Front-panel Fail LED provides immediate visual indication of module faults.

Application Scenarios

• Industrial Automation: Factory floor control, PLC I/O expansion, conveyor systems, and discrete manufacturing control.
• Test & Measurement: Automated test equipment (ATE), digital signal switching, sensor interfacing, and data acquisition systems.
• Process Control: Digital monitoring and control of valves, pumps, and actuators in chemical, pharmaceutical, and food processing plants.
• Defense & Aerospace: Avionics I/O interfaces, ground control systems, radar signal processing, and rugged vehicle control.
• Energy & Power: Substation automation, switchgear control, power distribution monitoring, and renewable energy system control.
• Oil & Gas: Wellhead control, pipeline monitoring, offshore platform I/O, and refinery process control.
• Transportation: Railway signaling systems, marine automation, heavy equipment control, and automotive test systems.
• Material Handling: Automated storage and retrieval systems, robotic control, and warehouse logistics management.
