Product Short Description
Technical Specifications
-

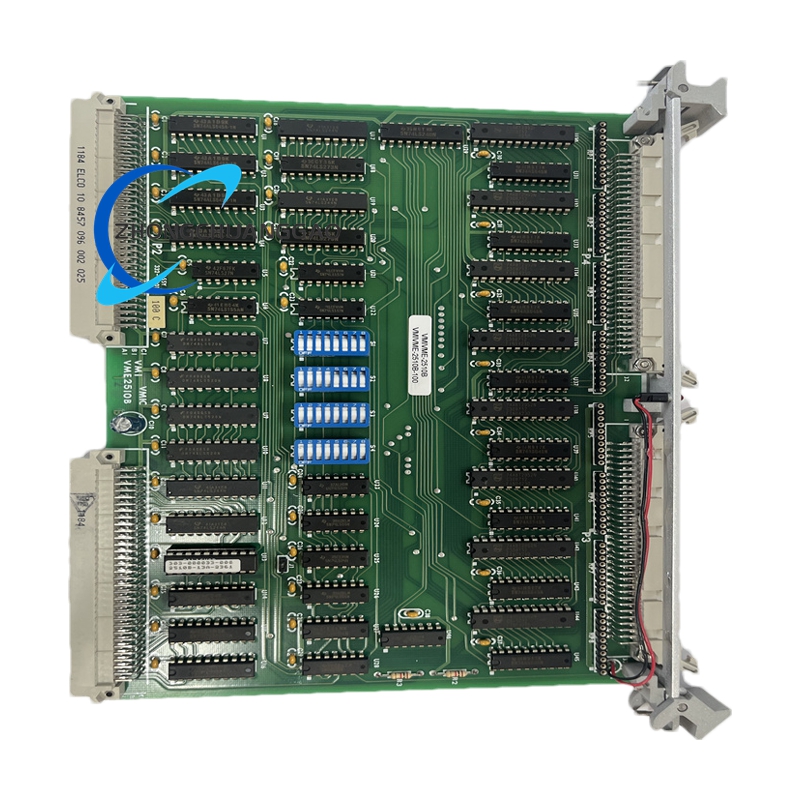

Form Factor: 6U VME64x single-slot card
-
Channels: 64 TTL lines arranged in eight 8-bit ports
-
Port Direction: each 8-bit port independently programmable as input or output via software
-
Drive Capability: 64 mA sink per line, 5 V TTL/CMOS compatible
-
Data Access: 8-, 16-, or 32-bit read/write; supports short I/O and standard VME A16/A24 addressing
Description
-
Speed: < 200 ns typical read-modify-write cycle, sustained burst > 40 MB/s on VME64 bus
-
Isolation: no optical isolation; all lines referenced to single ground plane
-
Power: +5 VDC @ 3 A typical, 4 A peak
-
Diagnostics: built-in online/off-line test logic, front-panel FAIL LED for fault indication
-
Environmental: 0 °C to +70 °C operating, –40 °C to +85 °C storage variant available; 10 g vibration, 5–500 Hz
Functional Features
-
Hot-insertion / hot-swap support under VME64 specification
-
Dual DIP-switch sets give unlimited CSR (control-status register) and data address mapping
-
Real-time bit, byte, word and long-word manipulation without wait states
-
Fail-safe LED indication for open-circuit, stuck-at and power-loss conditions
-
Conformal-coated option for corrosive or high-humidity environments
Application Scenarios
-
High-speed factory automation: packaging machines, robotic I/O expansion
-
Power generation: turbine trip-status capture, breaker control, alarm annunciation
-
Test & measurement: ATE digital stimulus/response, logic-analyzer front end
-
Defense & aerospace: flight simulator discrete controls, weapon-system interfaces
-
Process control: distributed PLC racks, valve manifold actuation, safety interlocks
