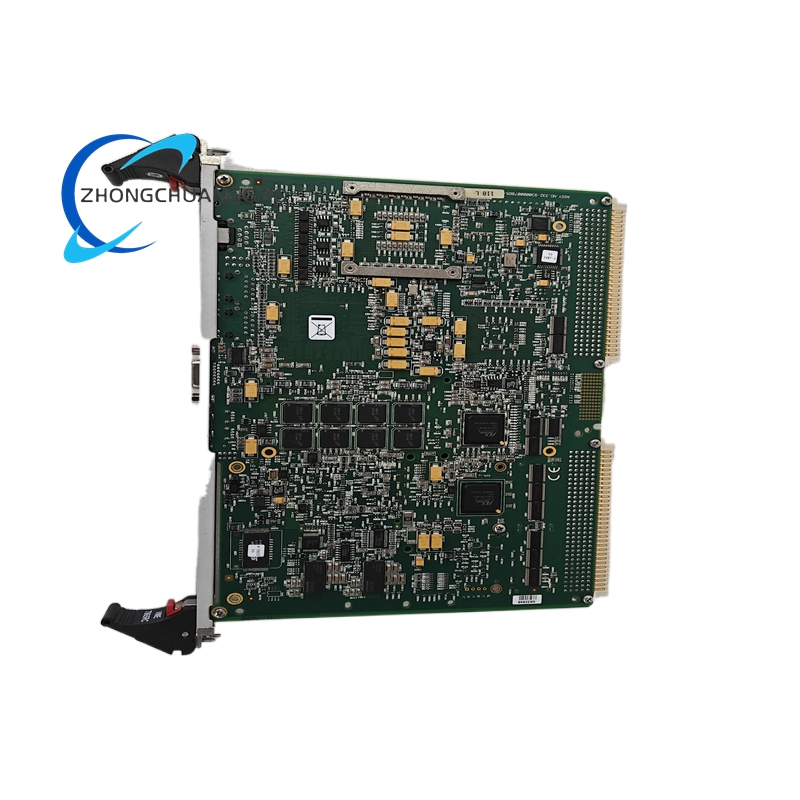

GE VME7865RC VMEbus Single-Board Computer

Description

Technical Specifications

Core Processing

• Processor: Intel Core 2 Duo (up to 2.16 GHz, 4 MB L2 cache); optional Intel Core Duo (1.66 GHz)
• Chipset: Intel 945GM/945GME Express (667 MHz front-side bus)
• VME Bus Interface: Tundra Tsi148, VME64x compliant, 32/64-bit data bus, master/slave operation, 2eSST support (320 MB/s bandwidth)
• Watchdog Timer: Hardware programmable for system fault recovery
• Real-Time Clock: Battery-backed for persistent timekeeping
• Non-Volatile Memory: Reprogrammable Flash for system and video BIOS

Memory & Storage

• System Memory: Up to 3 GB DDR2 SDRAM (1 GB on-board + 2 GB via 200-pin SODIMM)
• Non-Volatile Storage: Bootable CompactFlash support (up to 4 GB); two SATA interfaces for mass storage expansion
• Boot Options: CompactFlash, SATA, network PXE boot

I/O Interfaces

• Ethernet: 2 × Gigabit Ethernet ports (10/100/1000BASE-T, Intel 82571 controller)
• USB: 4 × USB 2.0 ports (2 front-panel, 2 rear I/O)
• Serial: 2 × serial ports (configurable RS-232/422)
• Video: 1 × front-panel SVGA port; 1 × rear DVI-D (dual-head display support)
• Peripheral: Front-panel keyboard/mouse ports
• Expansion: 1 × PCI-X (66 MHz) PMC site for custom I/O module integration
• Rear I/O: Optional VITA 31.1 P0 connector for extended I/O connectivity

Physical & Electrical

• Form Factor: 6U Eurocard (single-slot VMEbus)
• Cooling: Passive cooling (fanless design)
• Power Input: +5 VDC, +12 VDC, -12 VDC from VME backplane
• Power Consumption: Max 25 W
• Dimensions: 233.4 mm × 160 mm × 20.3 mm (6U standard)
• Weight: Approx. 0.6 kg

Environmental Ratings

• Operating Temperature: -20°C to +70°C (commercial); -40°C to +85°C (rugged extended, 1.66 GHz CPU only)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration: 5g RMS (10–500 Hz)
• Shock: 15g (20 ms half-sine)
• Certifications: CE, FCC, RoHS compliant

Key Features

• High-Performance Dual-Core Processing: Intel Core 2 Duo delivers exceptional computing power for real-time applications and multitasking.
• Fanless Passive Cooling: Eliminates moving parts for enhanced reliability in harsh, dust-filled environments.
• High-Speed VME Connectivity: 2eSST support provides up to 320 MB/s backplane bandwidth, 8× faster than VME64.
• Extensive I/O Suite: Dual Gigabit Ethernet, four USB 2.0, two serial, and dual-head video ports enable versatile system connectivity.
• Flexible PMC Expansion: PCI-X PMC slot supports custom I/O modules for application-specific functionality.
• Legacy Compatibility: VME64x compliance ensures seamless integration with existing VMEbus architectures.
• Remote Boot Capability: Supports PXE network boot for centralized deployment and maintenance.
• Rugged Reliability: Hardware watchdog, battery-backed RTC, and non-volatile storage ensure stable long-term operation.
• OS Versatility: Compatible with Windows XP/2000, VxWorks, Linux, QNX, LynxOS, and Solaris.
• Dual-Head Video: Front-panel SVGA and rear DVI-D support dual-display configurations.

Application Scenarios

• Industrial Automation: Factory control systems, PLC/DCS integration, motion control, and process monitoring.
• Defense & Aerospace: Avionics processing, military ground control, radar data acquisition, and rugged vehicle computing.
• Energy & Power: Substation automation, generator control, grid monitoring, and renewable energy systems.
• Oil & Gas: Drilling rig control, pipeline monitoring, offshore platform embedded systems, and refinery automation.
• Test & Measurement: High-speed data acquisition, automated test equipment, and industrial inspection systems.
• Transportation: Railway signaling, marine automation, heavy vehicle management, and aerospace ground support.
• Telecommunications: Network equipment control, embedded communication servers, and base station processing.
