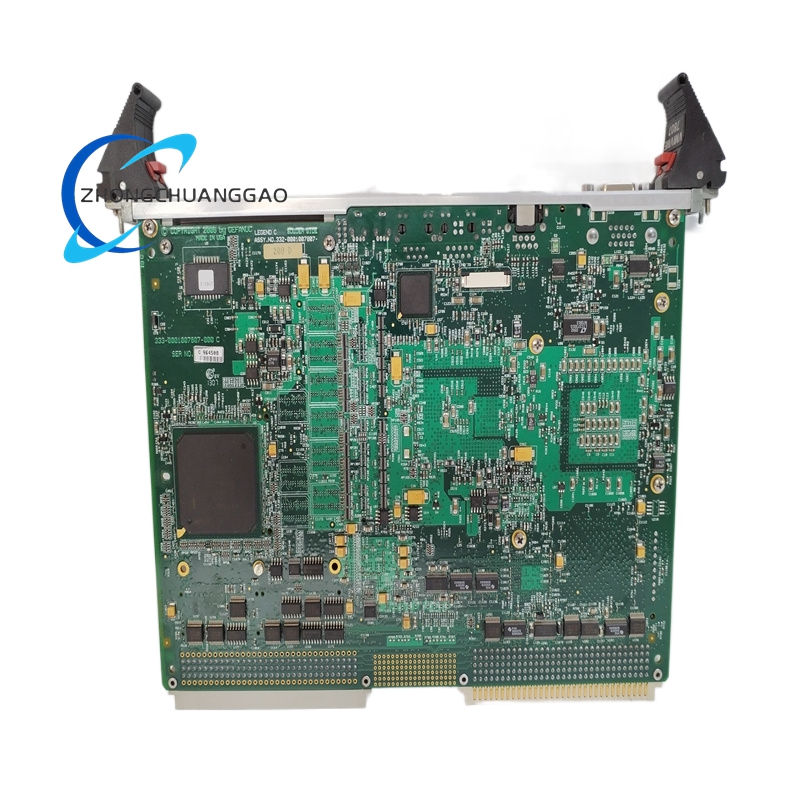

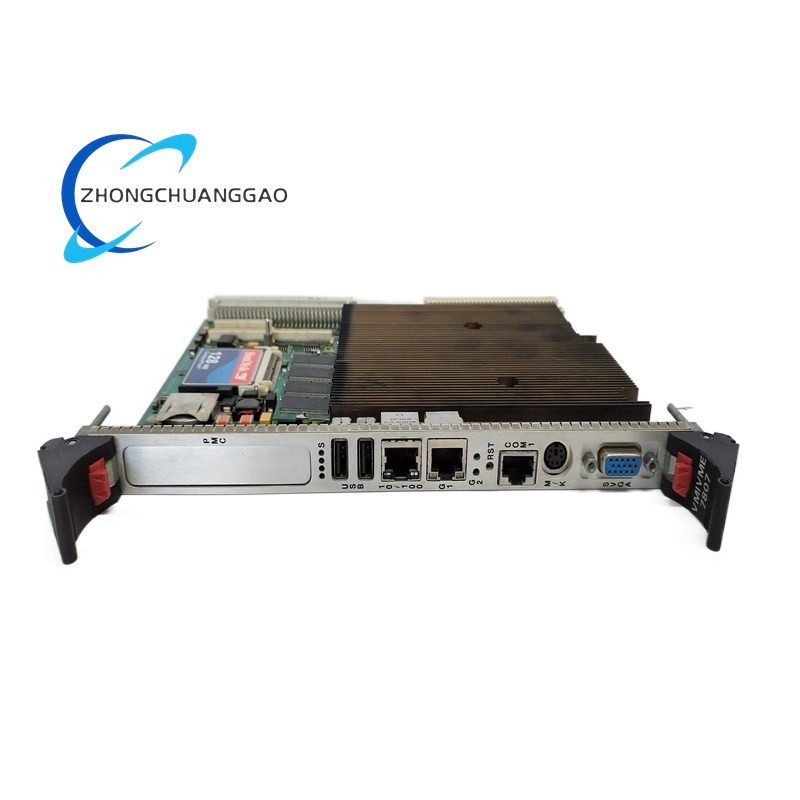

GE VME-7807RC VMEbus Single-Board Computer

Description

Technical Specifications

Core Processing

• Processor: Intel Pentium M, up to 1.8 GHz clock speed
• Chipset: Intel 855GME Express with Advanced Hub Architecture (AHA)
• VME Bus Interface: Tundra Universe II, VME64x compliant, 32/64-bit data bus, master/slave operation
• Watchdog Timer: Software-configurable hardware watchdog with system reset capability
• Real-Time Clock: Battery-backed RTC for persistent timekeeping
• Non-Volatile Memory: 32KB NVRAM for critical configuration storage

Memory & Storage

• System Memory: Up to 1.5 GB DDR SDRAM (1× SODIMM + optional 512MB solder-down memory)
• Flash/BIOS: Reprogrammable Flash memory for system and video BIOS
• Storage Interfaces:
  • IDE interface (primary/secondary channels)
  • Secondary IDE supports CompactFlash (up to 2GB)
  • SATA interface for mass storage expansion
• Boot Options: CompactFlash, IDE, SATA, and remote Ethernet PXE boot

I/O Interfaces

• Ethernet: 2× Gigabit Ethernet ports (Intel 82546GB controller, 10/100/1000BASE-T)
• USB: 4× USB 2.0 ports (2 front-panel, 2 rear I/O)
• Serial: 4× serial ports (configurable RS-232/422/485; 1 front-panel, 3 rear I/O)
• Video: 1× front-panel SVGA port; 1× rear DVI-D (dual-head display)
• Peripheral: Front-panel keyboard/mouse ports
• Parallel: 1× Centronics parallel port
• Expansion: 1× PCI-X (66 MHz) PMC slot for custom I/O module integration
• VITA 31.1: Optional P0 connector for VITA 31.1 rear I/O expansion

Physical & Electrical

• Form Factor: 6U Eurocard (single-slot VMEbus)
• Cooling: Passive cooling (fanless design)
• Power Input: +5 VDC, +12 VDC, -12 VDC from VME backplane
• Power Consumption: Max 18 W
• Dimensions: 233.4 mm × 160 mm × 20.3 mm (6U standard)
• Weight: Approx. 0.6 kg

Environmental Ratings

• Operating Temperature: -20°C to +60°C (commercial); -40°C to +85°C (optional extended)
• Storage Temperature: -40°C to +85°C
• Relative Humidity: 5%–95% RH (non-condensing)
• Vibration: 5g RMS (10–500 Hz)
• Shock: 15g (20 ms half-sine)
• Certifications: CE, FCC, RoHS compliant

Key Features

• High-Efficiency Pentium M Processing: Up to 1.8 GHz Intel Pentium M delivers strong performance with low power consumption.
• Fanless Passive Cooling: Eliminates moving parts for enhanced reliability in harsh, dust-filled environments.
• Extensive I/O Suite: Dual Gigabit Ethernet, four USB 2.0, four serial, and video ports enable versatile system connectivity.
• Flexible PMC Expansion: PCI-X PMC slot supports custom I/O modules for application-specific functionality.
• VME64x Compatibility: Seamless integration with legacy and modern VMEbus architectures.
• Remote Boot Capability: Supports PXE network boot for centralized deployment and maintenance.
• Rugged Reliability: Hardware watchdog, battery-backed RTC, and NVRAM ensure stable long-term operation.
• OS Versatility: Compatible with Windows XP/2000, VxWorks, Linux, QNX, LynxOS, and Solaris.
• Dual-Head Video: Front-panel SVGA and rear DVI-D support dual-display configurations.

Application Scenarios

• Industrial Automation: Factory control systems, PLC/DCS integration, motion control, and process monitoring.
• Defense & Aerospace: Avionics processing, military ground control, radar data acquisition, and rugged vehicle computing.
• Energy & Power: Substation automation, generator control, grid monitoring, and renewable energy systems.
• Oil & Gas: Drilling rig control, pipeline monitoring, offshore platform embedded systems, and refinery automation.
• Test & Measurement: High-speed data acquisition, automated test equipment, and industrial inspection systems.
• Transportation: Railway signaling, marine automation, heavy vehicle management, and aerospace ground support.
• Telecommunications: Network equipment control, embedded communication servers, and base station processing.
