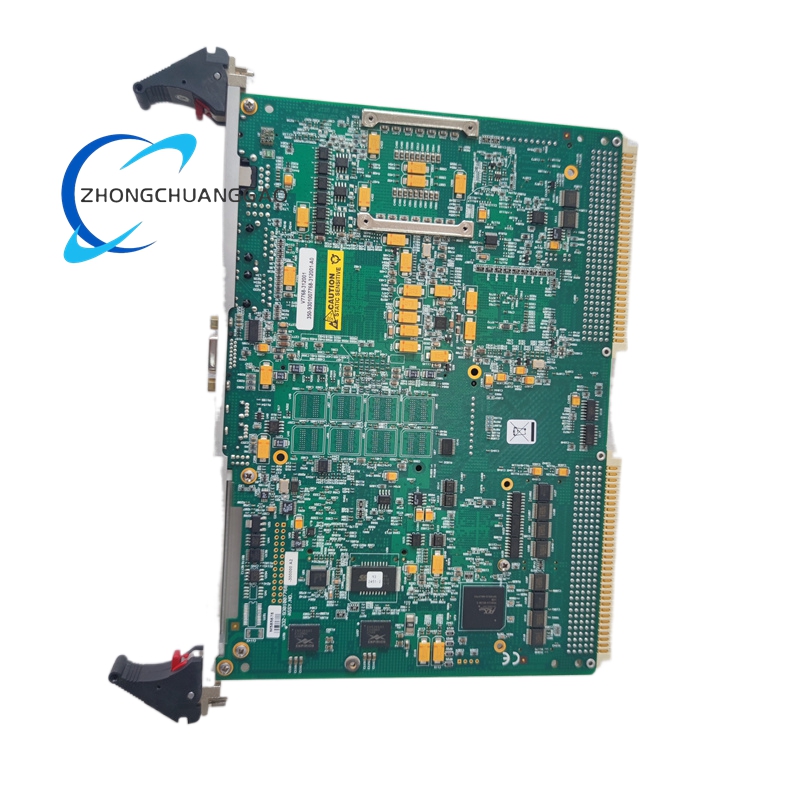

GE V7768-322001 VME Single Board Computer

Description

Technical Specifications

Core Processing & Chipset

• Processor: Intel Core 2 Duo T7400 2.16 GHz
• L2 Cache: 4 MB
• Chipset: Intel 945GME Express + ICH7‑M I/O Controller Hub
• Front‑Side Bus: 667 MHz
• VME Bridge: Tundra Universe II, fully compliant with VME64x specifications
• Watchdog Timer: Hardware programmable watchdog with configurable system reset
• Real‑Time Clock: Battery‑backed RTC for persistent timekeeping across power cycles
• Non‑Volatile Memory: 32 KB NVRAM for critical system configuration storage

Memory & Storage

• System Memory: Up to 2 GB DDR2 SDRAM (single SODIMM)
• Bootable Storage: Up to 8 GB bootable CompactFlash via IDE interface
• Storage Interfaces: 2 × SATA ports for high‑speed mass storage expansion
• Boot Options: CompactFlash, SATA, and network PXE boot

I/O Interfaces

• Ethernet: 2 × Gigabit Ethernet (10/100/1000BASE‑TX)
• Serial: 2 × RS‑232/422/485 (software‑configurable, 16550 UART)
• USB: 4 × USB 2.0 ports (2 front panel, 2 rear P2)
• Video: SVGA graphics output (front panel)
• Peripheral: PS/2 keyboard and mouse ports (front panel)
• Expansion: 1 × PCI‑X PMC site for custom I/O module integration

Electrical & Power

• Form Factor: 6U (4HP) single‑slot Eurocard
• Dimensions: 233.4 mm × 160 mm × 20.3 mm
• Power Input: +5 VDC (±5%), +12 VDC (±5%), -12 VDC (±5%) from VME backplane
• Power Consumption: Typical 22 W (Core 2 Duo configuration)

Environmental & Mechanical

• Operating Temperature: 0°C to +55°C (standard); -40°C to +85°C (optional extended)
• Storage Temperature: -55°C to +85°C
• Relative Humidity: 5%–95% RH (non‑condensing)
• Vibration: 5g RMS (10–500 Hz)
• Shock: 15g (20 ms half‑sine)
• Certifications: CE, FCC, RoHS compliant

Key Features

• Single‑Slot Compact Design: Maximizes chassis space for additional I/O modules in dense VME systems.
• High‑Performance Dual‑Core Processing: 2.16 GHz Core 2 Duo for demanding real‑time and multi‑threaded applications.
• Comprehensive Onboard I/O: Dual Gigabit Ethernet, configurable serial, USB, SATA, and video for versatile system integration.
• PMC Expansion Capability: Supports custom I/O via PCI‑X PMC for application‑specific functionality.
• Industrial Ruggedness: Extended temperature ranges and robust mechanical design for harsh operating environments.
• VME System Compatibility: Operates as system controller or peripheral in standard VME64x architectures.
• Built‑In Reliability: Hardware watchdog, battery‑backed RTC, and NVRAM for stable long‑term operation.
• OS Support: Compatible with Windows XP, Linux, VxWorks, and other real‑time operating systems.
• Boot Flexibility: Supports multiple boot sources for diverse storage and deployment configurations.
