Product Introduction

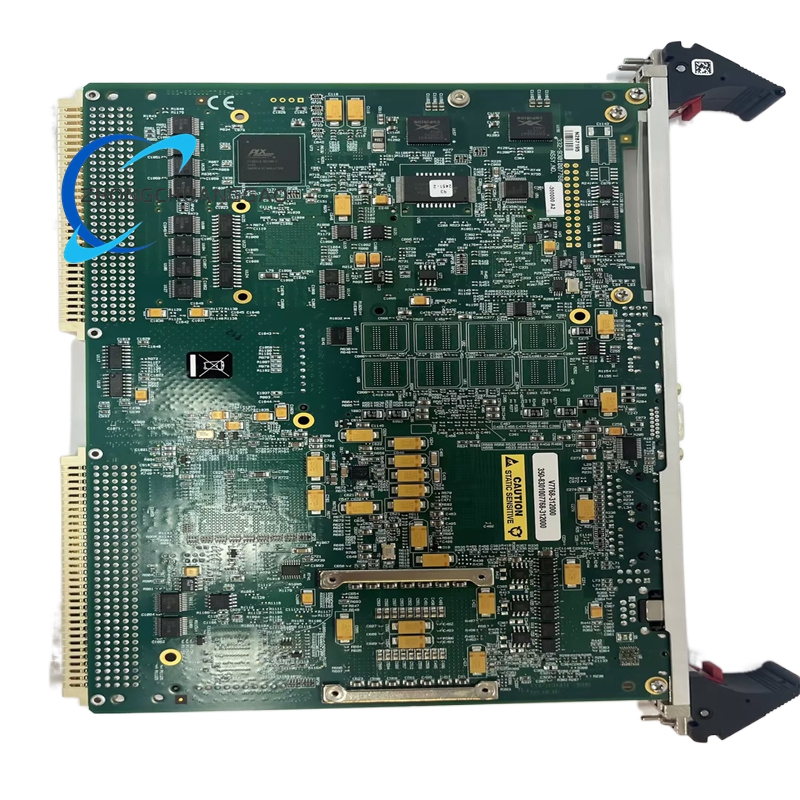

The GE V7768-320001 (A2 hardware revision) is a rugged, high‑performance single‑slot 6U VMEbus single board computer engineered for mission‑critical embedded computing, real‑time control, data acquisition, and communication in harsh industrial, energy, defense, aerospace, and transportation environments. Built on the Intel Core 2 Duo platform with the Intel 945GME Express chipset, this module delivers powerful processing, rich I/O, and industrial‑grade reliability while saving chassis space via its compact single‑slot design. It is fully compatible with VME64x backplanes and legacy VME system architectures.
Description
Technical Specifications
Processor & Chipset
- Processor: Intel Core 2 Duo T7400 2.16 GHz
- L2 Cache: 4 MB
- Chipset: Mobile Intel 945GME Express + ICH7‑M
- Front‑Side Bus: 667 MHz
- VME Bridge: Tundra Universe II (VME64x compliant)
- Watchdog Timer: Hardware programmable watchdog with system reset
- Real‑Time Clock: Battery‑backed RTC for persistent timekeeping
Memory & Storage
- System Memory: 2 GB DDR2 SDRAM (single SODIMM)
- Non‑volatile Memory: 32 KB NVRAM for configuration storage
- Bootable Storage: CompactFlash (up to 8 GB)
- Storage Interfaces: 2 × SATA ports for mass storage expansion
- Boot Options: CompactFlash, SATA, network PXE boot
I/O Interfaces
- Ethernet: 2 × Gigabit Ethernet 10/100/1000BASE‑TX
- Serial Ports: 2 × RS‑232/422/485 (software configurable)
- USB: 4 × USB 2.0 (2 front, 2 rear)
- Video: SVGA graphics output (front panel)
- Peripheral: PS/2 keyboard and mouse ports
- Expansion: 1 × PCI‑X PMC site for I/O expansion modules
Electrical & Power
- Form Factor: 6U 4HP single‑slot Eurocard
- Power Input: +5 V, +12 V, -12 V from VME backplane
- Power Consumption: Typical 22 W
- Isolation: Backplane‑level galvanic isolation
Environmental & Mechanical
- Operating Temperature: -40°C to +70°C (extended industrial)
- Storage Temperature: -55°C to +85°C
- Relative Humidity: 5–95% RH (non‑condensing)
- Vibration Resistance: 5g RMS (10–500 Hz)
- Shock Resistance: 15g (20 ms half‑sine)
- Certifications: CE, FCC, RoHS compliant
Key Features
- Single‑Slot Compact Design: Maximizes chassis space for additional I/O modules
- High‑Performance Dual‑Core Processing: 2.16 GHz Core 2 Duo for demanding real‑time tasks
- Rich Onboard I/O: Dual Gigabit Ethernet, serial, USB, SATA, and video for versatile connectivity
- PMC Expansion Capability: Supports custom I/O modules for application‑specific configurations
- Industrial Ruggedness: Extended temperature and high shock/vibration tolerance
- Full VME Compatibility: Operates as system controller or slave in VME64x systems
- Built‑In Reliability: Hardware watchdog, battery RTC, and NVRAM for stable long‑term operation
- OS Support: Windows XP, Linux, VxWorks, and other real‑time operating systems
- A2 Hardware Revision: Enhanced component reliability and thermal performance
Aplication Scenarios
- Industrial Automation & DCS: Real‑time control, PLC/DCS systems, motion control
- Power & Energy: Substation automation, generator/turbine control, grid monitoring
- Oil & Gas: Drilling rig control, pipeline monitoring, offshore platform systems
- Aerospace & Defense: Avionics processing, radar data handling, military ground control
- Transportation: Railway signaling, marine automation, traction power control
- Test & Measurement: High‑speed data acquisition, automated test equipment
- Telecommunications: Network equipment control, embedded communication servers
- Heavy Machinery: Mining, construction, and material handling equipment control
