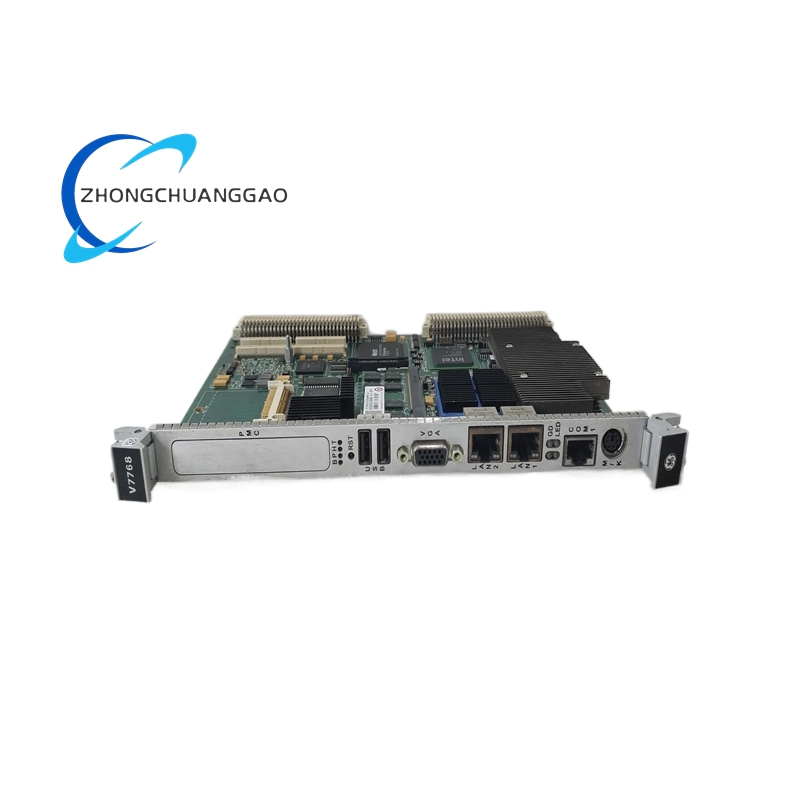

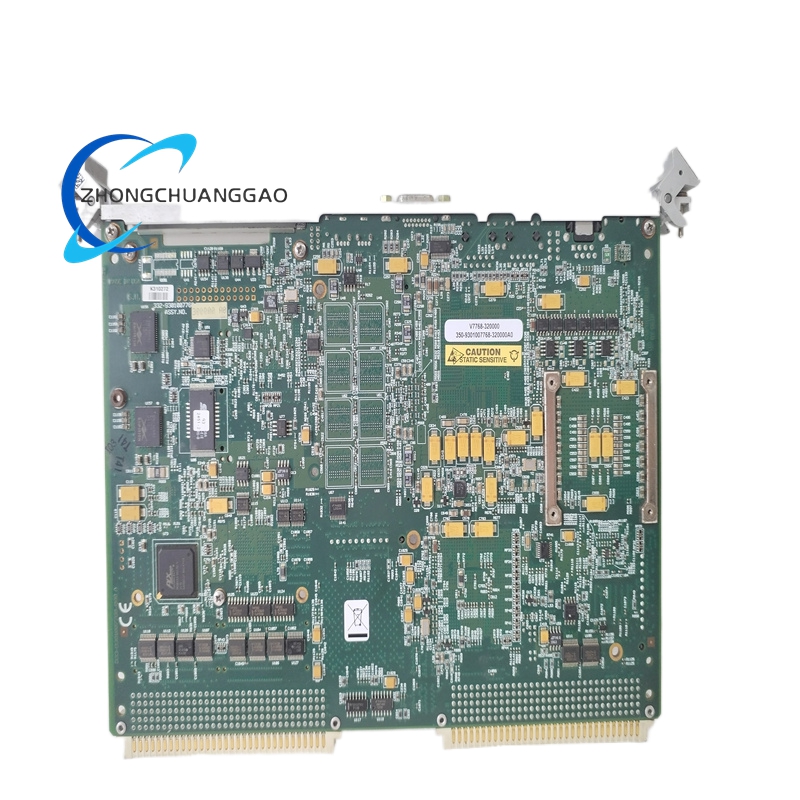

GE V7768-320000 VME Single Board Computer (SBC)

Description

Technical Specifications

Core Processing & Chipset

• Processor Options: Intel Core 2 Duo (2.16 GHz, 4 MB L2 Cache) / Intel Celeron M (1.07 GHz, 1 MB L2 Cache)
• Chipset: Intel 945GME Express + ICH7‑M I/O Controller Hub
• Front‑Side Bus: 667 MHz (Core 2 Duo) / 533 MHz (Celeron M)
• VME Bridge: Tundra Universe II, compliant with VME64x standards
• Watchdog Timer: Hardware programmable watchdog for system fault recovery
• Real‑Time Clock: Battery‑backed RTC for persistent timekeeping

Memory & Storage

• System Memory: Up to 2 GB DDR2 SDRAM (single SODIMM)
• Non‑Volatile Storage: Bootable CompactFlash (up to 8 GB) via IDE interface
• Storage Interfaces: 2 × SATA ports for mass storage expansion
• BIOS: Custom GE system BIOS with video BIOS support

I/O Interfaces

• Ethernet: 2 × Gigabit Ethernet (10/100/1000BASE‑TX, Intel 82571 controller)
• Serial: 2 × RS‑232/422/485 (16550 UART, 16‑byte FIFO) – 1 front panel, 1 rear P2
• USB: 4 × USB 2.0 (2 front panel, 2 rear P2)
• Video: SVGA graphics output (front panel)
• Peripheral: Keyboard/mouse ports (front panel)
• Expansion: 1 × PCI‑X PMC site for I/O expansion modules

Electrical & Power

• Form Factor: 6U (4HP) single‑slot Eurocard
• Dimensions: 233.4 mm × 160 mm × 20.3 mm
• Power Input: +5 VDC (±5%), +12 VDC (±5%), -12 VDC (±5%) from VME backplane
• Power Consumption: Typical 22 W (Core 2 Duo configuration)

Environmental & Mechanical

• Operating Temperature: -20°C to +60°C (standard); -40°C to +85°C (Celeron M extended)
• Storage Temperature: -55°C to +85°C
• Relative Humidity: 5%–95% RH (non‑condensing)
• Vibration: 5g RMS (10–500 Hz)
• Shock: 15g (20 ms half‑sine)
• Certifications: CE, FCC, RoHS compliant

Key Features

• Single‑Slot Compact Design: Maximizes chassis space for additional I/O modules in dense VME systems.
• Dual‑Processor Flexibility: Offers high‑performance Core 2 Duo or extended‑temperature Celeron M options.
• Rich Onboard I/O: Dual Gigabit Ethernet, serial, USB, SATA, and video for versatile system integration.
• PMC Expansion Capability: Supports custom I/O via PCI‑X PMC for application‑specific functionality.
• Industrial Ruggedness: Extended temperature ranges and robust mechanical design for harsh environments.
• VME System Compatibility: Operates as system controller or peripheral in standard VME64x architectures.
• Reliability Features: Hardware watchdog, battery‑backed RTC, and industrial‑grade components for long‑term operation.
• OS Support: Compatible with Windows XP, Linux, VxWorks, and other real‑time operating systems.
• Boot Flexibility: Supports boot from CompactFlash or SATA for diverse storage configurations.

Application Scenarios

• Industrial Automation & Control: Factory automation, PLC/DCS systems, motion control, and process monitoring.
• Power & Energy: Substation automation, generator/turbine control, and grid monitoring systems.
• Oil & Gas: Drilling rig control, pipeline monitoring, and offshore platform embedded systems.
• Aerospace & Defense: Avionics processing, radar data handling, military ground control, and rugged vehicle systems.
• Transportation: Railway signaling, marine automation, traction control, and heavy vehicle management.
• Test & Measurement: High‑speed data acquisition, automated test equipment, and industrial inspection systems.
• Telecommunications: Network equipment control, embedded communication servers, and base station processing.
• Heavy Machinery: Mining equipment, construction machinery, and material handling system control.
