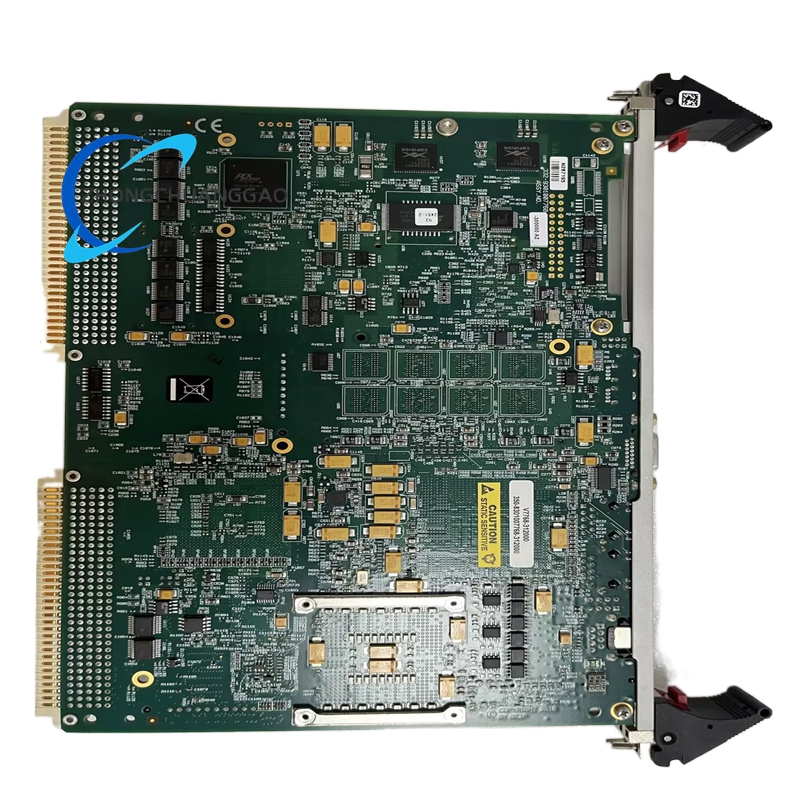

The GE V7768-312000 is a high‑performance, dual‑slot VMEbus single board computer (SBC) designed for industrial control, real‑time processing, and mission‑critical embedded applications. Built on Intel Core 2 Duo or Celeron M processor architecture with the Intel 945GME Express chipset, it delivers robust computing power, extensive I/O connectivity, and industrial‑grade reliability. This module serves as a core processing unit in VME‑based control systems, supporting complex algorithms, data acquisition, communication, and real‑time control tasks in harsh industrial environments. It is fully compliant with VME 6U standards and integrates seamlessly into legacy and modern VME system architectures.
Description
Technical Specifications
Core Processing & Memory
- Processor Options: Intel Core 2 Duo (up to 2.16 GHz) or Intel Celeron M
- Chipset: Intel 945GME Express + ICH7‑M I/O Controller Hub
- Front‑Side Bus: 667 MHz (Core 2 Duo) / 533 MHz (Celeron M)
- System Memory: Up to 2 GB DDR2 SDRAM (dual‑channel)
- Storage Interfaces: 2 × SATA (rear I/O) for mass storage expansion
- Real‑Time Clock: Onboard battery‑backed RTC for timekeeping
- Watchdog Timer: Hardware watchdog for system fault recovery
I/O Interfaces
- Ethernet: 2 × Gigabit Ethernet (GbE) ports (front panel)
- Serial: 1 × RS‑232/422 (front), 1 × RS‑232/422 (rear transition)
- USB: 2 × USB 2.0 (front), 4 × USB 2.0 (rear transition)
- Video: SVGA graphics output (front panel)
- Expansion: 1 × PCI‑X PMC site (for I/O expansion modules)
- VME Bus: Compliant with VMEbus Specification VITA 1‑1994; transparent PCI‑to‑VME bridge
Electrical & Power
- Power Input: 5 VDC / 12 VDC (VME backplane power)
- Power Consumption: Typical 25 W (Core 2 Duo configuration)
- Isolation: Backplane‑level isolation for industrial noise immunity
Physical & Environmental
- Form Factor: Dual‑slot VME 6U (160 mm × 233 mm)
- Weight: 0.85 kg (approx.)
- Operating Temperature: -40°C to +70°C (extended industrial range)
- Storage Temperature: -55°C to +85°C
- Relative Humidity: 5%–95% RH (non‑condensing)
- Vibration: 5g RMS (10–500 Hz)
- Shock: 15g (20 ms half‑sine)
- Certifications: CE, FCC, RoHS compliant
Key Features
- High‑Performance Processing: Dual‑core Intel Core 2 Duo at 2.16 GHz for demanding real‑time applications.
- Rich I/O Connectivity: Dual Gigabit Ethernet, multiple USB/serial ports, and SATA for flexible system integration.
- Industrial Ruggedness: Extended temperature range and robust mechanical design for harsh environments.
- PMC Expansion Slot: Supports custom I/O modules via PCI‑X PMC for application‑specific functionality.
- VME System Compatibility: Transparent PCI‑to‑VME bridge enables operation as system controller or peripheral CPU.
- Integrated Graphics: Onboard SVGA for local HMI and visualization without add‑on cards.
- Reliability Features: Battery‑backed RTC, hardware watchdog, and industrial‑grade components for long‑term operation.
- OS Support: Compatible with Linux, Windows, and real‑time operating systems (RTOS) like VxWorks.
- Low Power Design: Optimized power efficiency for embedded and fanless deployments.
Application Scenarios
- Industrial Automation & Control: PLC/DCS systems, factory automation, and motion control platforms.
- Power Generation & Grid Control: Turbine control, generator protection, and substation automation.
- Oil & Gas Exploration: Drilling rig control, pipeline monitoring, and offshore platform systems.
- Aerospace & Defense: Avionics, radar processing, and military ground control systems.
- Transportation: Railway signaling, traction control, and marine vessel automation.
- Test & Measurement: High‑speed data acquisition, industrial test benches, and automated inspection systems.
- Telecommunications: Network equipment control and embedded communication servers.
- Heavy Machinery: Mining equipment, construction machinery, and material handling systems.
