Product Short Description

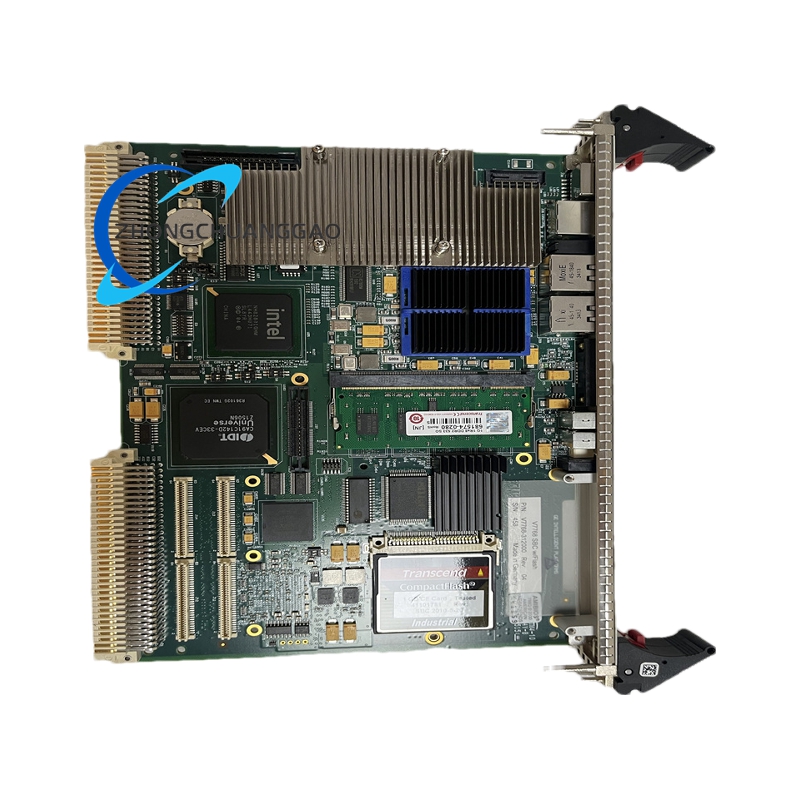

High-performance 6U VME single-board computer built on Intel Core 2 Duo technology, offering 2.16 GHz dual-core processing, rich I/O, and ruggedized options for real-time control and data acquisition .
Technical Specifications
-
Processor: Intel Core 2 Duo 2.16 GHz (Celeron M option for extended-temperature)
-
Cache: 4 MB L2
-
Memory: up to 2 GB DDR2-667 via single SODIMM
-
System & memory bus: 667 MHz
Description
-
Storage:
– 8 GB bootable CompactFlash (onboard socket)
– 2× SATA 150 ports -
Expansion: one PCI-X PMC site plus board-to-board connector for additional PMC237CM1/VPMC carrier (three extra PMC sites)
-
I/O:
– 2× Gigabit Ethernet (front panel)
– 2× RS-232 serial ports
– 4× USB 2.0
– PS/2 keyboard & mouse
– SVGA graphics (Intel 945GME integrated) -
VME interface: Tundra Universe II bridge, VME64x compliant (A32/A24, D64/D32)
-
Power: +5 V @ 12 A max, +12 V @ 2 A max; < 35 W typical
-
Mechanical: 6U dual-slot VME; 233 mm × 160 mm × 20 mm; 0.9 kg
-
Operating temperature: 0 °C – 55 °C commercial / –40 °C – +85 °C ruggedized variant
-
Conformal coating & extended-temperature options available
Functional Features
-
Real-time deterministic control with onboard FPGA and fast interrupt handling
-
EasyRail PMC mounting—PMC boards install without removing carrier assemblies
-
Hot-swappable CompactFlash for OS/application updates in the field
-
Dual Gigabit Ethernet and serial ports for diagnostics and remote maintenance
-
Hardware support for Windows XP, VxWorks, and Linux distributions
Applications
-
Industrial automation: PLC/SCADA compute nodes, motion control back-ends
-
Telecommunications: protocol conversion and traffic monitoring blades
-
Simulation & test: hardware-in-the-loop (HIL) and data-logging systems
-
Aerospace & defense: mission computers and telemetry interfaces
-
Energy: turbine control, substation automation, and smart-grid gateways
