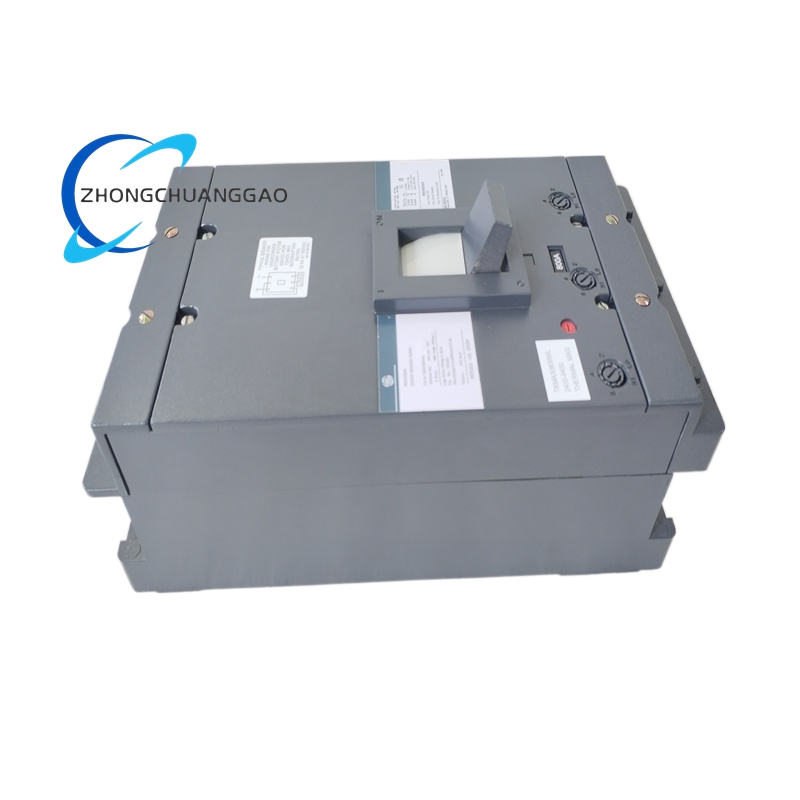

GE TKMA30800WL Molded Case Circuit Breaker

Description

Technical Specifications

Electrical Specifications

• Product Type: 3‑Pole Molded‑Case Circuit Breaker
• Series: TKM Series
• Rated Current (In): 800 Amperes
• Rated Voltage: 600 VAC (3‑phase, 50/60 Hz)
• Frame Size: Industrial‑grade frame for 800A capacity
• Interrupt Rating (Icu/Ics): High short‑circuit breaking capacity for industrial fault conditions
• Trip Unit: WL‑Type thermal‑magnetic trip unit
• Phase Configuration: 3‑Phase, 3‑Wire
• Operating Frequency: 50/60 Hz (universal compatibility)
• Dielectric Strength: Complies with UL, ANSI, and IEEE industrial safety standards
• Isolation Voltage: Rated for industrial low‑voltage system isolation requirements

Physical & Environmental Specifications

• Mounting: Panel‑mount, bolt‑on connection for secure installation
• Dimensions: Compact industrial frame for easy panel integration
• Weight: Heavy‑duty construction for stability in high‑vibration environments
• Operating Temperature: -25°C to +70°C (-13°F to +158°F)
• Storage Temperature: -40°C to +85°C (-40°F to +185°F)
• Relative Humidity: 5–95% (non‑condensing)
• Pollution Degree: 2 (industrial environment)
• Ingress Protection: IP20 (enclosed construction)
• Certifications: UL Listed, cUL Certified, CE Marked, IEC 60947‑2 compliant

Key Features

• 800A High‑Capacity Protection: Delivers robust circuit protection for heavy industrial loads and main power feeders.
• WL‑Type Thermal‑Magnetic Trip Technology: Provides accurate overload protection via thermal elements and ultra‑fast short‑circuit interruption via magnetic trip mechanisms.
• 3‑Pole Three‑Phase Design: Optimized for 600VAC three‑phase industrial power distribution systems.
• High Short‑Circuit Interrupt Rating: Safely clears high‑fault‑current conditions to protect connected equipment and prevent system damage.
• Heavy‑Duty Construction: Industrial‑grade materials and components ensure long‑term reliability in harsh environments.
• Bolt‑On Mounting: Secure, permanent installation for high‑vibration industrial settings.
• Visual Trip Indication: Integrated trip flag for quick identification of fault conditions.
• Wide Temperature Operation: Performs reliably in extreme industrial and commercial environments.
• Maintenance‑Free Design: No periodic calibration required for standard operation.
• Global Standard Compliance: Meets strict international safety and performance requirements for worldwide deployment.
