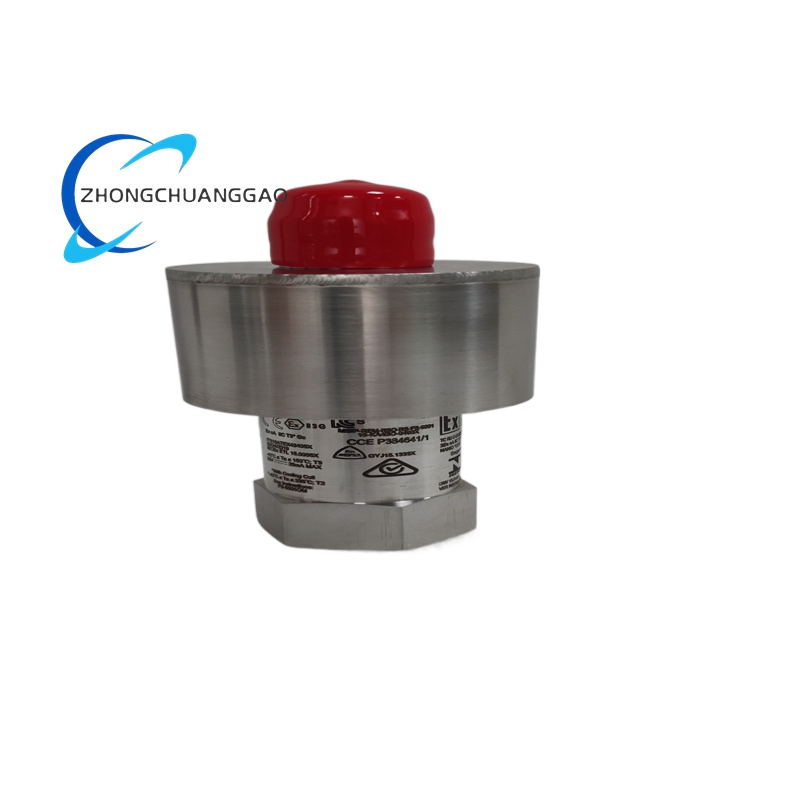

GE RS-FS-9001 Flame Detector

Description

• Operating Temperature Range: -20°C to +70°C
• Storage Temperature Range: -40°C to +85°C
• Protection Class: IP54/IP65 (environment-dependent)
• Dimensions: Standard modular design (e.g., 100 mm × 100 mm × 50 mm for base models)
• Weight: Approximately 0.8–1.2 kg
• Signal Output: Current/voltage signals compatible with GE combustion control systems
• Mounting Options: Flange installation or threaded fixation

Functional Characteristics

• High Reliability: Industrial-grade design withstands harsh combustion environments, ensuring long-term stability.
• Rapid Detection: Sub-100 ms response time enables immediate flame state identification, critical for safety protocols.
• Durability: High-temperature-resistant materials and optimized optics extend service life, reducing replacement frequency.
• Modularity: Field-replaceable components minimize downtime during maintenance.
• Compatibility: Seamlessly integrates with GE combustion management systems, enhancing overall reliability.
• Multi-Signal Output: Supports current/voltage signals for flexible system integration.
• Wide Temperature Tolerance: Operates reliably across extreme thermal ranges (-20°C to +70°C).

Application Scenarios

• Energy and Petrochemical:
  • Monitors flames in gas turbines, refinery equipment, and chemical plants to prevent fires/explosions.
• Steel and Metallurgy:
  • Tracks flame states in blast furnaces, steelmaking furnaces, and heat treatment systems to ensure process continuity.
• Power Generation:
  • Safeguards boiler operations in thermal power plants by detecting combustion anomalies.
• Industrial Combustion:
  • Applied in industrial kilns, incinerators, and other flame-dependent processes for safety and efficiency.
• Renewable Energy:
  • Supports flame monitoring in biomass or waste-to-energy plants to optimize combustion control.

Additional Notes

• The RS-FS-9001’s SiC sensor exhibits high sensitivity to UV wavelengths, enabling accurate flame detection even in complex environments with steam or low-NOx burners.
• Its modular design allows customization for specific applications, such as adjusting spectral detection ranges or output protocols.
• The detector complies with international safety standards (e.g., ETL, ATEX, IECEx), making it suitable for hazardous (explosive) zones.
• Regular firmware updates and technical support from GE ensure alignment with evolving industry requirements.
