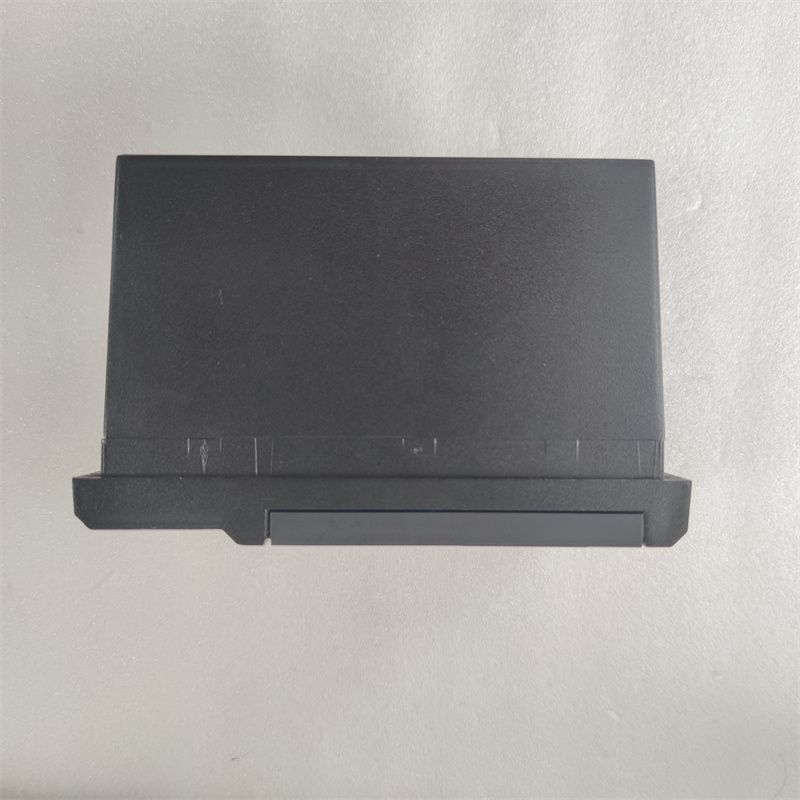

GE MMII-PD-1-2-120 Motor Management and Protection Module

Description

• Communication Protocols: RS485 / Modbus RTU (optional Ethernet)
• Display: LED digital display + status indicators
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -40°C to +85°C
• Humidity Range: 5% to 95% non-condensing
• Enclosure Material: Industrial ABS / metal bezel panel
• Dimensions (W × H × D): 150 × 190 × 75 mm
• Weight: Approximately 2.0 kg
• Mounting Options: Cabinet-mounted / panel-mounted
• Protection Class: IP20 (IP54 optional for front panel)
• Certifications: UL, CSA, CE, IEC standards compliant

Functional Characteristics

• Comprehensive Protection:
  • Overload, short circuit, ground fault, phase imbalance, over-temperature, locked rotor, under-voltage, and over-voltage protection.
• Intelligent Control:
  • Supports local and remote motor start/stop control, sequential starting, and automatic restart logic.
• Data Monitoring and Recording:
  • Real-time monitoring of motor operating current, temperature, and fault history for predictive maintenance.
• Communication Capabilities:
  • Compatible with Modbus RTU / RS485 for integration into SCADA/DCS systems, enabling remote configuration and monitoring.
• User-Friendly Interface:
  • Features an LCD for intuitive display of motor status and parameters, simplifying operation and maintenance.
• Modular Design:
  • Flexible configuration options to meet diverse application requirements.
• Robust Construction:
  • Designed for long-term reliability in high-demand industrial environments.

Application Scenarios

• Industrial Automation:
  • Widely used in motor control systems for pumps, fans, compressors, and conveyor belts, ensuring safe and efficient operation.
• Building Automation:
  • Integrates into building management systems (BMS) for controlling HVAC motors and other electrical equipment.
• Water and Wastewater Treatment:
  • Protects motors in pump stations and filtration systems, preventing downtime and reducing maintenance costs.
• Oil and Gas:
  • Ensures reliable motor operation in upstream and midstream applications, such as wellhead control and pipeline monitoring.
• Power Generation:
  • Manages motor-driven equipment in power plants, including auxiliary systems and cooling towers.
• Manufacturing:
  • Enhances production line efficiency by providing precise motor control and protection in various manufacturing processes.
