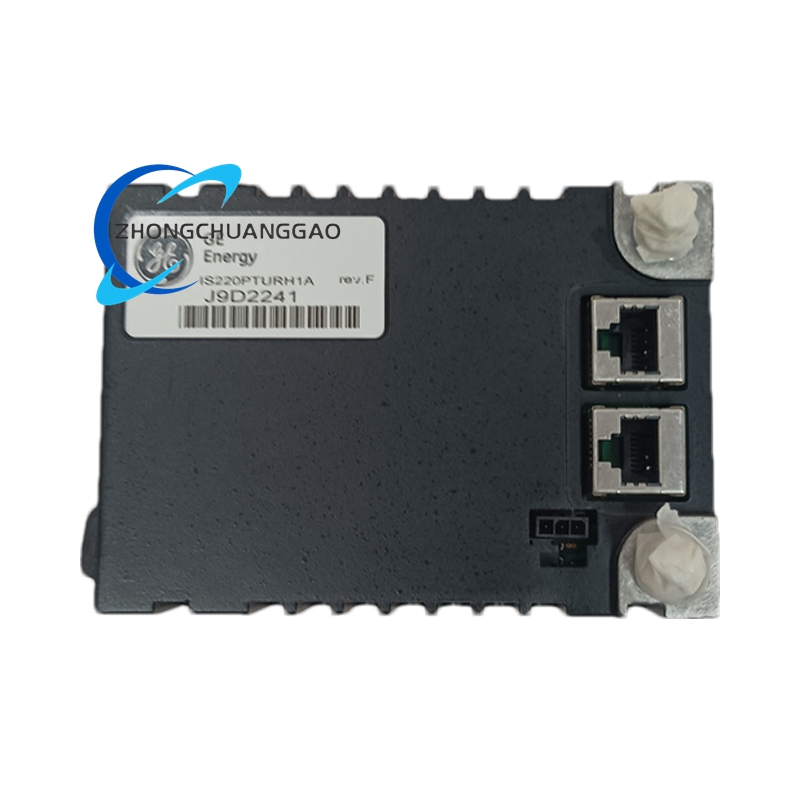

Product Short Description
Technical Specifications
-
Processor: Freescale MPC8349, 667 MHz
-
Operating System: QNX Neutrino real-time OS
-
Memory: On-board Flash and RAM for firmware, parameters, and data buffering
-
Power Input: 24 V DC nominal (18–36 V range), 12 W consumption
-
Operating Temperature: –30 °C to +65 °C
-
Speed Inputs: Four passive magnetic speed sensors, sensitivity down to 2 RPM for zero-speed detection
-
Ethernet: Dual 10/100 Mbps full-duplex ports for IONet communication with Mark VIe controllers
Description
-
Output Connector: DC-62 pin to terminal board
-
Compliance: Conformal-coated PCB, industrial-grade shock & vibration ratings
-
Dimensions: Approx. 82.6 mm × 41.9 mm × 121 mm
Functional Features
-
Primary Trip Protection: Configurable overspeed and zero-speed logic triggers emergency shutdown to prevent catastrophic failure
-
Redundant Support: Operates in Simplex or TMR (Triple Modular Redundancy) configurations for high-availability systems
-
Auto-Configuration: Firmware and parameters download automatically from the controller, eliminating manual setup
-

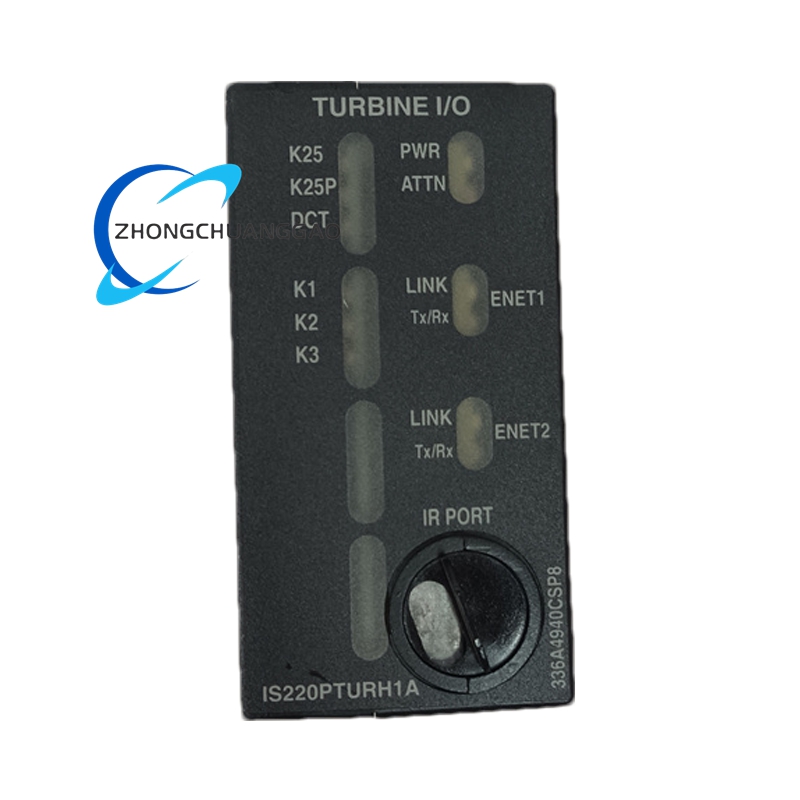

Real-Time Diagnostics: Front-panel LEDs, internal temperature sensor, and continuous self-tests report status to Toolbox ST
-
Hot-Swap Ready: VME64x-compliant insertion/removal without system shutdown
Application Scenarios
-
Power Generation: Overspeed protection for steam and gas turbines in baseload and peaking plants
-
Oil & Gas: Safety shutdown on offshore platforms, refineries, and pipeline compression stations
-
Industrial Manufacturing: Turbine-driven compressors and pumps in steel, paper, and chemical facilities
-
Retrofit & Modernization: Drop-in upgrade for legacy Mark V or Mark VI systems requiring enhanced network connectivity and diagnostics
