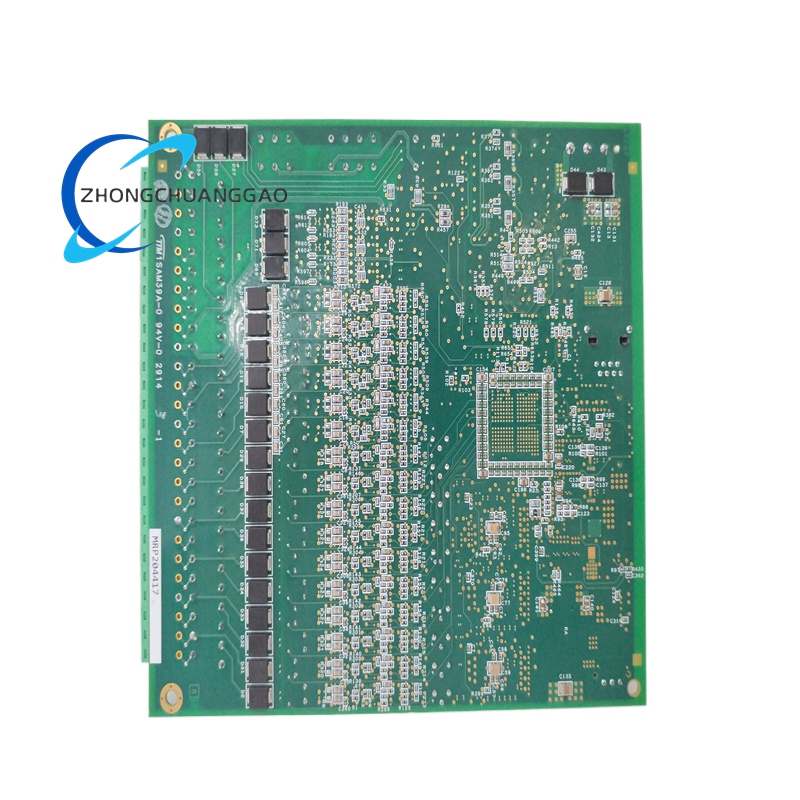

GE IS200SCSAS1ADB

Technical Specifications

• Input Channels: Multiple analog input channels supporting various signal types, including voltage (0-10V, ±10V) and current (4-20mA).
• Output Channels: Configurable analog output channels for signal transmission and control purposes.
• Resolution: High-resolution analog-to-digital conversion (ADC) with up to 16-bit precision for accurate signal representation.
• Sampling Rate: Fast sampling rate to capture dynamic signal changes in real-time, ensuring timely response to process variations.
• Input Impedance: High input impedance to minimize signal loading and ensure accurate measurement.
• Isolation: Galvanic isolation between input and output channels to prevent electrical interference and enhance system safety.
• Operating Temperature Range: -40°C to +70°C, suitable for harsh industrial environments.
• Power Supply: 24V DC power input with low power consumption for energy-efficient operation.
• Dimensions: Compact design for easy integration into control panels and enclosures.
• Weight: Lightweight construction for flexible installation and mounting.

Functional Features

• Precise Signal Conditioning: Provides accurate amplification, filtering, and isolation of analog signals to ensure reliable data acquisition.
• Flexible Signal Support: Handles a wide range of analog signal types, making it versatile for various industrial applications.
• High-Speed Data Acquisition: Fast sampling rate enables real-time monitoring and control of dynamic processes.
• Robust Isolation: Galvanic isolation protects connected devices from electrical noise and ground loops, enhancing system stability.
• Easy Configuration: User-friendly interface and software tools for simple setup and calibration of input/output parameters.
• Diagnostics and Monitoring: Built-in diagnostic features for continuous module health monitoring and fault detection.
• Compact and Durable: Small size and rugged construction withstand vibrations, shocks, and extreme temperatures.

Application Scenarios

• Turbine Control Systems: Used in power generation plants for precise monitoring and control of gas and steam turbines, ensuring optimal performance and efficiency.
• Industrial Automation: Integral to manufacturing lines, robotic arms, and packaging machinery for accurate position feedback, pressure measurement, and process control.
• Oil and Gas Industry: Facilitates the monitoring and control of drilling equipment, pipeline pressure, and flow rates in upstream and downstream operations.
• Renewable Energy: Applied in wind turbine control systems for pitch control, yaw adjustment, and power optimization, enhancing energy generation efficiency.
• Water Treatment: Monitors and controls chemical processes, pump operations, and water quality parameters in wastewater treatment plants.
• Process Control Systems: Provides reliable analog signal processing for various industrial processes, including chemical manufacturing, food processing, and pharmaceutical production.
