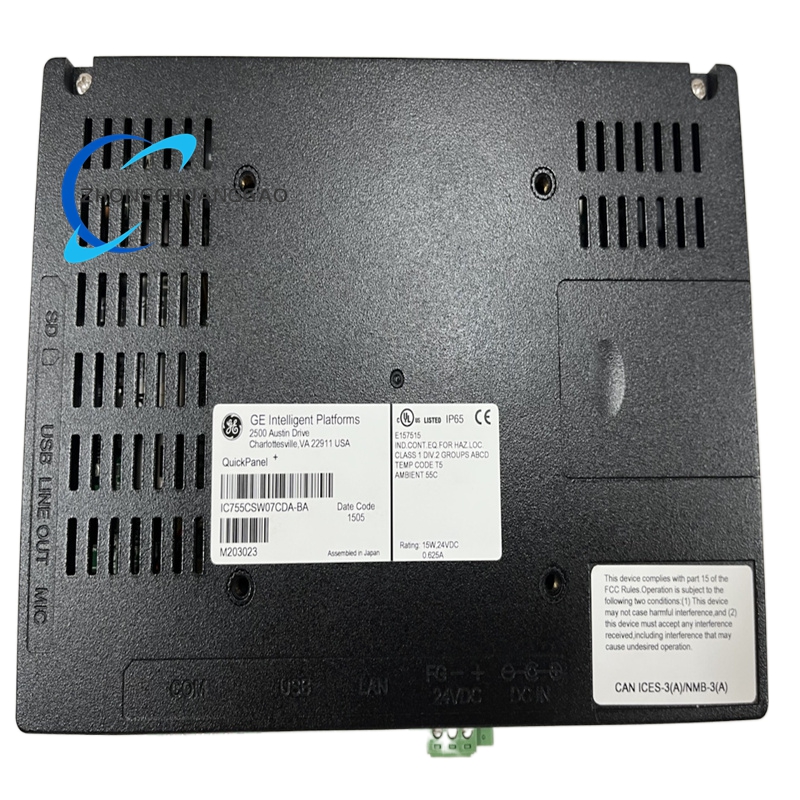

GE IC755CSW07CDA Industrial Human-Machine Interface (HMI) Terminal

Description

• Processor: Equipped with an Intel XScale PXA300 processor clocked at 255 MHz for smooth performance.
• Memory: 32 MB of RAM for efficient multitasking and data handling.
• Storage: 64 MB flash memory for storing application programs and data.
• Operating System: Pre-installed with Windows Compact Embedded 7 for a user-friendly configuration environment.
• Communication Interfaces:
  • Ethernet port (10/100 Mbps) for high-speed network connectivity.
  • RS485 port for serial communication with other industrial devices.
  • USB port for data transfer and peripheral connectivity.
• Power Supply: Requires +24 VDC input voltage, allowing ±20% fluctuation, and uses a 3-pin Phoenix connector. Maximum power consumption is 15 watts.
• Cooling Method: Natural convection cooling for reliable operation without fans or moving parts.
• Operating Temperature: 0°C to 55°C for stable performance in varying industrial environments.
• Relative Humidity: Up to 85% (non-condensing) for operation in humid conditions.
• Enclosure Rating: IP20 (can be adapted to higher ratings based on installation requirements).
• Mounting Options: Supports panel mounting or VESA 75 standard bracket mounting for flexible installation.

Functional Features

• High-Resolution Display: Provides clear and detailed visual information for accurate monitoring and control.
• Responsive Touch Interface: Enables intuitive and efficient operator interaction with the system.
• Durable Design: Built to withstand harsh industrial conditions, including dust, vibration, and shock.
• Advanced Processing Capabilities: Handles complex control tasks and data processing efficiently.
• Multiple Communication Interfaces: Facilitates seamless integration with various industrial devices and networks.
• User-Friendly Operating System: Offers a familiar and intuitive interface for easy configuration and management.
• Energy-Efficient Operation: Low power consumption for cost-effective and sustainable operation.

Application Scenarios

• Manufacturing Automation: Controls and monitors production lines, robots, and automated workstations to improve efficiency and quality.
• Process Control: Manages industrial processes in sectors such as chemical, petroleum, and food and beverage production for stable and efficient operation.
• Power Generation and Distribution: Supervises power plants, substations, and distribution networks to ensure reliable power supply.
• Building Automation: Integrates with building management systems to control lighting, HVAC, and security systems for intelligent and energy-efficient management.
• Water Treatment: Monitors and controls water treatment processes to ensure compliance with water quality standards and optimize resource usage.
• Transportation Systems: Manages traffic signals, railway signals, and airport ground support equipment to enhance safety and efficiency.
• Mining and Metals: Controls mining equipment, conveyor systems, and smelting processes to improve productivity and safety.
