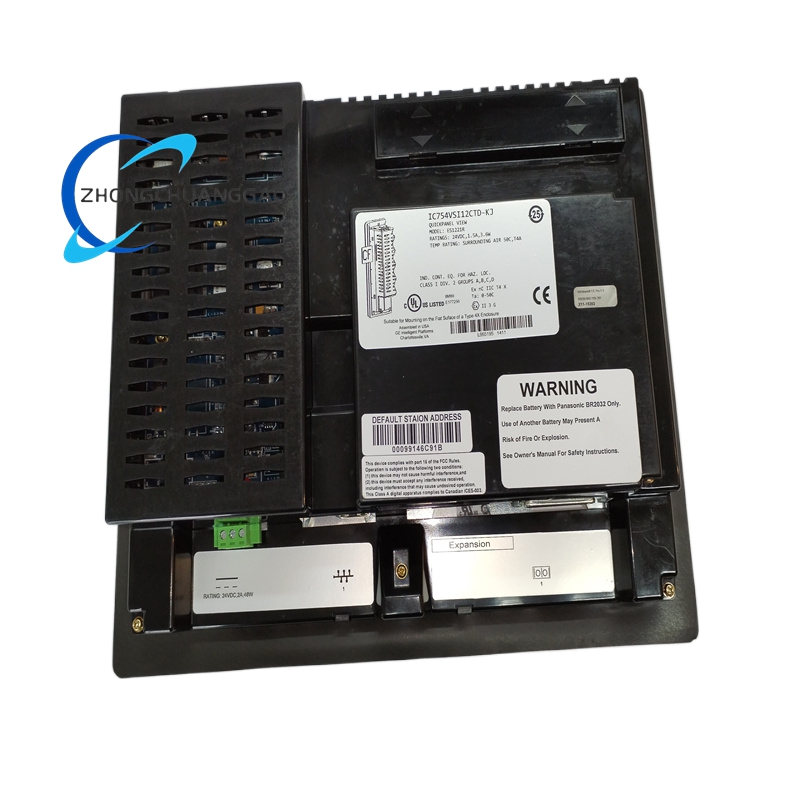

GE IC754VSI12CTD QuickPanel Human-Machine Interface (HMI) Terminal

Description

• Processor: Intel XScale PXA300 processor clocked at 255 MHz for smooth performance.
• Memory: 32 MB RAM and 32 MB flash memory for efficient multitasking and data storage.
• Operating System: Pre-installed with Microsoft Windows Compact Embedded (CE) for a user-friendly configuration environment.
• Communication Interfaces:
  • Ethernet port (10/100 Mbps) for high-speed network connectivity.
  • RS232/RS485 combination port for serial communication with other industrial devices.
  • USB port for data transfer and peripheral connectivity.
• Power Supply: 24 VDC external power supply with a power consumption of less than 48W.
• Operating Temperature: 0°C to 55°C for stable performance in varying industrial conditions.
• Relative Humidity: Up to 85% (non-condensing) for operation in humid environments.
• Enclosure Rating: IP20 (can be adapted to higher ratings based on installation requirements).
• Mounting Options: Supports panel mounting or VESA 75 standard bracket mounting for flexible installation.
• Weight: Approximately 5.2 pounds (2.36 kilograms) for easy handling and deployment.

Functional Features

• High-Resolution Display: Provides clear and detailed visual information for accurate monitoring and control.
• Responsive Touch Interface: Enables intuitive and efficient operator interaction with the system.
• User-Friendly Operating System: Offers a familiar and intuitive interface for easy configuration and management.
• Multiple Communication Interfaces: Facilitates seamless integration with various industrial devices and networks.
• Advanced Processing Capabilities: Handles complex control tasks and data processing efficiently.
• Durable Design: Built to withstand harsh industrial conditions, including dust, vibration, and shock.
• Memory Expansion Slot: Allows for additional memory to meet more complex application needs.
• Energy-Efficient Operation: Low power consumption for cost-effective and sustainable operation.

Application Scenarios

• Manufacturing Automation: Controls and monitors production lines, robots, and automated workstations to improve efficiency and quality.
• Process Control: Manages industrial processes in sectors such as chemical, petroleum, and food and beverage production for stable and efficient operation.
• Power Generation and Distribution: Supervises power plants, substations, and distribution networks to ensure reliable power supply.
• Building Automation: Integrates with building management systems to control lighting, HVAC, and security systems for intelligent and energy-efficient management.
• Water Treatment: Monitors and controls water treatment processes to ensure compliance with water quality standards and optimize resource usage.
• Transportation Systems: Manages traffic signals, railway signals, and airport ground support equipment to enhance safety and efficiency.
• Mining and Metals: Controls mining equipment, conveyor systems, and smelting processes to improve productivity and safety.
