Product Short Description
1. Technical Specifications
• Display: 6-inch color TFT touchscreen, 800 × 480 pixels (WVGA)
• Backlight: LED, 50 000 h half-brightness life
• Touch: 4-wire resistive, 1 million actuations
• Processor: ARM9-based 32-bit CPU, 400 MHz
• Memory: 64 MB RAM, 128 MB flash for applications & logs
• Communications:
– 10/100 Mbit Ethernet (RJ-45)
– RS-232 (DB-9) and RS-485 (screw-terminal) serial ports
• Expansion: USB-A host (flash drive, keyboard, barcode scanner), SD card slot
• Power: 12–30 VDC, 15 W typical
• Environmental:
– Operating: 0 °C to +50 °C, 10 %–90 % RH non-condensing
– Storage: −20 °C to +70 °C
• Mechanical: Panel-mount bezel, IP65 front, IP20 rear, 187 mm × 141 mm cut-out, 1.2 kg
Description
2. Functional Features
• QuickPanel+ runtime pre-installed supporting GE’s Proficy Machine Edition or CIMPLICITY HMI
• Real-time data trending, alarm management, recipe handling, and audit trails
• Web-client mode for remote viewing on PCs, tablets, or smart phones
• Dual-driver capability: simultaneous drivers for GE, Modbus, OPC UA, and EtherNet/IP devices
• Secure file transfer via FTP/SFTP and role-based user access
• Automatic brightness dimming and screen-saver to extend backlight life
• QuickPanel+ runtime pre-installed supporting GE’s Proficy Machine Edition or CIMPLICITY HMI
• Real-time data trending, alarm management, recipe handling, and audit trails
• Web-client mode for remote viewing on PCs, tablets, or smart phones
• Dual-driver capability: simultaneous drivers for GE, Modbus, OPC UA, and EtherNet/IP devices
• Secure file transfer via FTP/SFTP and role-based user access
• Automatic brightness dimming and screen-saver to extend backlight life
3. Application Scenarios
• Packaging lines for food & beverage – operator set-ups and fault diagnostics
• Automotive assembly cells – torque-tool integration and quality traceability
• Water & wastewater treatment – pump status, flow trends, alarm acknowledgment
• Pharmaceutical batch reactors – recipe selection, electronic signatures, CFR 21 Part 11 compliance
• Machine-tool CNC retrofits – cycle start/stop, tool offset entry, production counters
• Packaging lines for food & beverage – operator set-ups and fault diagnostics
• Automotive assembly cells – torque-tool integration and quality traceability
• Water & wastewater treatment – pump status, flow trends, alarm acknowledgment
• Pharmaceutical batch reactors – recipe selection, electronic signatures, CFR 21 Part 11 compliance
• Machine-tool CNC retrofits – cycle start/stop, tool offset entry, production counters
4. Ordering Package

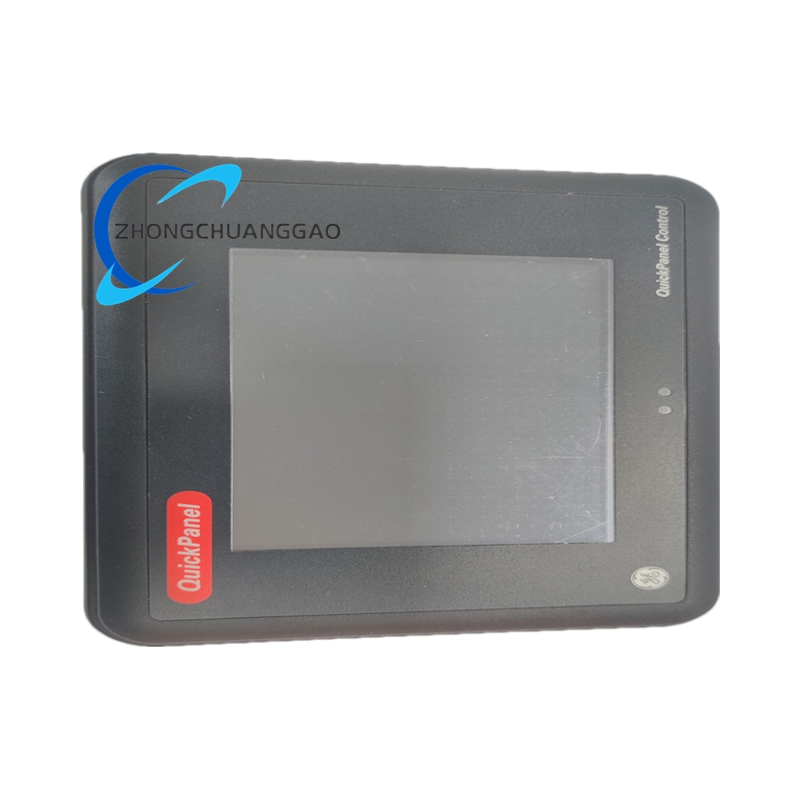

• IC754CSX06CTD terminal
• Panel-mount gasket and stainless-steel clips
• 2 m Ethernet patch cable
• Quick-start guide and Proficy Machine Edition demo project CD
• Factory calibration certificate and CE/UL documentation
• IC754CSX06CTD terminal
• Panel-mount gasket and stainless-steel clips
• 2 m Ethernet patch cable
• Quick-start guide and Proficy Machine Edition demo project CD
• Factory calibration certificate and CE/UL documentation
