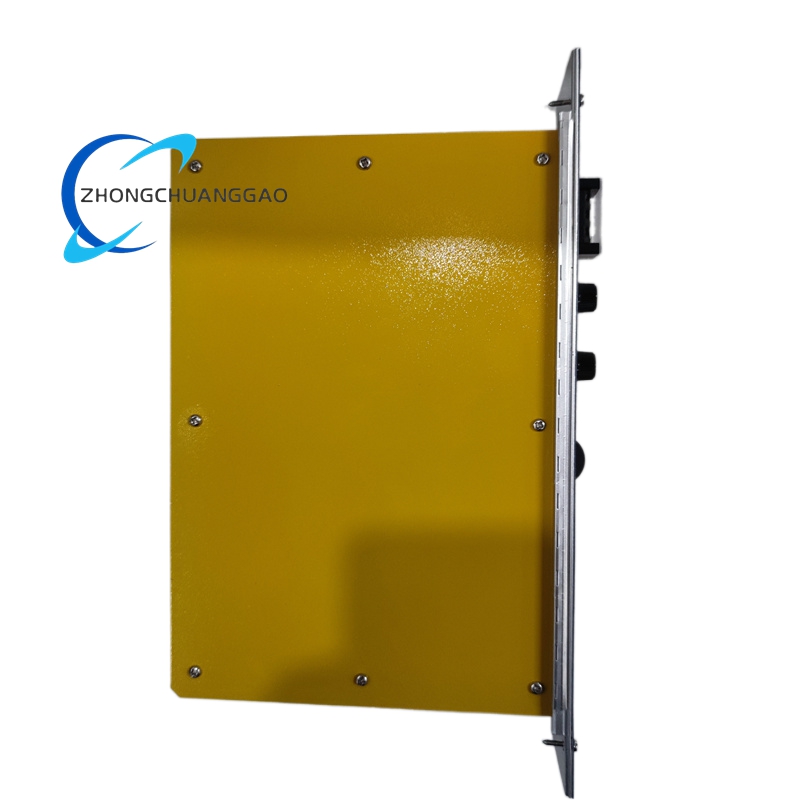

GE IC698PSA350 PACSystems RX7i High-Capacity Power Supply Module

Description

• Maximum Input Power:
  • Typical: 440 W
  • Maximum: 500 W
• Output Power:
  • Total Maximum Output: 350 W
  • +5 VDC: 0-60 A
  • +12 VDC: 0-12 A
  • -12 VDC: 0-4 A
• Isolation Rating: 1500 VDC between all outputs
• Operating Temperature: 0-60°C
• Storage Temperature: -40°C to +85°C
• Dimensions: Fits into RX7i chassis slot 0 (leftmost position)
• Weight: Approximately 0.5 kg
• Cooling: Forced air cooling via a 70 CFM fan at the bottom of the chassis

Functional Features

• Dual Input Support: Accepts both AC and DC input voltages, enhancing flexibility for different power sources.
• High Output Capacity: Provides a total of 350 W of power across three output voltages (+5 VDC, +12 VDC, -12 VDC) to meet the demands of various industrial components.
• Multiple Protection Mechanisms:
  • Overcurrent protection
  • Overvoltage protection
  • Electronic short-circuit protection
  • Overtemperature protection
  • Airflow protection (via built-in sensor)
• LED Indicators:
  • “Field Present” LED: Indicates proper module installation and power-on status.
  • “Output OK” LED: Shows if output voltages are within normal ranges.
  • “Over Temperature” LED: Alerts when the module exceeds critical temperature thresholds or detects airflow interruption.
• Redundant Design: Supports hot-standby redundancy configurations to enhance system reliability and minimize downtime.
• Wide Temperature Tolerance: Operates reliably in extreme temperatures, suitable for harsh industrial settings.

Application Scenarios

• Industrial Automation Control: Powers PACSystems RX7i controllers, I/O modules, and communication modules in manufacturing plants, ensuring stable operation of production lines, robots, and automated workstations.
• Process Control: Manages industrial processes in sectors such as chemical, petroleum, and power generation, maintaining stable power supply for critical equipment.
• Power Industry: Supervises power distribution, generation, and substation equipment, ensuring continuous and reliable grid operation.
• Building Automation: Controls lighting, HVAC, and security systems in large commercial buildings, enabling intelligent and energy-efficient management.
• Water Treatment: Monitors and controls water treatment processes, ensuring compliance with water quality standards through stable power supply.
• Traffic Management: Powers traffic signal controllers, cameras, and vehicle detection systems in intelligent transportation systems, enhancing traffic flow and safety.
• Environmental Monitoring: Supports remote data acquisition and transmission in environmental monitoring stations, ensuring timely and accurate information collection.
