Product Short Description

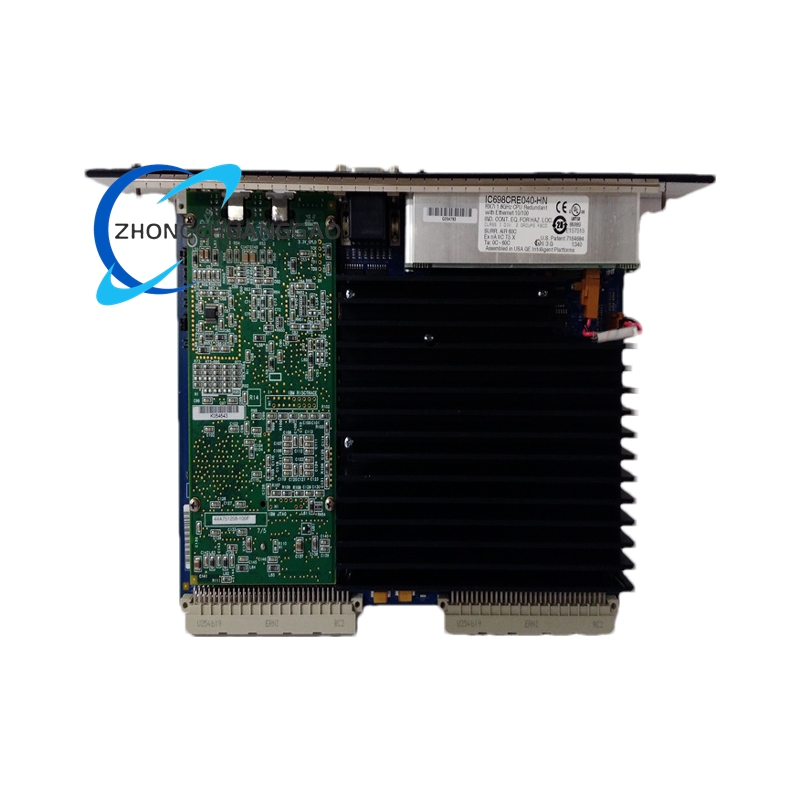

Central Processing Unit for the PACSystems RX7i platform, integrating a high-speed Pentium-M processor, redundant Ethernet, and extensive serial connectivity to deliver deterministic control and data acquisition in demanding industrial environments.
Technical Specifications
-
Processor: Pentium M 1.8 GHz (2 GHz option)
-
Memory: 64 MB RAM, 64 MB non-volatile user Flash (128 MB option)
-
Power: +5 VDC 6.8 A, +12 VDC 0.003 A, –12 VDC 0.003 A; total 20 W typical
-
Operating temperature range: –40 °C to +70 °C
-
Dimensions: 115 mm × 75 mm × 35 mm
-
Weight: 0.25 kg
-
Enclosure: open-frame, IP20
Description
Communication Interfaces
-
Ethernet: two RJ45 10/100 Mb/s ports supporting Modbus TCP/IP, SRTP, EGD, and SNTP time-sync
-
Serial: RS-232 and RS-485 (Modbus RTU Slave, SNP, Serial I/O)
-
USB: one USB 2.0 host for programming and firmware update
-
VME64 backplane: 40 MB/s peak transfer, 64-bit data path
Functional Features
-
Hot-standby redundancy: automatic switch-over < 1 ms for CPU fault
-
Real-time clock: battery-backed, drift ≤ ±2 s/day
-
Scan rate: 0.024 ms per 1 000 Boolean contacts/coils
-
Web/FTP server: supports up to 16 concurrent connections for remote diagnostics
-
Programming: Ladder Diagram, C, Structured Text, Function Block Diagram via Proficy Machine Edition or Logic Developer
-
I/O support: full compatibility with 90-70 discrete and analog modules over VME64 backplane
Application Scenarios
-
Manufacturing: automotive assembly lines, packaging machines, robotics control
-
Process industries: chemical, pharmaceutical, food & beverage batch and continuous processes
-
Power generation: turbine control, generator protection, substation automation
-
Infrastructure: water treatment, HVAC, material handling systems
